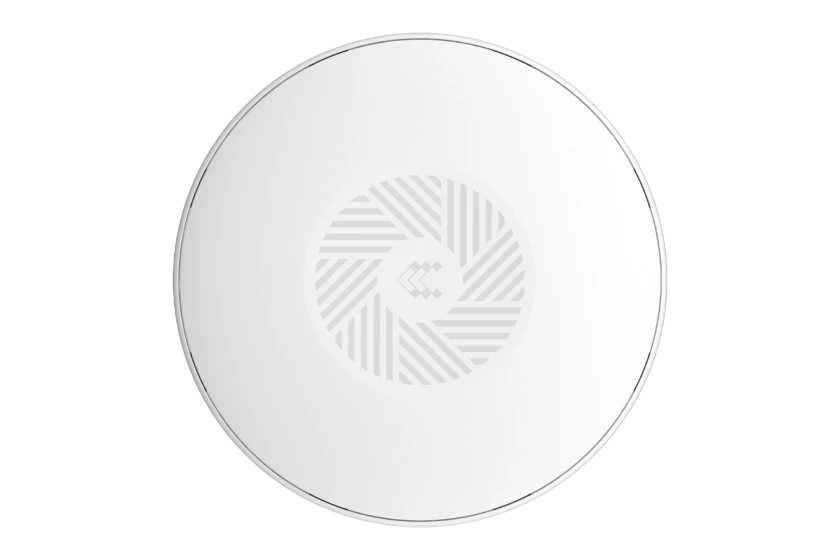

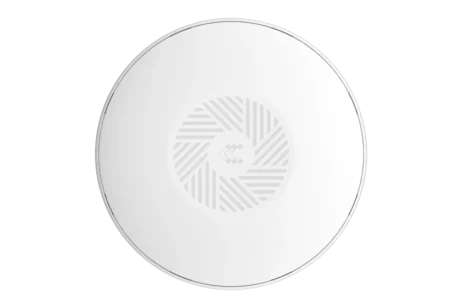

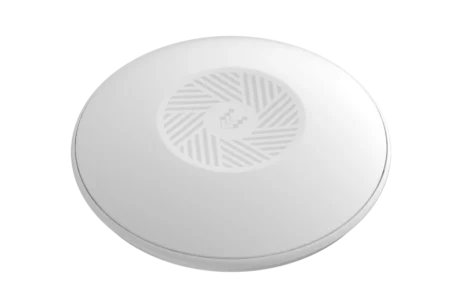

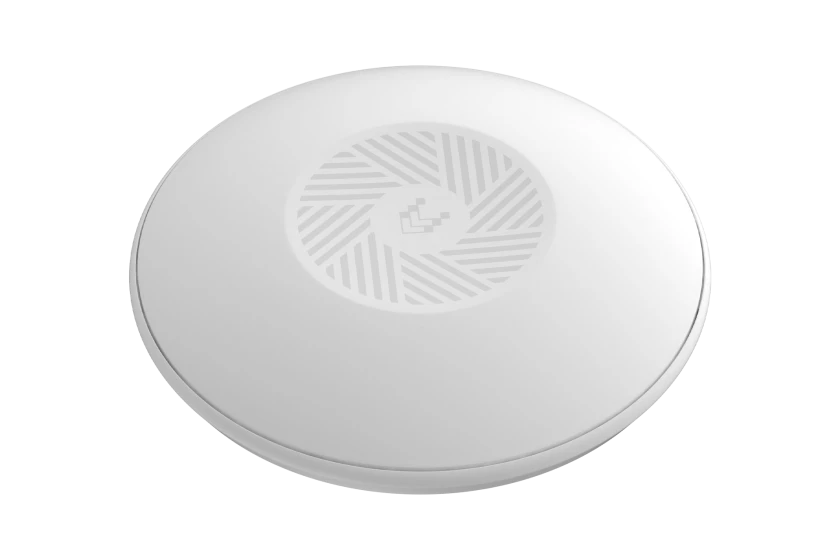

Wi-Fi 5 ACCESS POINT
WIRELESS
- Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
- Wi-Fi security WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, isolate clients
- SSID/ESSID ESSID stealth mode (Hide SSID)
- Wi-Fi users Up to 100 simultaneous connections
- Wireless mesh/roaming Fast roaming (802.11r)
- Wireless MAC filter Whitelist, blacklist
- Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information.
ETHERNET
-
Ethernet 1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
-
Network protocols TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP client, SMNP
SECURITY
- Authentication SSH key based, HTTPS, CLI, IP & Login attempts block
- VLAN Tag-based VLAN separation
MONITORING & MANAGEMENT
- WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
- FOTA Firmware update from server, automatic notification
- SSH SSH (v1, v2)
- JSON-RPC Management API over HTTP/HTTPS
- RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
- CPU MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc
- RAM 256 MB, DDR3
- FLASH storage 16MB, SPI NOR Flash
FIRMWARE / CONFIGURATION
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA Update FW
- RMS Update FW/configuration for multiple devices at once
- Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMISATION
- Operating system RutOS (OpenWrt based Linux OS)
- Supported languages Busybox shell, Lua, C, C++
- Development tools SDK package with build environment provided
- GPL customization You can now create your own custom firmware and web page application, with some examples to make the creation process easier; and brand our firmware by changing colours, logos, and so on to fit your or your clients’ needs.
POWER

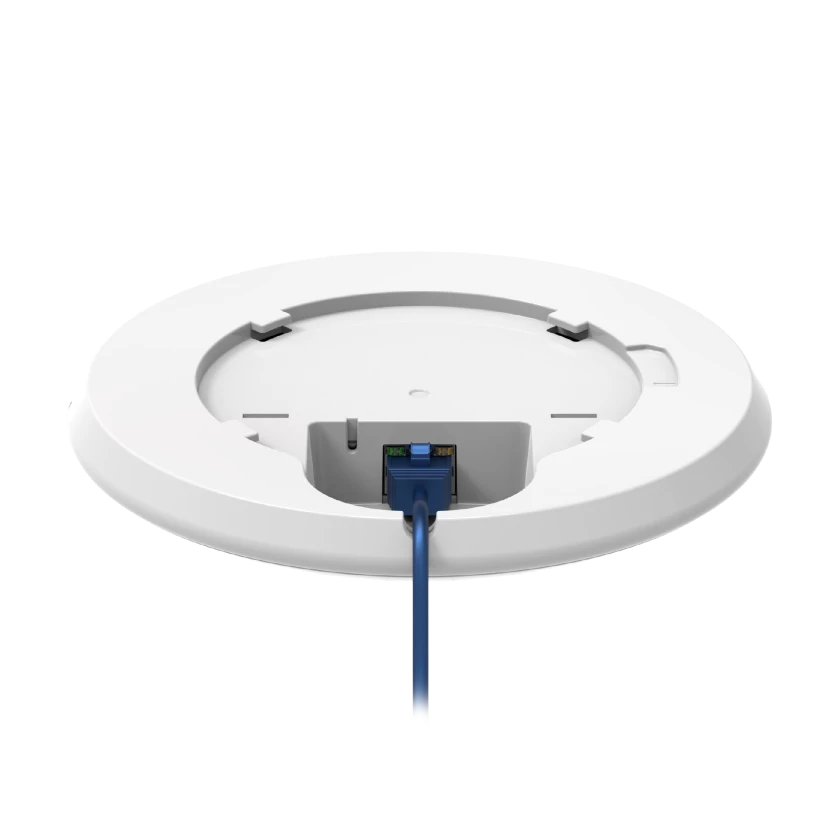

- Connector RJ45 Socket
- Input voltage range 44.0 – 57.0 V
- PoE standards 802.3af PoE Class 1
- Power consumption Idle: < 4 W / Max: < 5.5 W
PHYSICAL INTERFACES

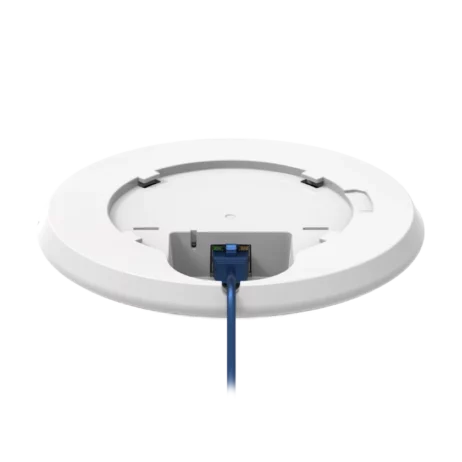

- Ethernet 1 x RJ45 port, 10/100/1000 Mbps

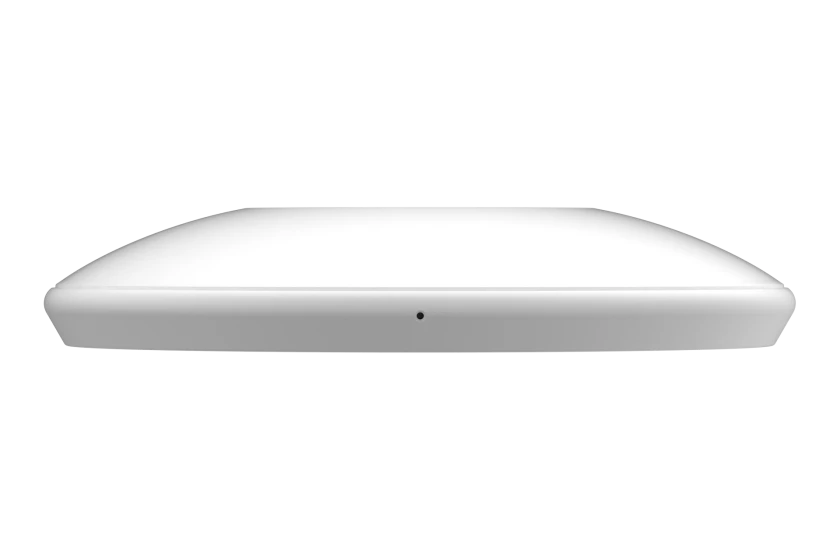

- Status LEDs 1 x Power LED (can be turned off from web-UI)
- Antennas 2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi

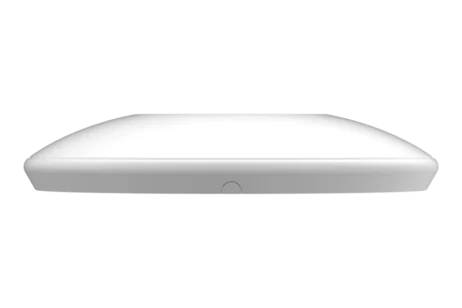

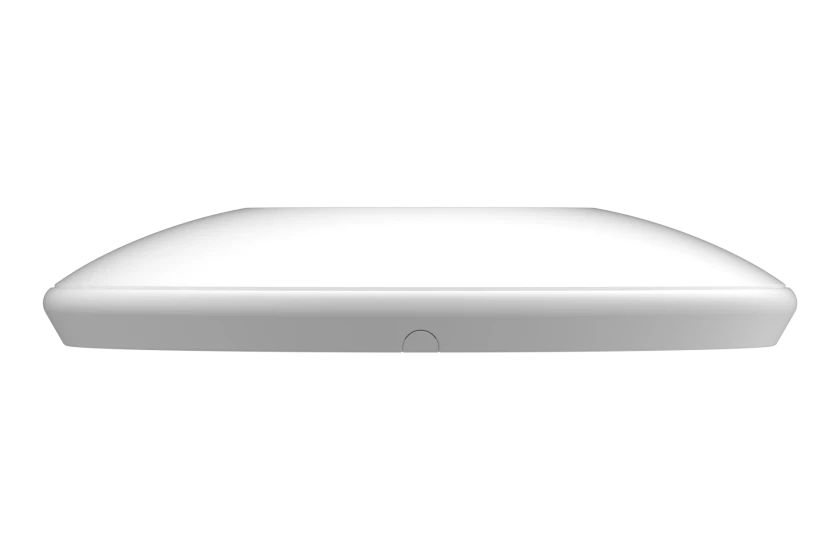

- Reset Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
- Casing material UV stabilized plastic
- Dimensions Ø 158 mm x 30 mm
- Weight 190 g

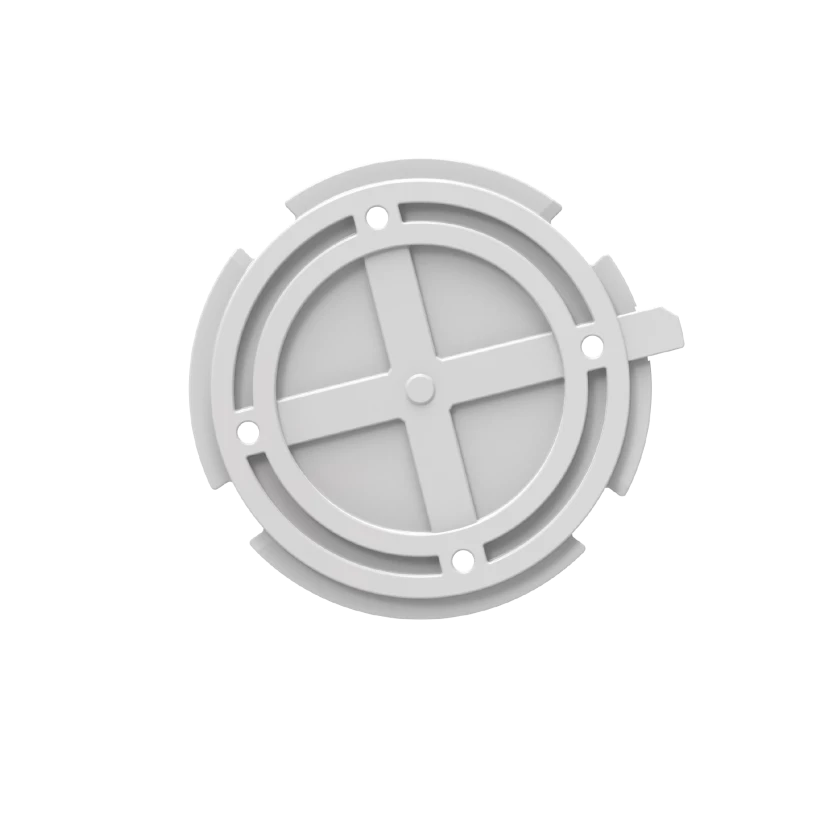

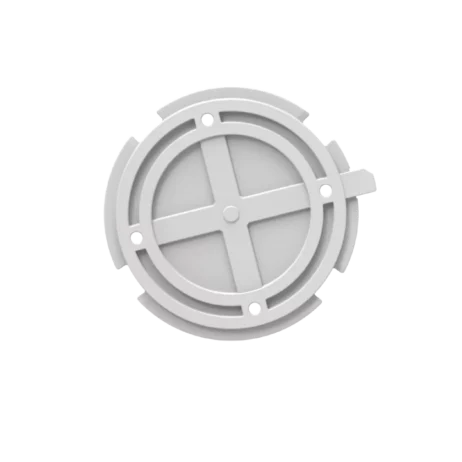

- Mounting options AP Mounting Bracket (for ceiling mount)
OPERATING ENVIRONMENT
- Operating temperature -40 °C to 75 °C
- Operating humidity 10% to 90% non-condensing
- Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
- Regulatory CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, WEEE
EMC EMISSIONS & IMMUNITY
- Standards EN 55032:2015+A11:2020
- EN 55035:2017+A11:2020
- EN 61000-3-3:2013+A1:2019+A2:2021
- EN IEC 61000-3-2:2019+A1:2021
- EN 301 489-1 V2.2.3
- EN 301 489-17 V3.2.4
- ESD EN 61000-4-2:2009
- Radiated Immunity EN IEC 61000-4-3:2020
- EFT EN 61000-4-4:2012
- Surge protection EN 61000-4-5:2014+A1:2017
- CS EN 61000-4-6:2014
- DIP EN IEC 61000-4-11:2020
RF
-
Standards EN 300 328 V2.2.2; EN 300 893 V2.1.1; EN 300 440 V2.2.1
SAFETY
- Standards IEC 62368-1:2018
- EN IEC 62368-1:2020+A11:2020
- EN IEC 62311:2020
