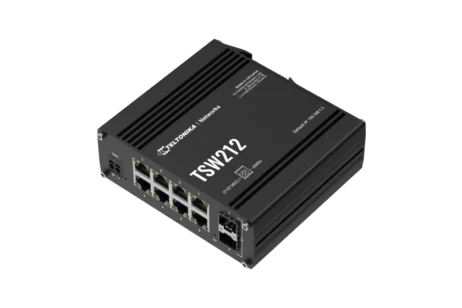

MANAGED SWITCH
L2 with additional L3 features for enhanced management and control SFP
8 x port switch with 2 x SFP ports for fibre optic communication
PROFINET & MORE
Supports Profinet for automated data processing alongside other protocols, like EtherNet/IP and MRP
TSWOS
Teltonika Networks OS for switches, intuitively designed for infinite configurations
ETHERNET
- Fibre 2 x SFP ports
- IEEE 802.3 series standards IEEE 802.1p, IEEE 802.1Q, 802.3az
- ETH Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
SERVICES
- EtherNet/IP Yes
- Profinet (class B) Yes
- SNMP V2, V3 Yes
- LLDP Yes
NETWORK
- MRP MRP client role, MRP manager role
- L2 features Loop protection, Forwarding table, VLAN, STP/RSTP
- DHCP DHCP server, DHCP client
- Port Settings Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
- L3 Features Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
QOS
- QOS Port priority, DSCP priority, 802.1p priority, TOS
- Scheduling method SP/WFQ/WRR
- Bandwidth control Rate limiting, storm control
- Traffic Shaper Port-based shaping
DIAGNOSTICS
- Tools Cable diagnostic, ping, traceroute, nslookup
SYSTEM CHARACTERISTICS
- RAM 128MB, DDR3
- FLASH storage 16 MB serial flash
FIRMWARE / CONFIGURATION
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA Update FW
- RMS Update FW/configuration for multiple devices at once
- Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMISATION
- Operating system TSWOS (OpenWrt based Linux OS)
- Supported languages Busybox shell, Lua, C, C++
- Development tools SDK package with build environment provided
PERFORMANCE SPECIFICATIONS
- Bandwidth (Non-blocking) 20 Gbps
- Packet buffer 512 KB
- MAC address table size 8K entries
- Jumbo frame support 10000 bytes
POWER
- Connector 2-pin industrial DC power socket
- Input voltage range 7 – 57 VDC
- Power consumption Idle: < 2.5 W / Max: 6 W
PHYSICAL INTERFACES
- Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
- Fibre 2 x SFP ports
- Status LEDs 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
- Power 1 x 2-pin industrial DC power socket
- Reset Software reset button
- Other 1 x Grounding screw
PHYSICAL SPECIFICATION
- Casing material Anodized aluminum housing and panels
- Dimensions (W x H x D) 132 x 44.2 x 122.2 mm
- Weight 615 g
- Mounting options Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
- Operating temperature -40 °C to 75 °C
- Operating humidity 10% to 90% non-condensing
- Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
- Regulatory CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH
EMC EMISSIONS & IMMUNITY
- Standards
- EN 55032:2015 + A11:2020 + A1:2020
- EN 55035:2017 + A11:2020
- EN IEC 61000-3-2: 2019 + A1:2021
- EN 61000-3-3: 2013 + A1:2019 + A2:2021
- ESD EN 61000-4-2:2009
- Radiated Immunity EN IEC 61000-4-3:2020
- EFT EN 61000-4-4:2012
- Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
- CS EN 61000-4-6:2014
- DIP EN 61000-4-11:2020
SAFETY Standards
- CE: EN IEC 62368-1:2020 + A11:2020
- RCM: AS/NZS 62368.1:2022
- CB: IEC 62368-1:2018
