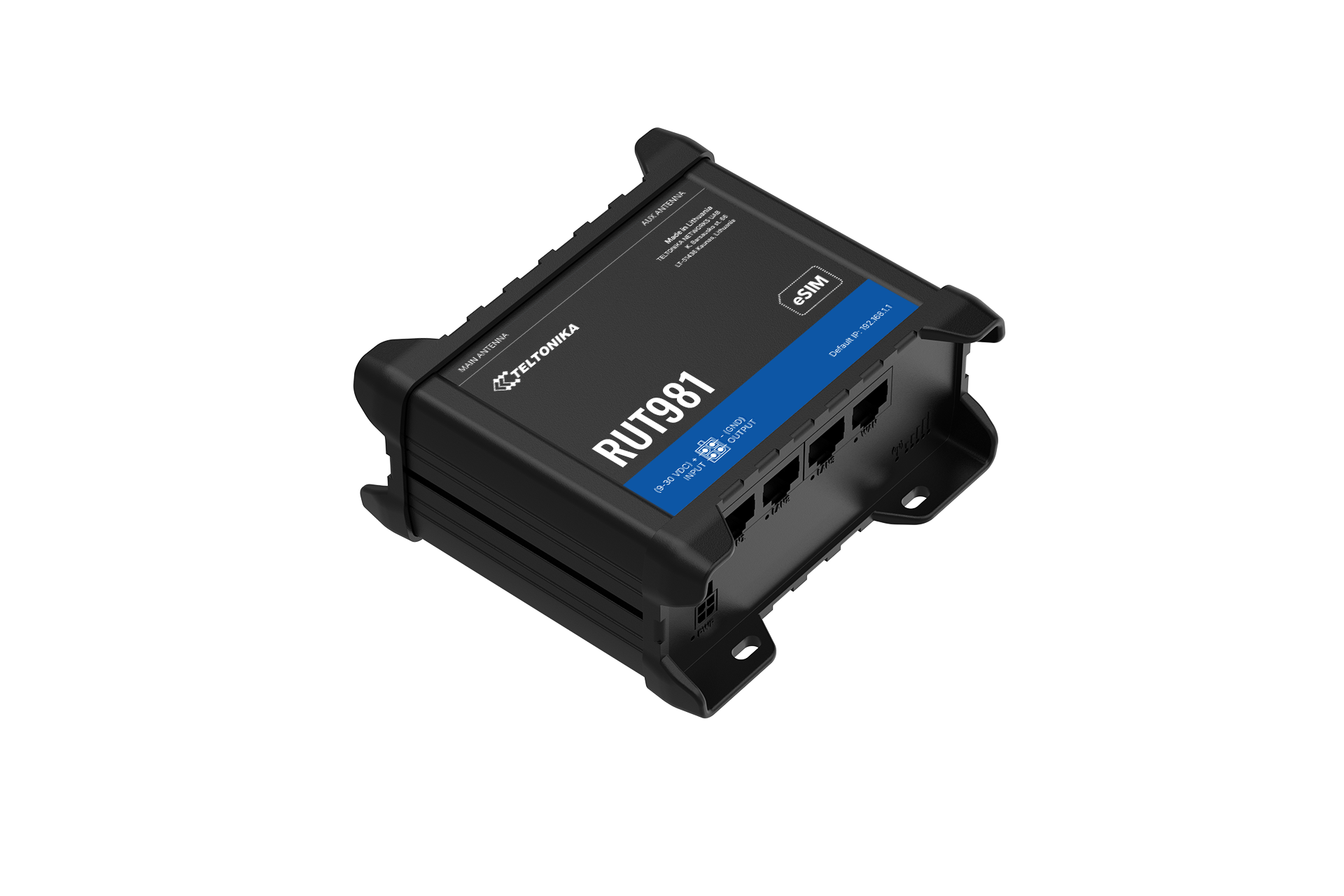

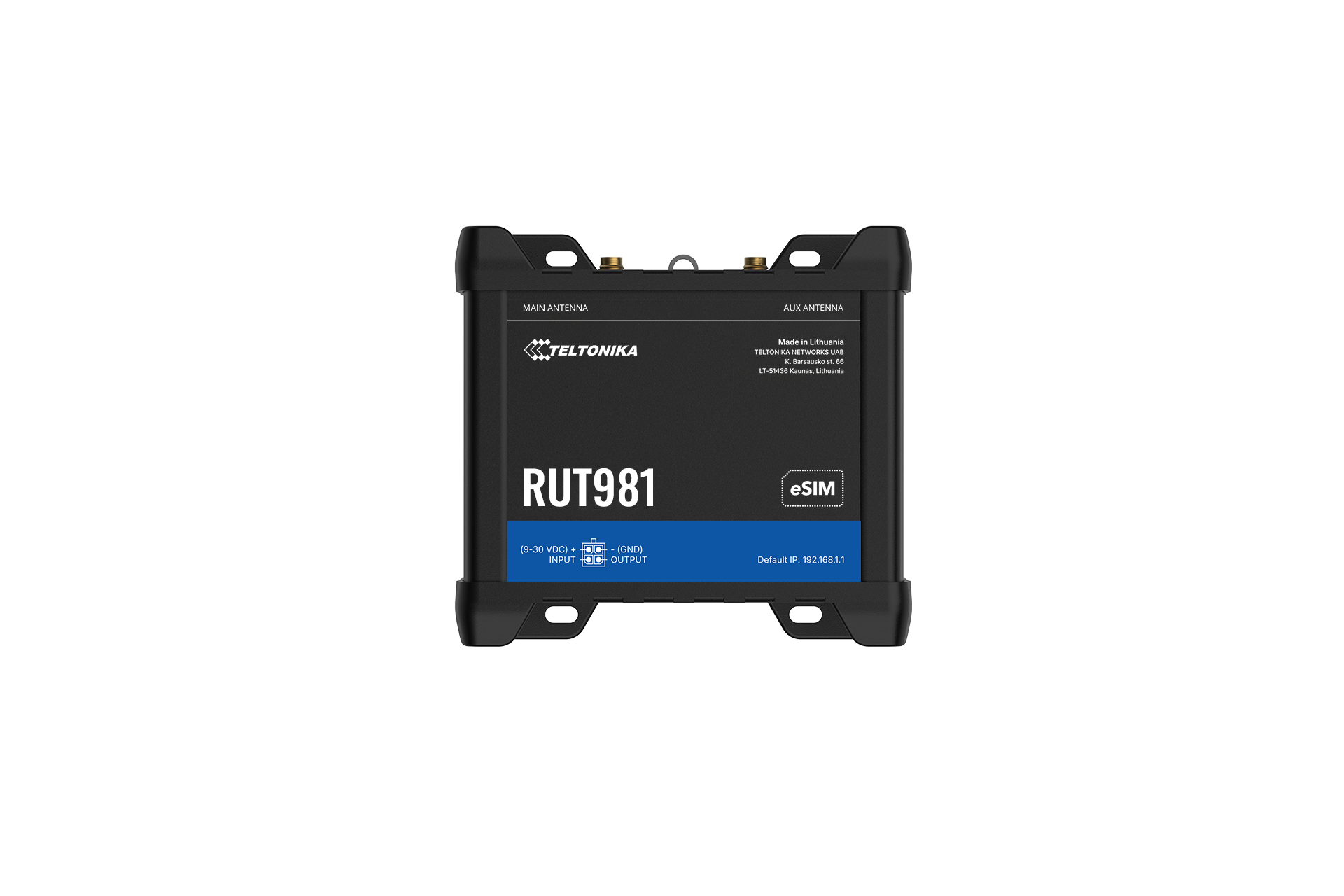

Teltonika LTE Cat 4 Global Router – RUT981000000

• Mobile module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Kbps
• 3GPP Release Release 10
• eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
• SIM switch Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
• Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
• SMS SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD Supports sending and reading Unstructured Supplementary Service Data messages
• Block/Allow list Operator block/allow list (by country or separate operators)
• Multiple PDN Possibility to use different PDNs for multiple network access and services
• Band management Band lock, Used band status display
• SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
• APN Auto APN
• Bridge Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode 802.11b/g/n (Wi-Fi 4), 2×2 MIMO, Access Point (AP), Station (STA)
• Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
• SSID/ESSID SSID stealth mode and access control based on MAC address
• Wi-Fi users Up to 100 simultaneous connections
• Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
• Wireless MAC filter Allowlist, blocklist
• Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information
• TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device

• WAN 1 x WAN port 10/100 Mbps, compliance wtih IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
• LAN 3 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

• Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
• VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection  monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall Port forward, traffic rules, custom rules, TTL target customisation
• Firewall status page View all your Firewall statistics, rules, and rule counters
• Port management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
• Network topology Visual representation of your network, showing which devices are connected to which other devices
• DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
• QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS Supported >77 service providers, others can be configured manually
• DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
• Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing Balance Internet traffic over multiple WAN connections
• Hotspot 2.0 Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
• Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
• SSHFS Possibility to mount remote file system via SSH protocol
• Traffic Management Real-time monitoring, wireless signal charts, traffic usage history
• Port Mirroring Mirroring network traffic on Ethernet ports for monitoring and analysis

• Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
• Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
• Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN Port and tag-based VLAN separation
• Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
• WEB filter Block list for blocking out unwanted websites, allow list for specifying allowed sites only
• Access control Flexible access control of SSH, Web interface, CLI and Telnet
• Certificate Manager Certificate creation tool allows to create CA, server, client, let’s encrypt, SCEP certificates
• VPN OpenVPN
• Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
• GRE GRE tunnel, GRE tunnel over IPsec support
• PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
• Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
• SSTP SSTP client instance support
• ZeroTier ZeroTier VPN client support
• WireGuard WireGuard VPN client and server support
• Tinc Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
• EoIP Ethernet over IP (EoIP) Tunneling is a MikroTik RouterOS protocol based on GRE RFC 1701 that creates an Ethernet tunnel between two routers on top of an IP connection
• OpenConnect Cross-platform multi-protocol SSL VPN client which supports a number of VPN protocols
• OPC UA Supported modes
• Client, Server Supported connection types
• TCP MODBUS
• Supported modes Server, Client
• Supported connection types TCP
• Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
• Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

• Protocol HTTP(S), MQTT, Azure MQTT
• Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

MQTT Gateway

• Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker

• Supported modes Station, Outstation
• Supported connection TCP

• DLMS Support DLMS – standard protocol for utility meter data exchange
• Supported modes Client
• Supported connection types TCP

• Teltonika Networks Web API (beta) support Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management WEB UI

• HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update  availability notifications, event log, system log, kernel log, Internet status
• FOTA Firmware update from server, automatic notification
• SSH SSH (v1, v2)
• SMS SMS status, SMS configuration
• Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
• TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT MQTT Broker, MQTT publisher
• SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
• JSON-RPC Management API over HTTP/HTTPS
• RMS Teltonika Remote Management System (RMS)

• ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity – Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
• Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
• AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality

• CPU Mediatek, 580 MHz, MIPS 24KEc
• RAM 128 MB, DDR2
• FLASH storage 32 MB, NOR Flash

• WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA Update FW
• RMS Update FW/configuration for multiple devices at once
• Keep settings Update FW without losing current configuration
• Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

• Operating system RutOS (OpenWrt based Linux OS)
• Supported languages Busybox shell, Lua, C, C++
• Development tools SDK package with build environment provided
• GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
• Package Manager The Package Manager is a service used to install additional software on the device

• Input 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
• Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events Email, RMS, SMS
• I/O juggler Allows to set certain I/O conditions to initiate event

• Connector 4-pin industrial DC power socket
• Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
• PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC
• Power consumption Idle: < 1.86 W, Max: < 4.27 W

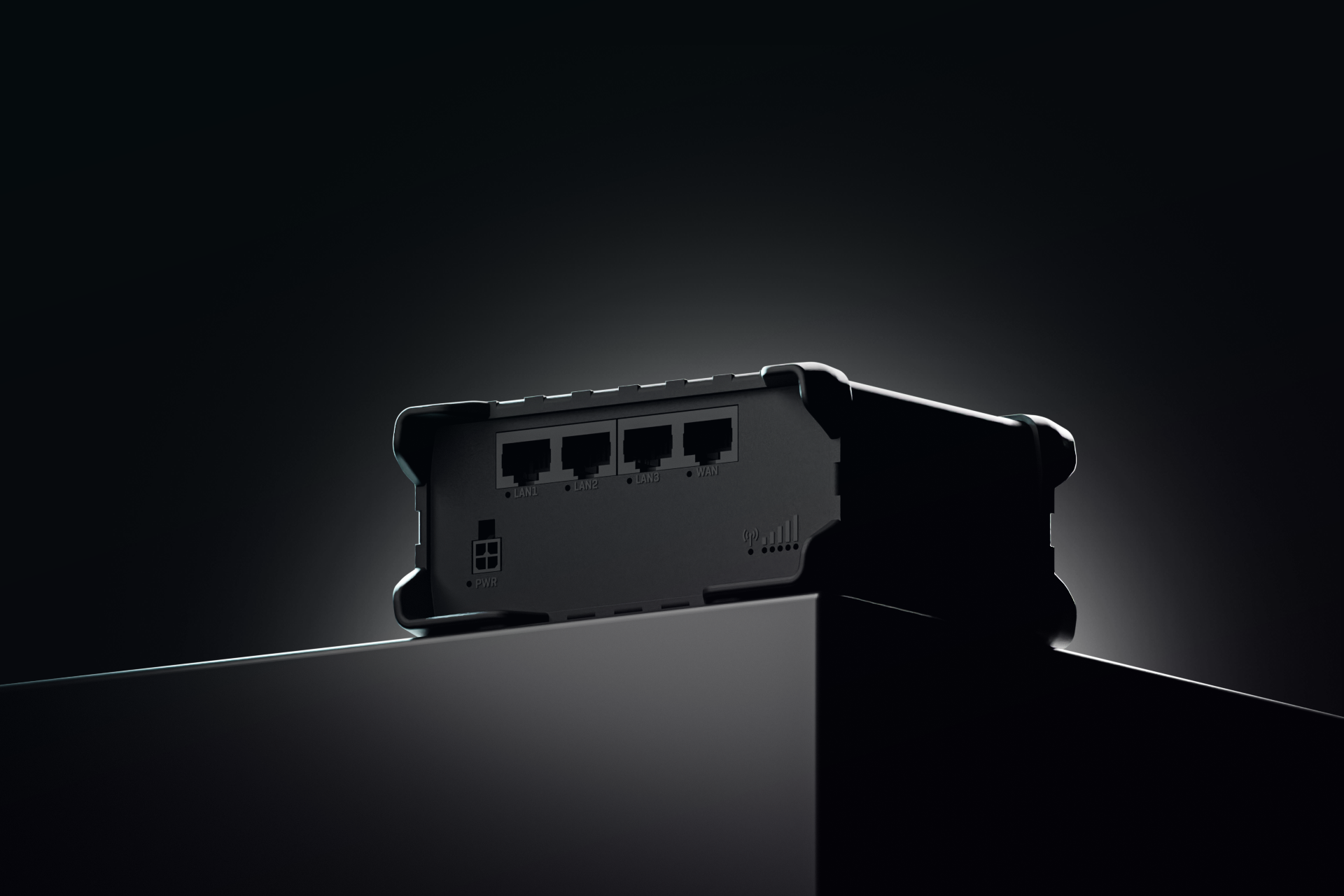

• Ethernet 4 x RJ45 ports, 10/100 Mbps
• I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
• SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders
• Power 1 x 4-pin power connector

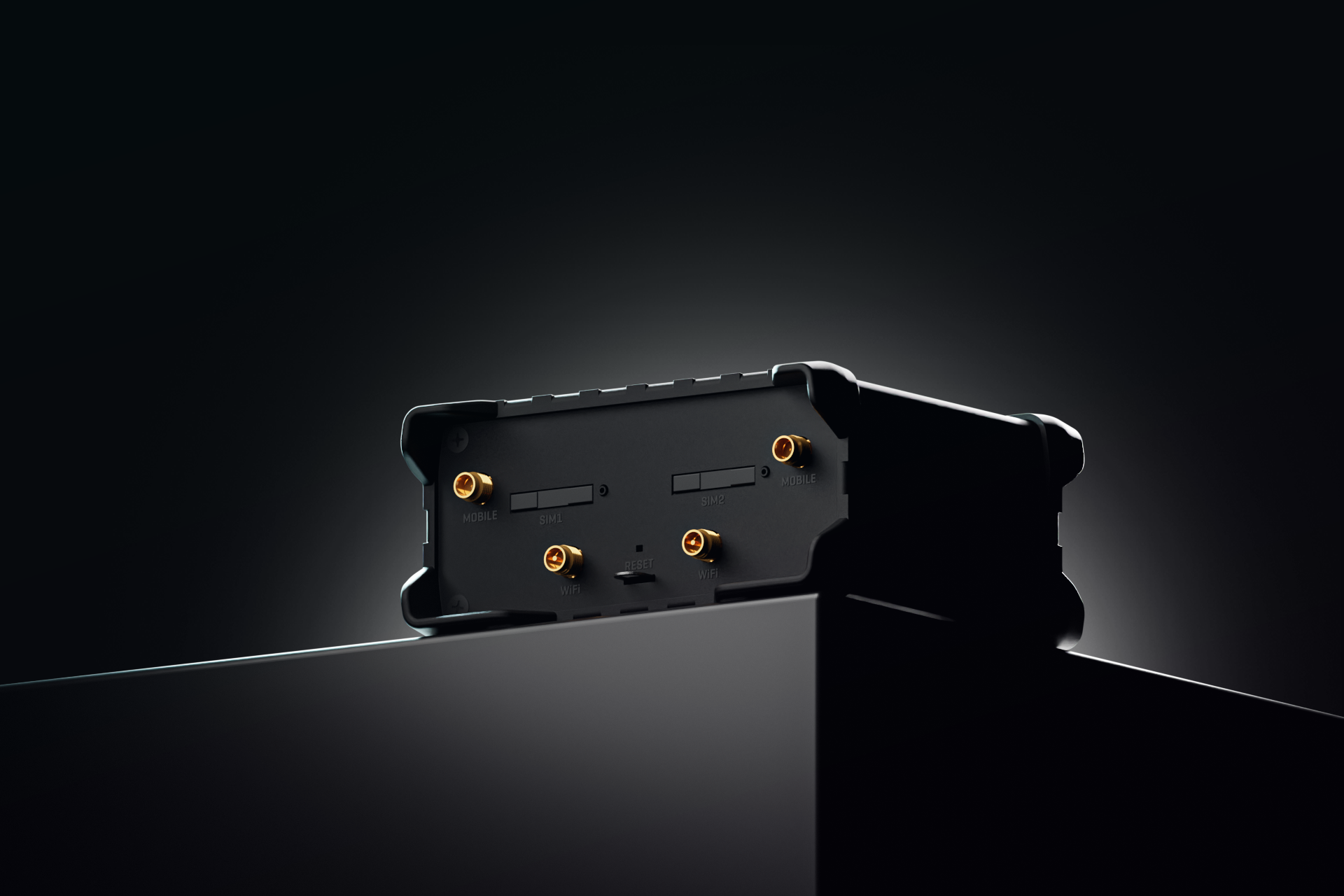

• Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors
• Reset Reboot/User default reset/Factory reset button

• Casing material Aluminium housing, plastic panels
• Dimensions (W x H x D) 110 x 50 x 100 mm
• Weight 268 g
• Mounting options DIN rail, wall mount, flat surface (all require additional kit)

• Operating temperature -40 °C to 65 °C
• Operating humidity 10% to 90% non-condensing
• Ingress Protection Rating IP30

• Regulatory CE, UKCA, EAC, UCRF, FCC, ISED (IC), RCM, CB
• EMC Emissions & Immunity Standards
• CE/UKCA:
  • EN 55032: 2015+A11:2020+A1:2020
  • EN 55035: 2017+A11:2020
  • EN 61000-3-3: 2013+ A1:2019+A2:2021
  • EN IEC 61000-3-2: 2019+A1:2021+A2:2024
  • EN 301 489-1 V2.2.3
  • EN 301 489-17 V3.3.1
  • EN 301 489-19 V2.2.1
  • EN 301 489-52 V1.2.1
• RCM:
  • AS/NZS CISPR 32: 2015+A1:2020
• FCC:
  • 47 CFR Part 15 Subpart B
• ISED (IC):
  • ICES-003: Issue 7 (October 2020)
• ESD EN 61000-4-2:2009
• Radiated Immunity EN 61000-4-3:2020
• EFT EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
• CS EN 61000-4-6:2014
• DIP EN 61000-4-11:2020

• Standards
• CE/UKCA:
  • EN 300 328 V2.2.2
  • EN 301 511 V12.5.1
  • EN 301 908-1 V15.2.1
  • EN 301 908-2 V13.2.1
  • EN 301 908-13 V13.2.1
• RCM:
  • AS/NZS 4268:2017+A1:2021
  • AS/NZS 2772.2:2016+A1:2018
  • ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev. 1)
• FCC:
  • 47 CFR Part 15 Subpart C – § 15.247
  • FCC Rules 47 CFR §2.1091
  • KDB 447498 D04 interim General RF Exposure Guidance v01
• ISED (IC):
  • RSS-247 Issue 3, August 2023
  • RSS-Gen Issue 5 Amendment 2 (February 2021)
  • RSS-102 Issue 6, December 15, 2023

• Standards
  • CE: EN IEC 62311:2020
  • RCM: AS/NZS 62368.1:2022
  • CB: EN IEC 62368-1:2020+A11:2020
