Lýsing
Alhliða spennugjafi 3 V – 12 V, Mest 7.2 W

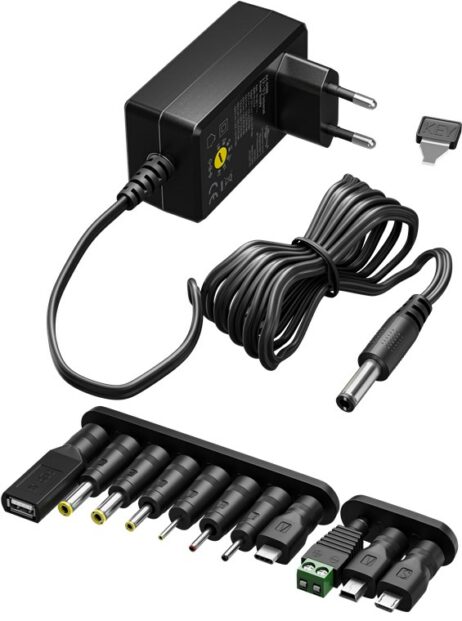

incl. 11 adapters: 7 DC adapters plus USB-C™, USB-A, USB Mini-B, Micro-USB and a screw terminal connection
The versatile power supply with the innovative USB tops and interchangeable DC adapters is the handy all-rounder for your small devices. With the adapters and the cutting-edge USB-C™ connector, you always have the right connection for your electronic devices at hand – from radios to routers.
- Power supply with variable voltage, perfect as a replacement unit for electronic devices such as TV box, router, LED strips, video camera, digital picture frame, dartboard, baby monitor or toy
- The output voltage can be regulated via the enclosed rotary key for selecting 3 V/4.5 V/5 V/6 V/7.5 V/9 V/12 V at 1.5 A
- The USB-C™ adapter serves a wide range of new devices and, as a new hardware standard, makes the switching power supply a viable, long-term option
- Micro-USB and Mini-USB power many small devices such as portable radios, battery chargers, Bluetooth speakers or headphones
- Incl. permanently attached DC plug 5.5 x 2.1 mm and 6 additional DC adapters: 5.5 x 2.5 mm, 2.5 x 0.7 mm, 3.0 x 1.1 mm, 3.5 x 1.35 mm, 4.0 x 1.7 mm, 4.8 x 1.7 mm
- With the interchangeable DC adapters, the 12 V power supply unit with Europlug (CEE 7/16) eliminates the need to purchase additional chargers
- Fuses in the plug-in power supply protect the device against short circuits, overload, overvoltage and overcurrent
Technical specifications
- Average active efficiency 75.9 %
-
No-load power consumption 0.09 Wmax. performance 18 W
Output
- 3.0 V max. 1.5 A (4.5 W) DC
- 4.5 V max. 1.5 A (6.75 W) DC
- 5.0 V max. 1.5 A (7.5 W) DC
- 6.0 V max. 1.5 A (9.0 W) DC
- 7.5 V max. 1.5 A (11.25 W) DC
- 9.0 V max. 1.5 A (13.5 W) DC
- 12.0 V max. 1.5 A (18.0 W) DC
- max. performance 18 W
- Input, Voltage Range 100 – 240 (AC) V
- Input, type Euro male (Type C CEE 7/16) x in
- Output, max. amperage 1.5 A
- Input current 0.5 A
- Cable length 1.8 m
- Color black
- Markings CE, WEEE, Haus, Quader
- Packaging type Bulk
- Dimensions / Weight
- Length 76.45 mm
- Width 44 mm
- Height 69.2 mm
- Weight 105 g
