5G loftnet fyrir skip og báta, 9,5dB – RIPPLE

X-POLARISED, OMNI-DIRECTIONAL 5G/LTE 16X16 MULTI MIMO ANTENNA ARRAY

617 – 7200MHz, 9.5dBi; 4x(4×4 MIMO) + 4×4 Wi-Fi (MIMO) + 2 x GPS/Glonass
  • High performance, omni-directional marine & coastal antenna
  • Up to 16×16 MIMO (RIPL-16) capability for improved performance
  • 8×8 MIMO (RIPL-8) antenna solution, which contains 8 cross-polarised, omni-directional antennas with 4 x vertically and 4 x horizontally polarised
  • Covers contemporary 5G/LTE band from 617 to 7200 MHz

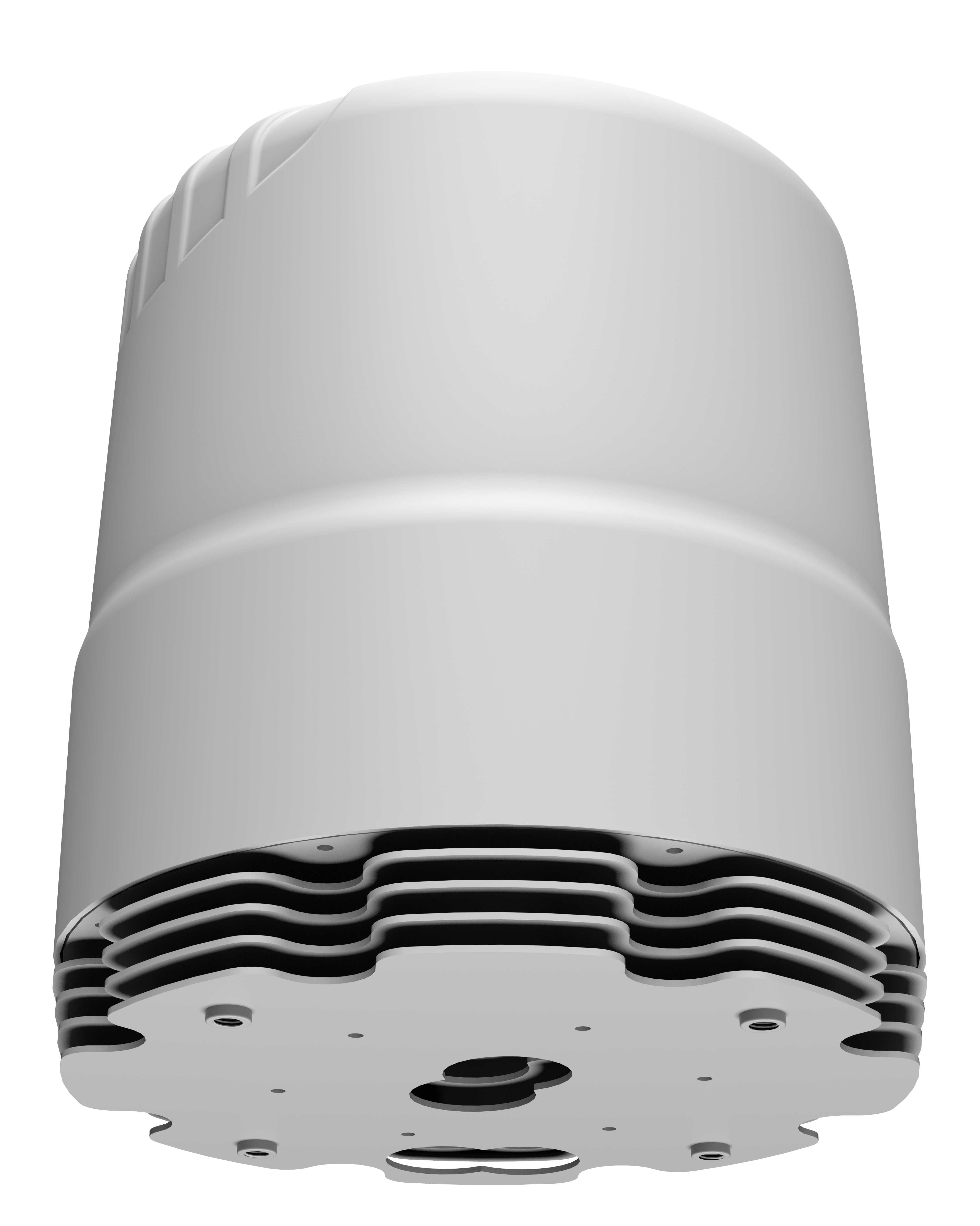

  • Innovative heat sink design for improved temperature regulation
  • UV and saltwater protected for marine and coastal applications
  • IP65 weather/dust resistant enclosure
Láttu aðra vita

Lýsing

360°, 9,5 dB LTE – 2G/3G/4G/5G loftnet sérstaklega gert fyrir skip og báta. Þetta er nýtt net þar sem að routerinn er settur inn í loftnetið og þar með eru allar lagnir einfaldari að netinu.

Væntanlega vara á markað seinnihluta 2023! Einungis sérpantað.

Sjá betur hér

Bæklingur hér

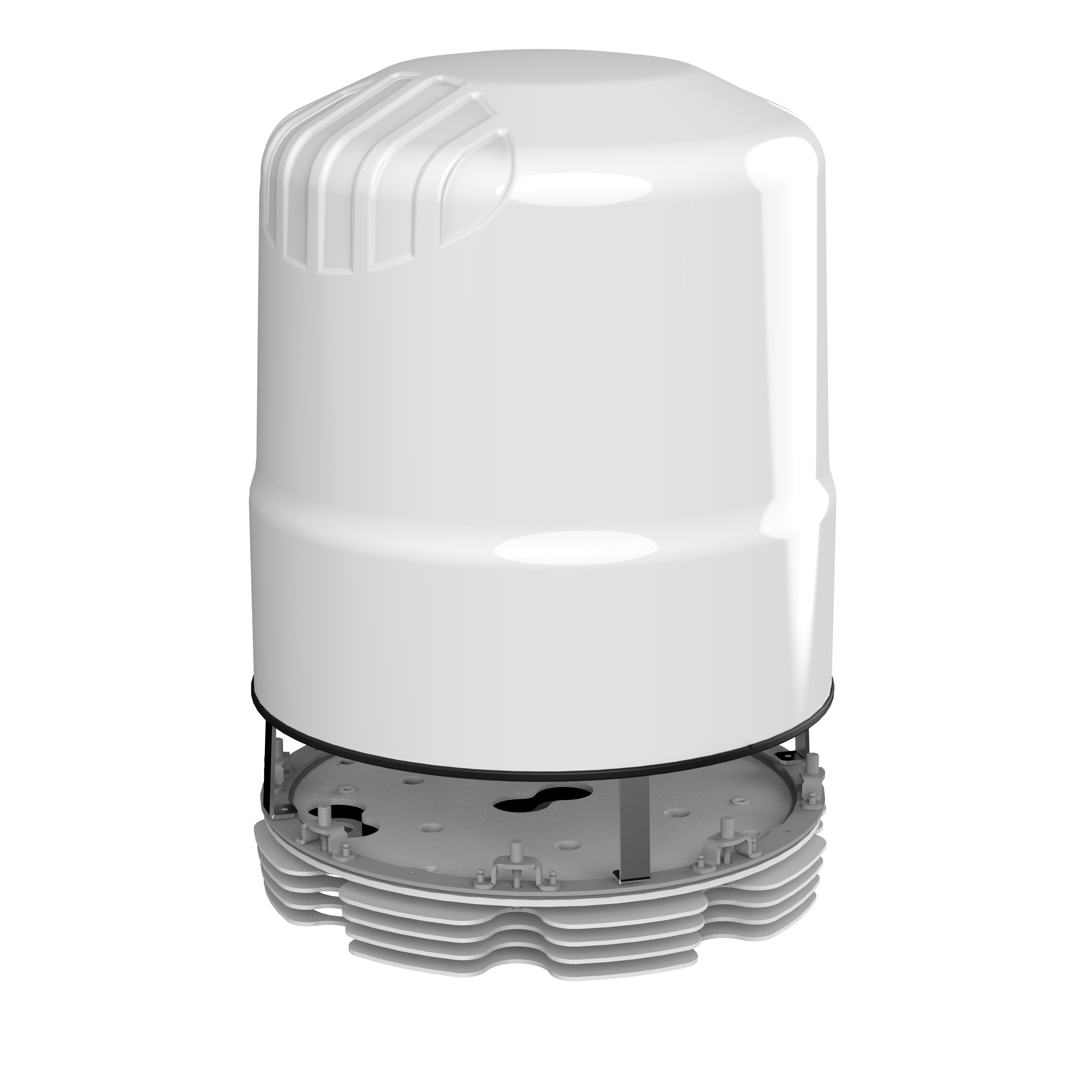

Poynting Antennas introduces its all-new marine antenna enclosure range, the Ripple antenna enclosure, which forms part of the WaveHunter series. The Ripple antenna enclosure is designed to fit a variety of router and networking modules, transforming the antenna enclosure into a CPE (Customer Premises Equipment) device – just add your own LTE/5G routers. The Ripple enclosure can accommodate routers up to the size of 300 x 200 x 50 mm³, which can be mounted directly onto the base.
The flagship unit will be the RIPL-16 antenna array that consists of 16 cross-polarised, omni-directional antennas arranged in a cross-polarised orientation with 8 x vertically and 8 x horizontally polarised, for improved performance. There is also a RIPL-8 antenna solution, which contains 8 cross-polarised, omni-directional antennas with 4 x vertically and 4 x horizontally polarised. The antennas offer wideband coverage from 617 to 7200 MHz, with a peak gain of 9.5dBi. Making it ideal for multi-router LTE & 5G bonded and aggregated deployments. The enclosure was designed to withstand adverse weather conditions, making the antenna weatherproof with an IP65 rating. The antenna enclosure was designed specifically for marine & coastal applications.

SKU A-RIPL-0008-V1-01 A-RIPL-0016-V1-01
COAX Cable Type RG-316 RG-316
COAX Cable Length 0.35m 0.35m
Color White White

Viðbótarupplýsingar

Litur

,
