Name: Unifi UPS 600W, desktop útgáfa - UPS-Tower
Brand: Ubiquiti Networks
SKU: 26777
Availability: InStock

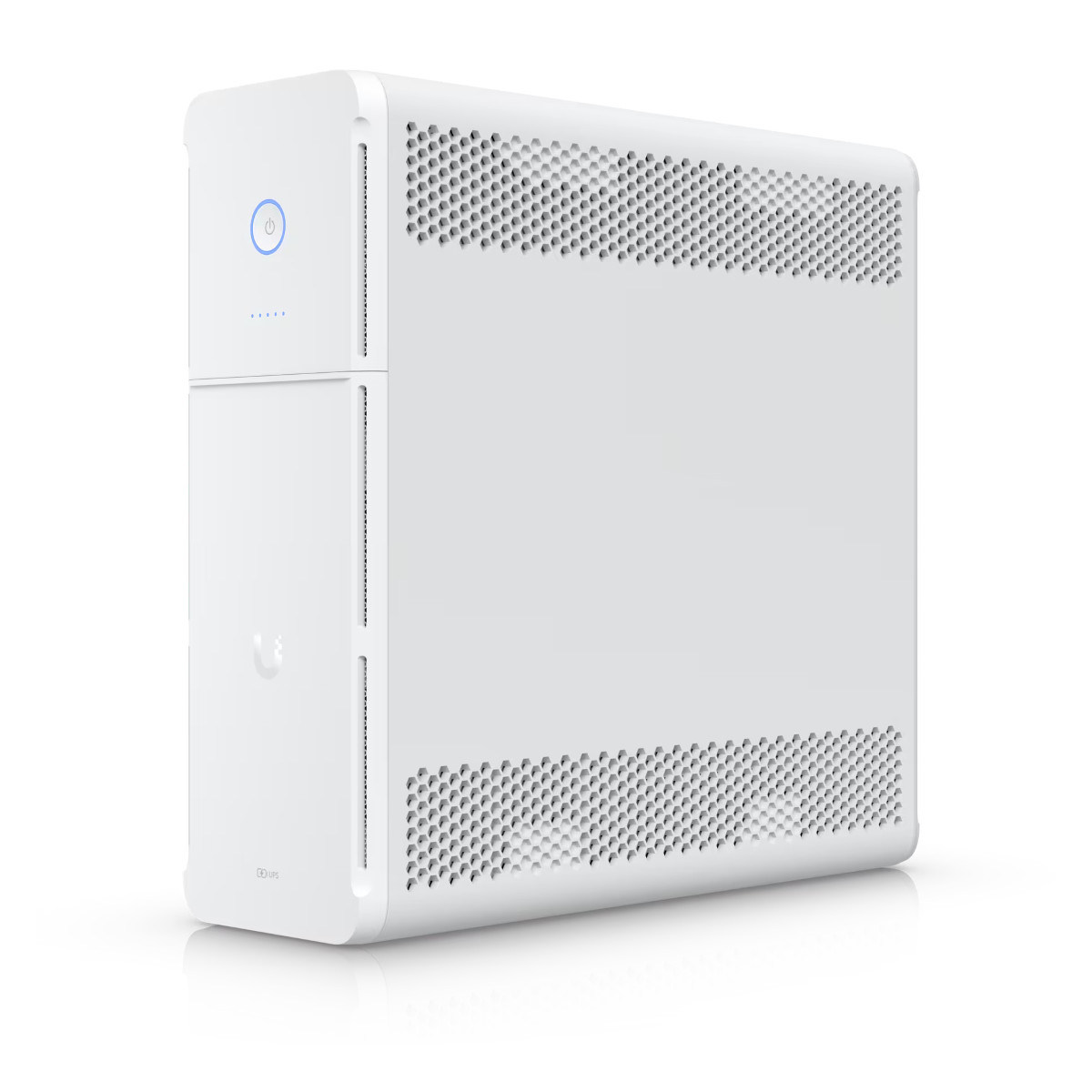

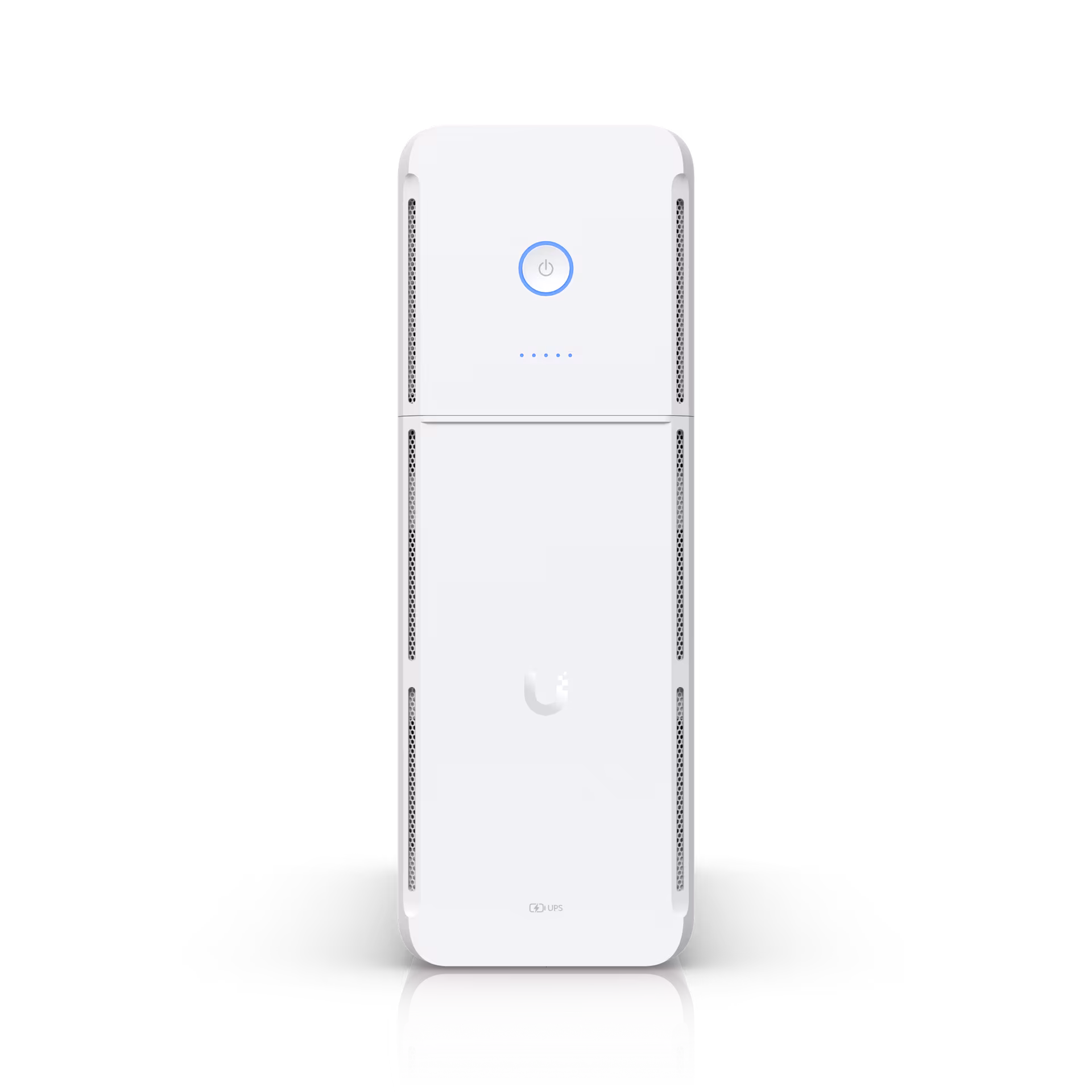

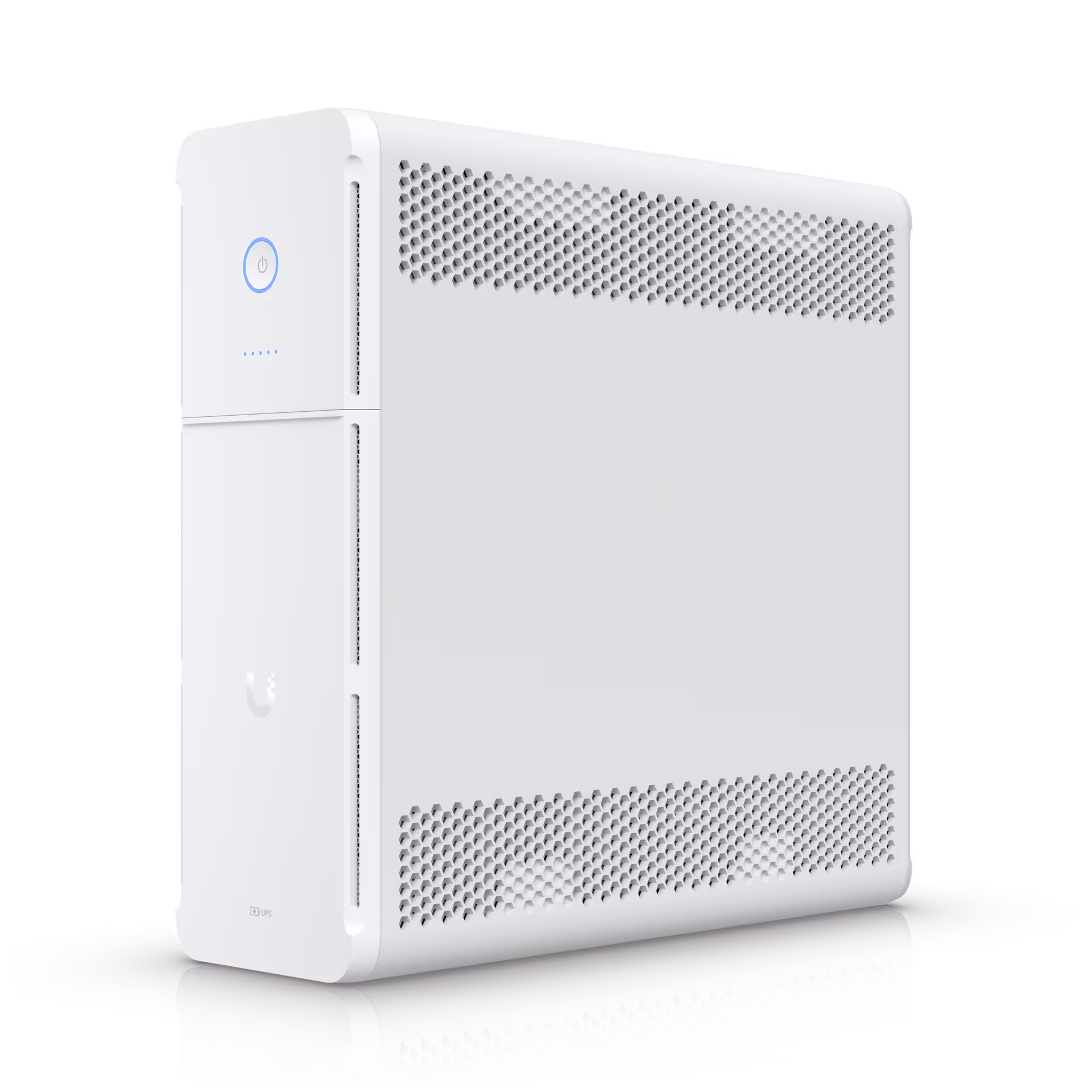

Unifi UPS 600W, desktop útgáfa – UPS-Tower

39.900 kr.

UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.

_{Note. For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.}

Láttu aðra vita

Lýsing

Dimensions 288 x 99 x 280.5 mm (11.3 x 3.9 x 11″)

Weight 7.85 kg (17.3 lb)

Enclosure Material Polycarbonate and acrylonitrile butadiene styrene blend

Form Factor Desktop

Weatherproofing IP20

Management Ethernet

Networking Interface (1) 100/10 MbE port for network connection (2) GbE ports for surge in/out

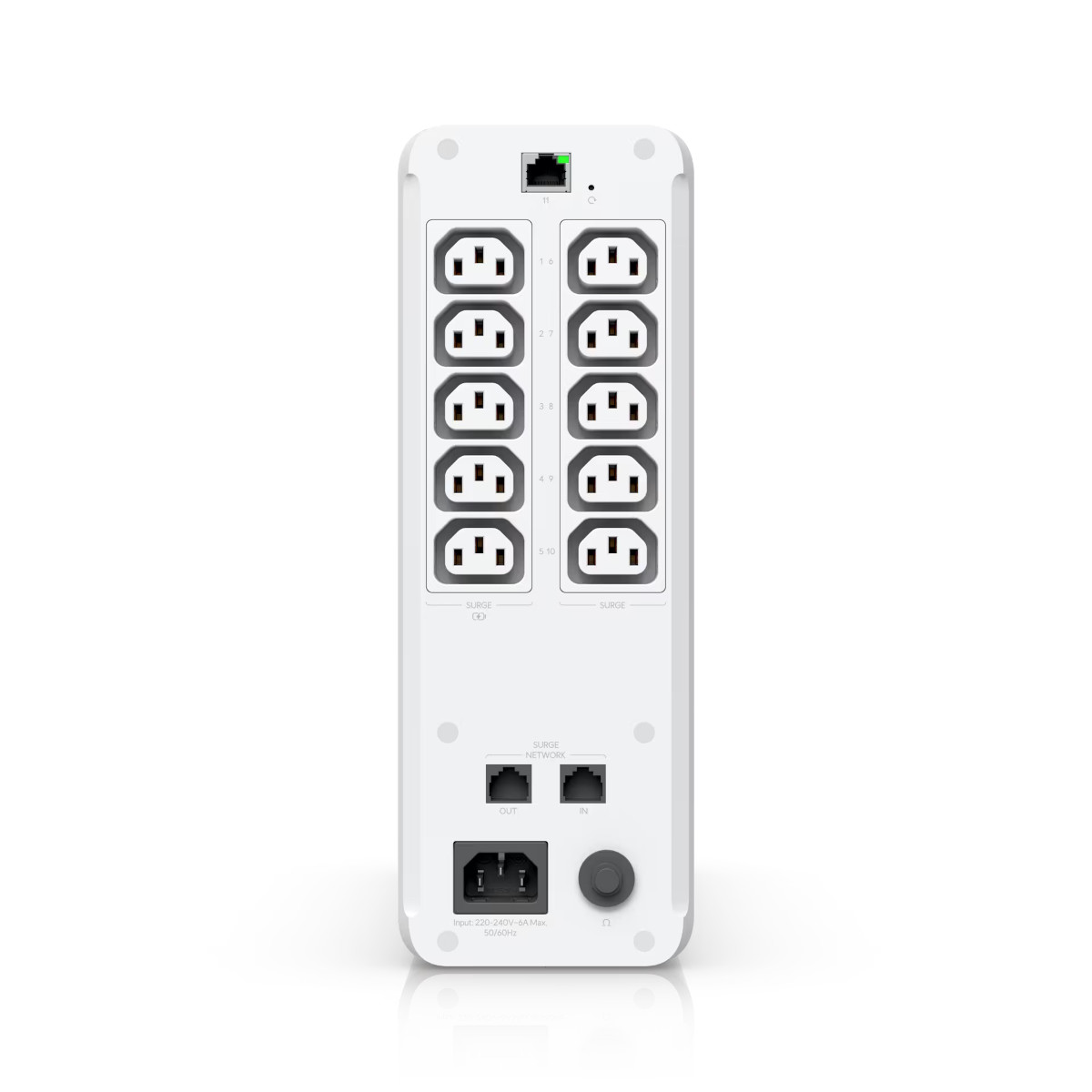

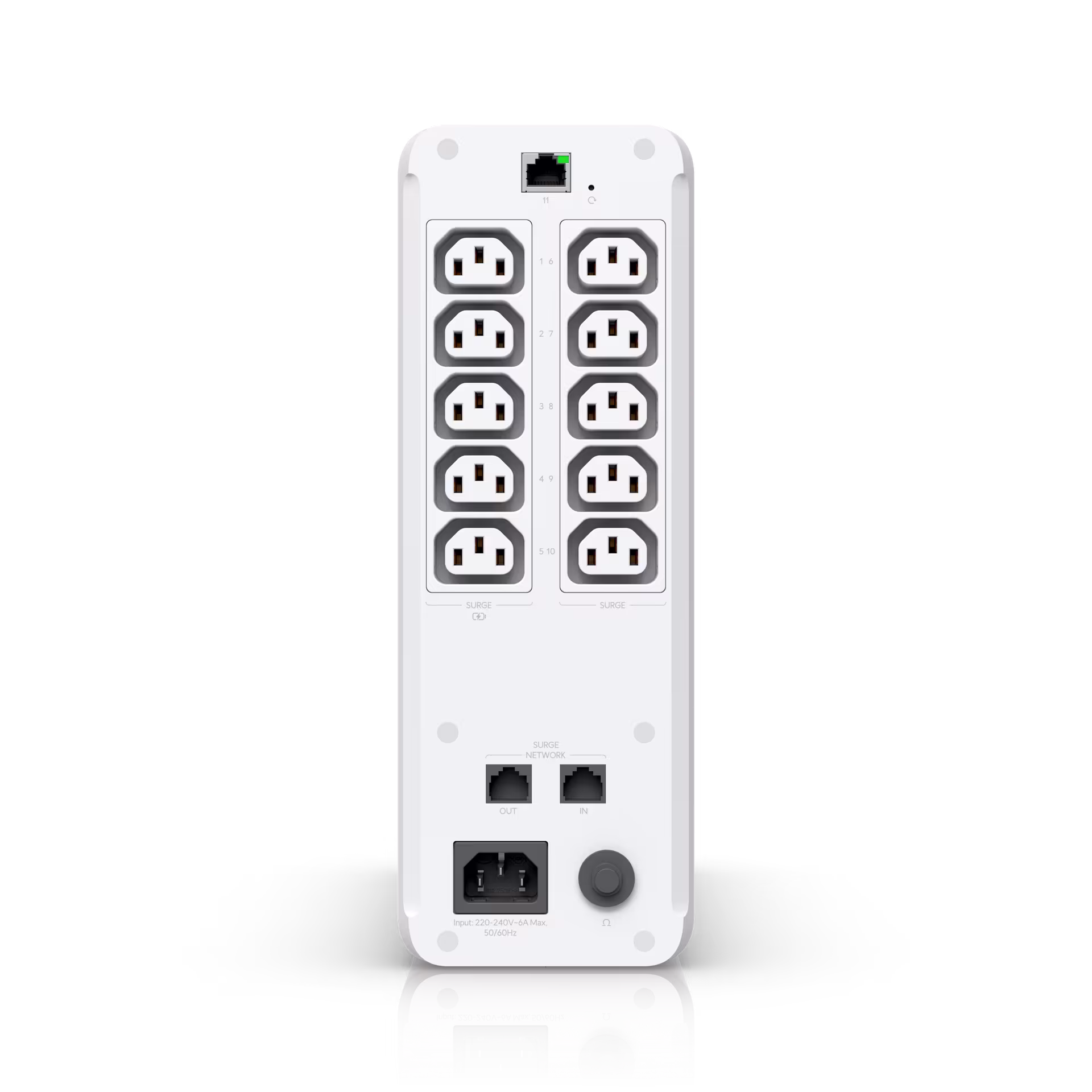

Power (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord (5) Battery backup/surge protection: C13 (5) Surge protection: C13

Capacity 1,000VA/600W

Type Line interactive

Input Voltage Range 170—280V AC

Power Method (1) TN system, 220—240V AC, 6A Max., 50/60 Hz

Nominal Input Voltage 230V AC

Output Voltage 220—240V AC

Nominal Output Voltage 230V AC

Frequency Range AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 50 Hz ±1 Hz

AC Voltage Regulation ±10% (Battery mode)

Transfer Time 6 ms typical; 10 ms max. (Battery mode)

Wave Form Simulated sine wave (Battery mode)

Battery Type (1) Lead Acid 12V, 9Ah

Runtime Full load: 2 min Half load: 7 min

Battery Charging Time 6-8 hours recovery to 90% capacity

Overload at On-Line Mode 110% 5 min go to fault 120% go to fault immediately

Overload at Battery Mode 110% shutdown in 5 sec 120% shutdown immediately

Short Circuit Protection at On-Line Mode Breaker, 250V AC, 10A

Output Short-Circuit Current Ipeak 401.9A Irms 160.7A

Buttons (1) Power (1) Factory reset

LEDs

Status Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery
Battery Indicator All off: 0% (1) Steady blue: battery 1—19% (2) Steady blue: battery 20—39% (3) Steady blue: battery 40—59% (4) Steady blue: battery 60—79% (5) Steady blue: battery 80—100%

Operating Altitude 3,000 m (1.9 mi)

Operating Environment Pollution Degree 2

Ambient Storage Temperature -20 to 50° C (-4 to 122° F)

Ambient Operating Temperature 0 to 40° C (32 to 104° F)

Ambient Operating Humidity 0 to 95% noncondensing

Certifications CE, IEC 62040-1
