Lýsing

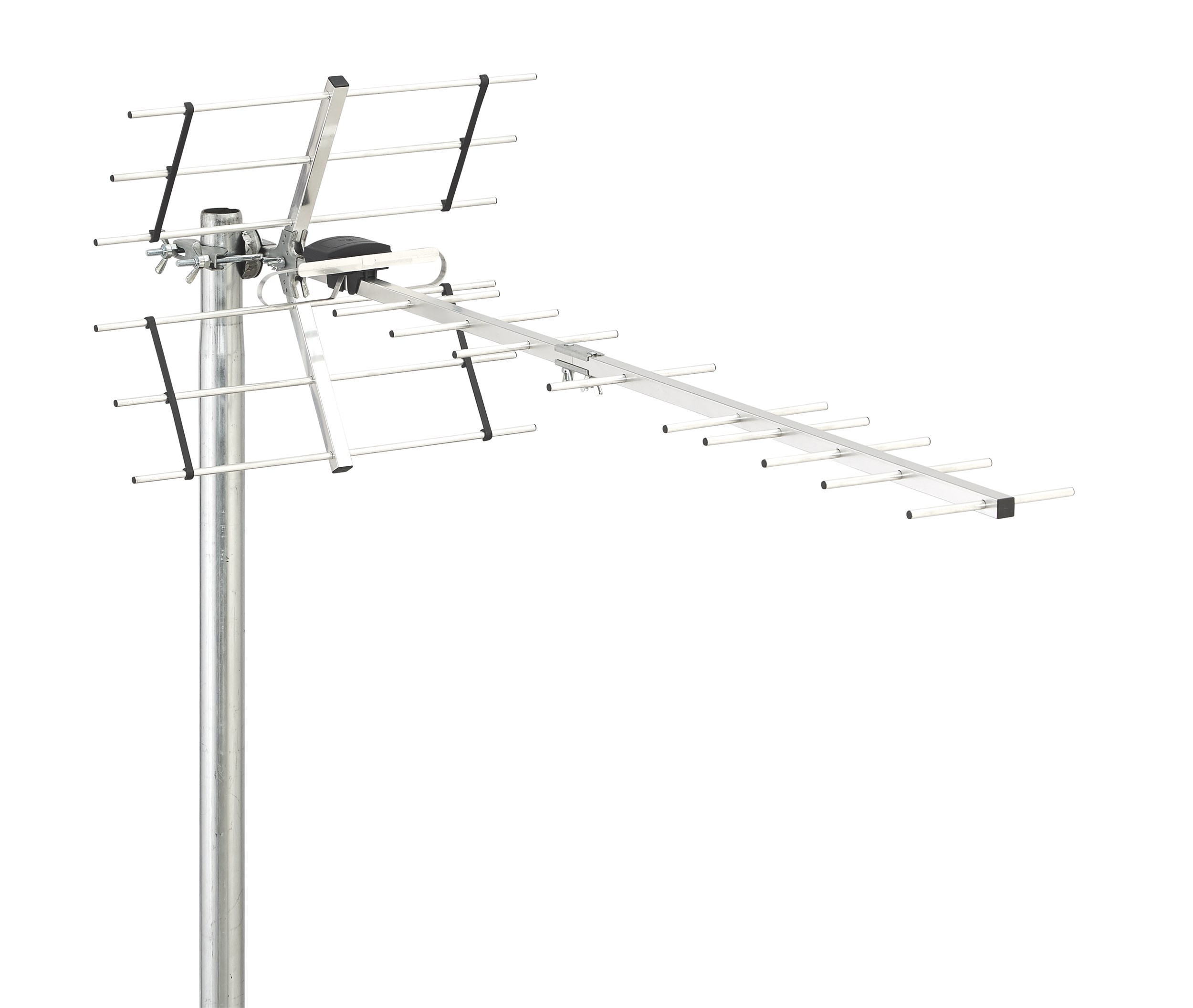

TRIAX UHF LTE 700 Loftnet
Triax Digi18 UHF loftnet. Þetta loftnet hentar vel þar sem að skilyrði eru slök fyrir móttöku. Það er með F tengi og hentar fyrir stafræna móttöku. Er með 700Mhz LTE síu.
TRIAX UHF LTE 700 Aerials
Disruption free installation from rooftop to outlet.
- Interference protection from LTE 700 & 800 signals
- Quick and easy installation with semi-assembled aerials
- Mechanical filtering for higher gain
- Reliable high-quality aerials secures end-consumer satisfaction
- Corrosion and weather proof dipole housing
- Designed to receive DTT signals in the 470…694 MHz range
- Access to reliable, expert support from TRIAX
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661054808 |
| CHARACTERISTICS | |
| Type | Digi 18 |
| FREQUENCY | |
| Band | B IV/V UHF |
| Channels | 21…48 |
| Frequency range UHF | 470…694 MHz |
| LTE protection | @ 700Mhz |
| GAIN | |
| Gain | 14 max dBi |
| Gain @ 474 MHz (Ch. 21) | 11.3 dBi |
| Gain @ 602 MHz (Ch. 37) | 12.5 dBi |
| Gain @ 694 MHz (Ch. 48) | 10.7 dBi |
| LOSS | |
| Rejection @ 758 MHz (Ch. 56) | 8.0 dB |
| Rejection @ 788 MHz (Ch. 60) | 8.9 dB |
| ELECTRICAL | |
| Front to back ratio – horisontal | 25 dB |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Elements | 17 |
| Windload | 59 N |
| Beamwidth horisontal | ±25 ° |
| Bracketry | Cradle/support boom |
| Main material | Aluminium |
| Product Length | 1414 mm |
| Product Width | 480 mm |
| Packing QTY | 1 |
| Packaging Height | 0,080 m |
| Packaging Width | 0,230 m |
| Packaging Depth | 0,765 m |
| Packaging Volume | 0,014 m3 |
| Net Weight | 1,250 kg |
| Tara Weight | 0,350 kg |
| Total Weight | 1,600 kg |
