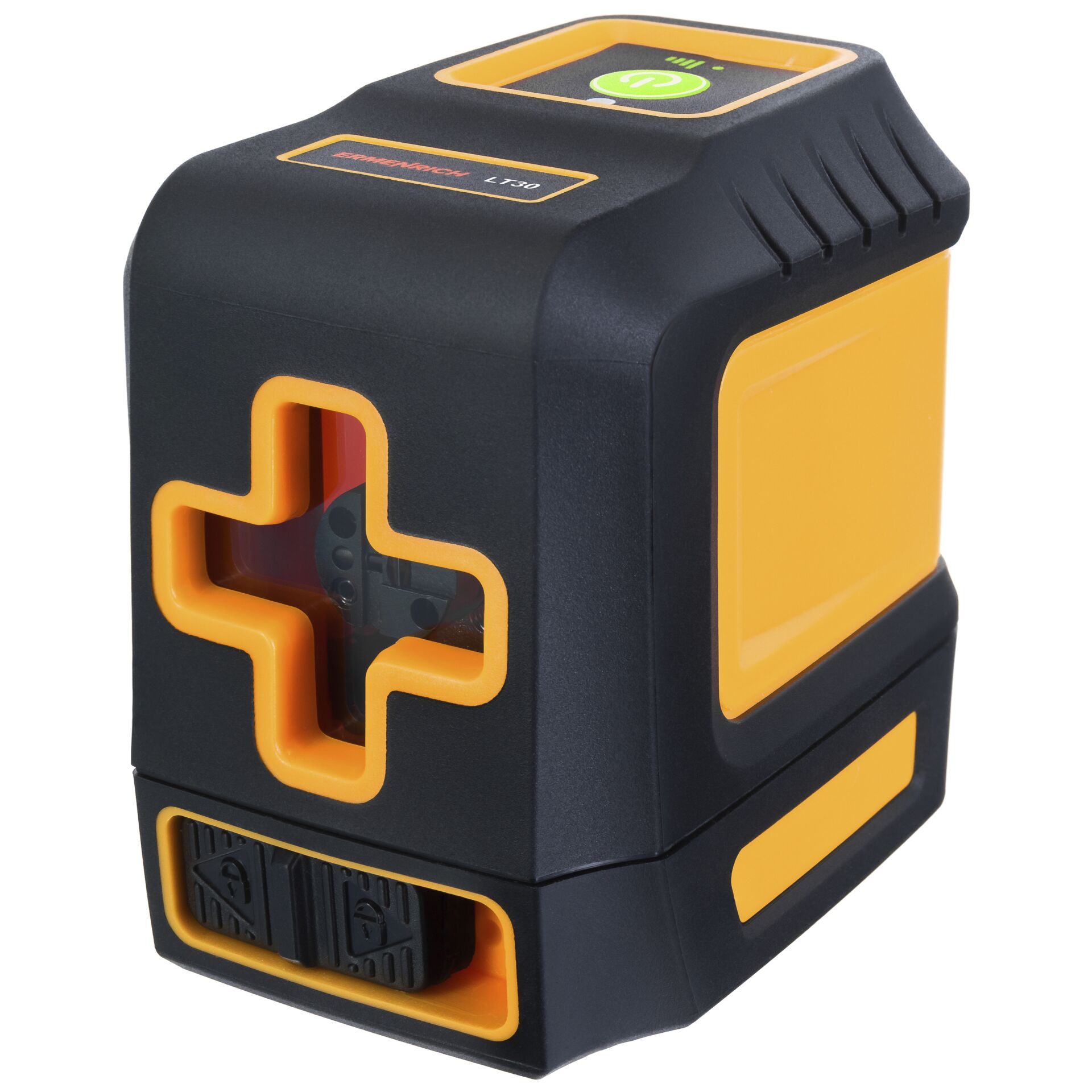

Ermenrich LT30 laser level
Ermenrich LT30 is a laser level with green laser LEDs. It projects two crossed lines for effective levelling during painting, plastering, tiling, plasterboard and other finishing work. The laser level can be set up at a considerable distance from the projection surface of the laser beams – up to 30 metres. The horizontal and vertical swivel range is 130°. The instrument is powered by two commercially available batteries. Four brightness levels are available.
Since the Ermenrich LT30 laser level is shockproof, it can stand securely on almost any surface. It can also be mounted on a tripod with a standard thread. With a tilt head stand, you can tilt the laser level to achieve the desired configuration of the laser beams. The compensator aligns the laser beam lines. The instrument is dust and splash-proof, which is especially important during renovation work when there is a risk of dirt and damage to the equipment.
Features:
- Projects a cross of two green lines
- Vertical and horizontal swivel range – 130°.
- Operates at a distance of up to 30 metres and is battery powered
- Self-levelling system
- IP54 protection (dust-resistant, splash-proof)
- Shockproof housing
- Suitable for mounting on 1/4-inch tripods
- L-shaped bracket
- Laser levelling device type: 1H/1V, 2 lines
- Working distance: up to 30 m
- Self-levelling system

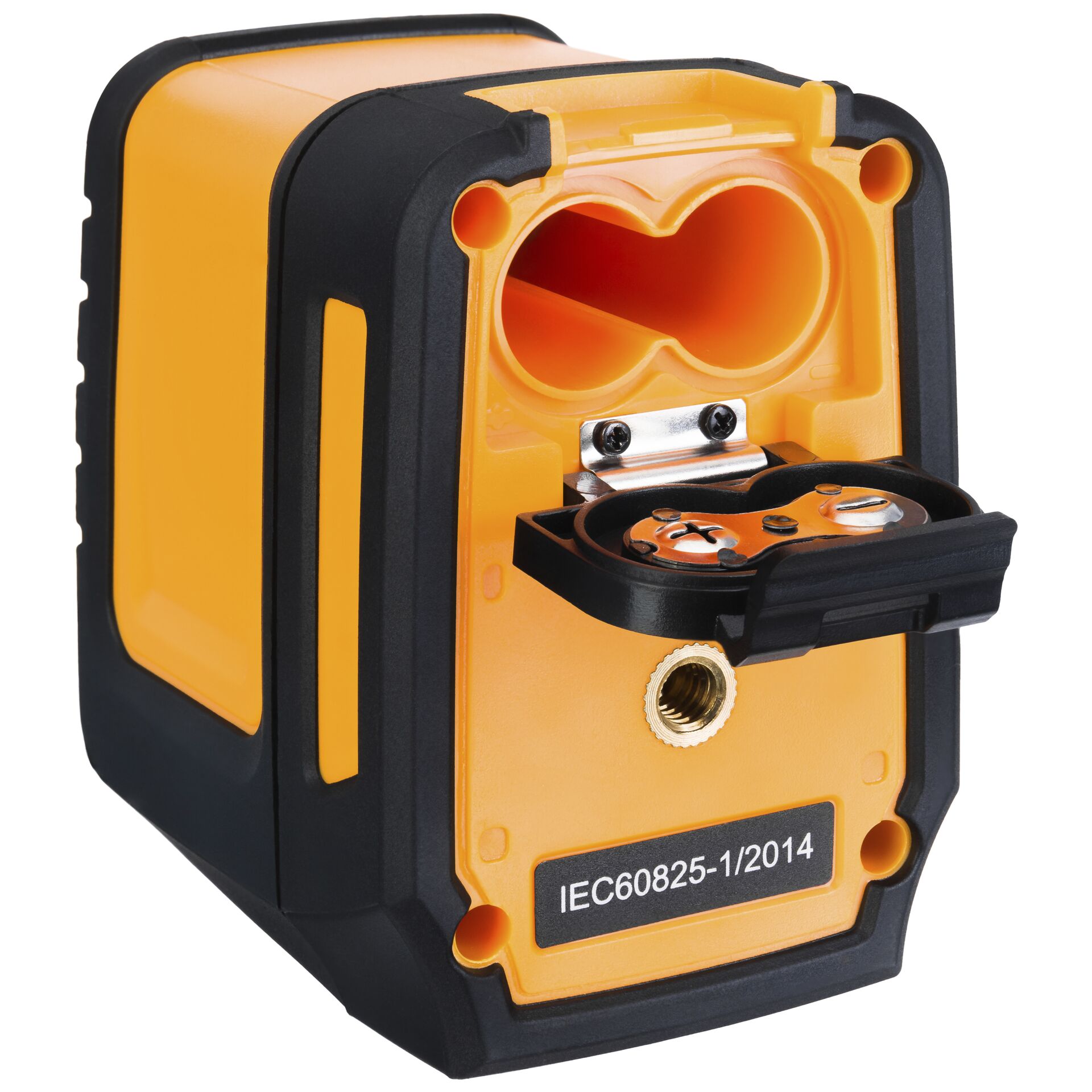

- Power supply: 2 AA batteries (not included)
- Battery life: approx. 7 – 16 hours
- Wavelength: 505-550 nm
- Temperature range, °C: -10…+50
- Dimensions: 82 x 57 x 81 mm
Technical data
Energy Supply
- Operating Mode
- Batteries
- Type of Battery / Rechargeable Battery AA Mignon
- Required Number 2
- Rechargeable Batteries Included in Delivery No
Equipment
- Laser Diode (nm) 505 – 550
- Measurement Range (m) 0 – 30
- IP Code IP54
Type
- Type Line Laser
- Colour Laser Beam Green
General
- Colour Black / Yellow
- Dimensions (mm) 82 x 57 x 81
