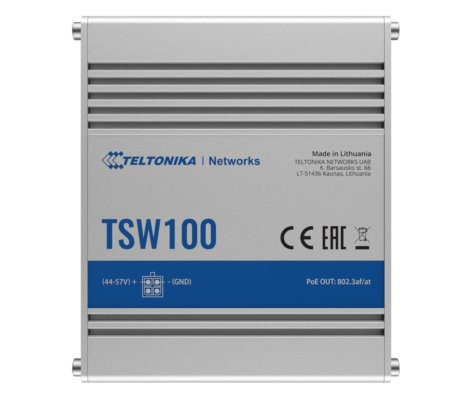

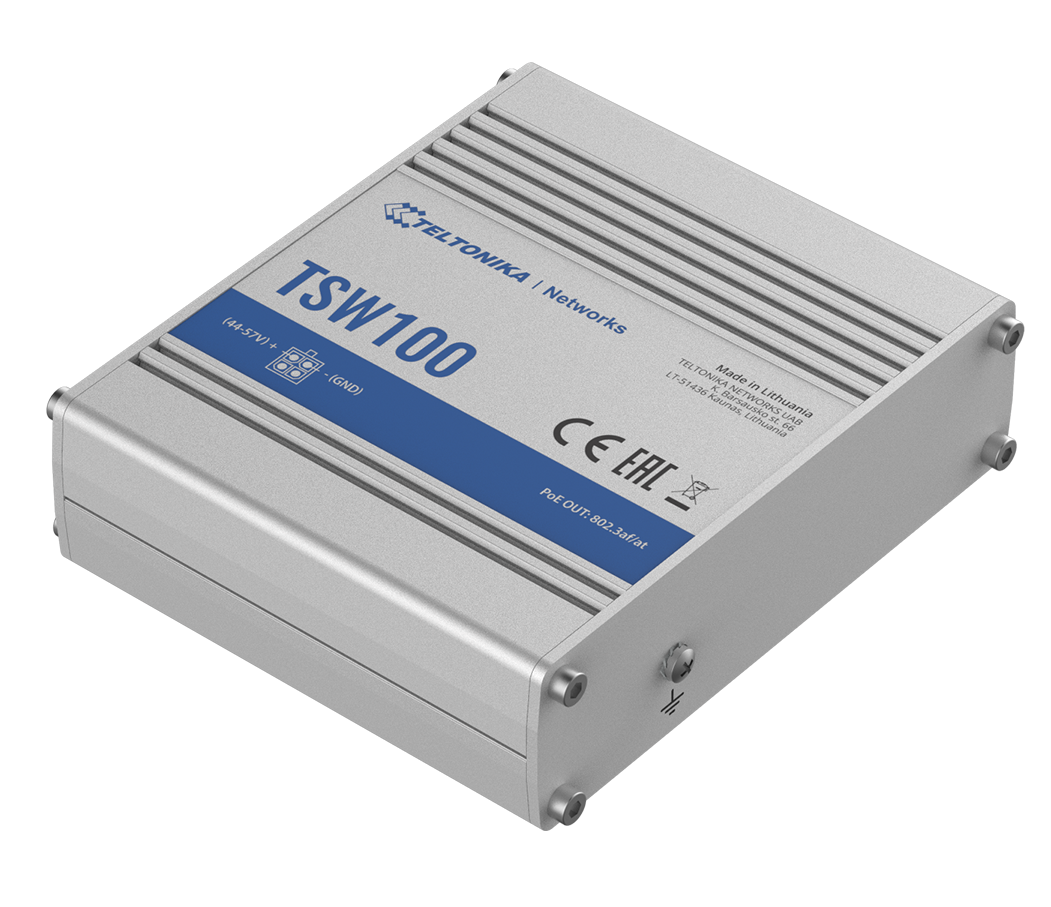

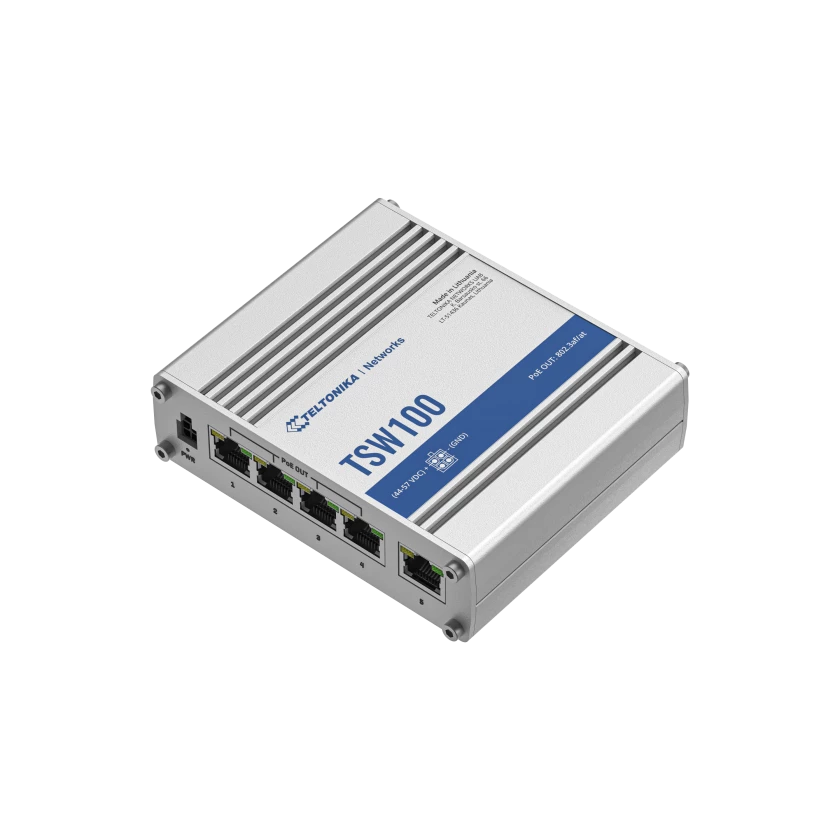

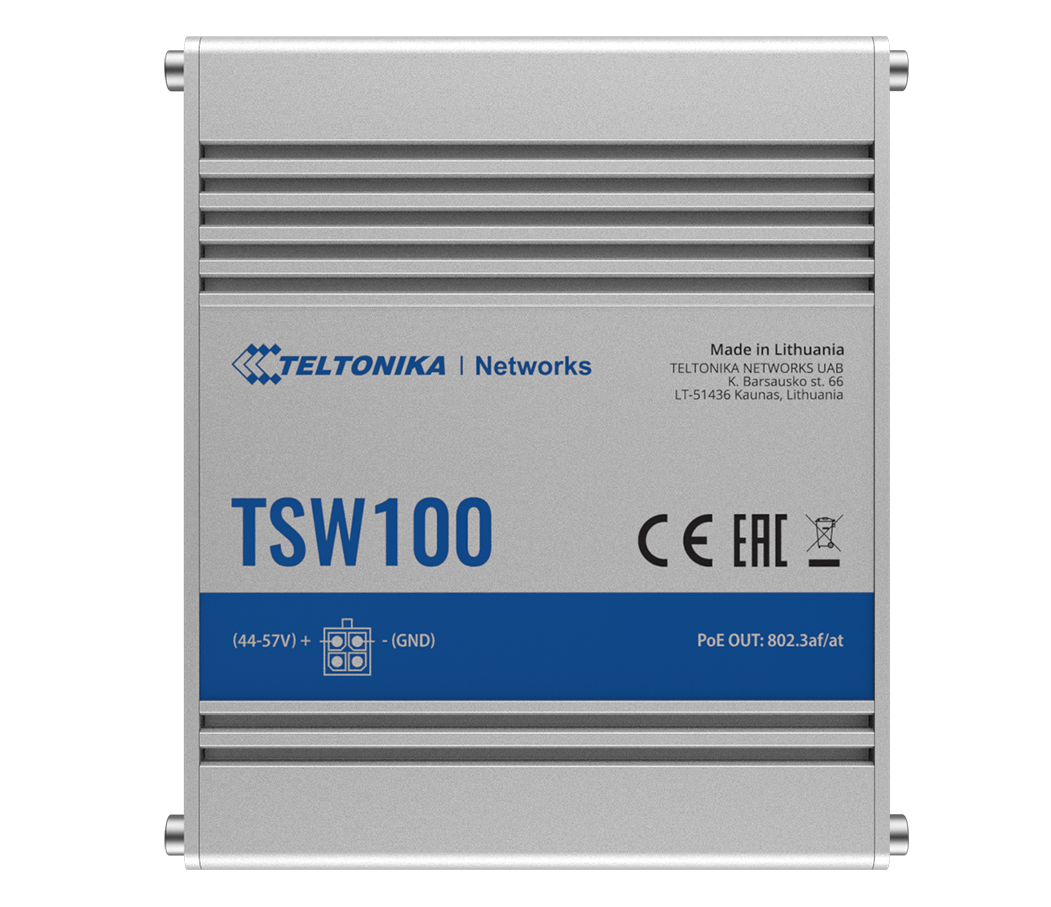

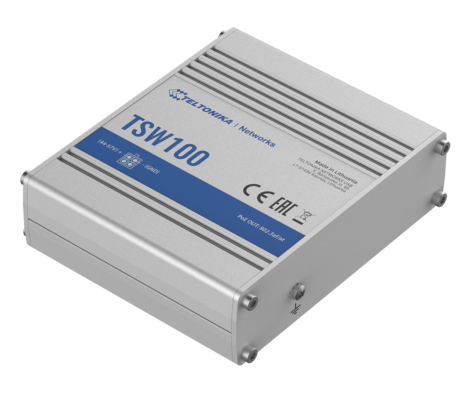

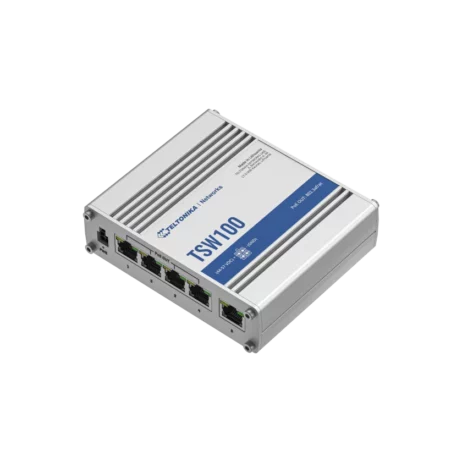

Teltonika Switch TSW100, POE

21.500 kr.

Vöruflokkar: , , , Merki: , , , , Framleiðandi:
Láttu aðra vita

Lýsing

Teltonika Industrial switch

Nánar  hér

Leiðbeiningar hér

ETHERNET
LAN 5 x LAN port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
POE
PoE ports Port 1- 4
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 120 W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking) 10 Gbps
Packet buffer 128 KB
Jumbo frame support 9216 bytes
MAC address table size 2K entries
POWER
Connector 4 pin industrial DC power socket
Input voltage range 7-58 VDC
Power consumption (idle/max no PoE/max) 2 W/9 W/129 W
PHYSICAL INTERFACES (PORTS, LEDS)

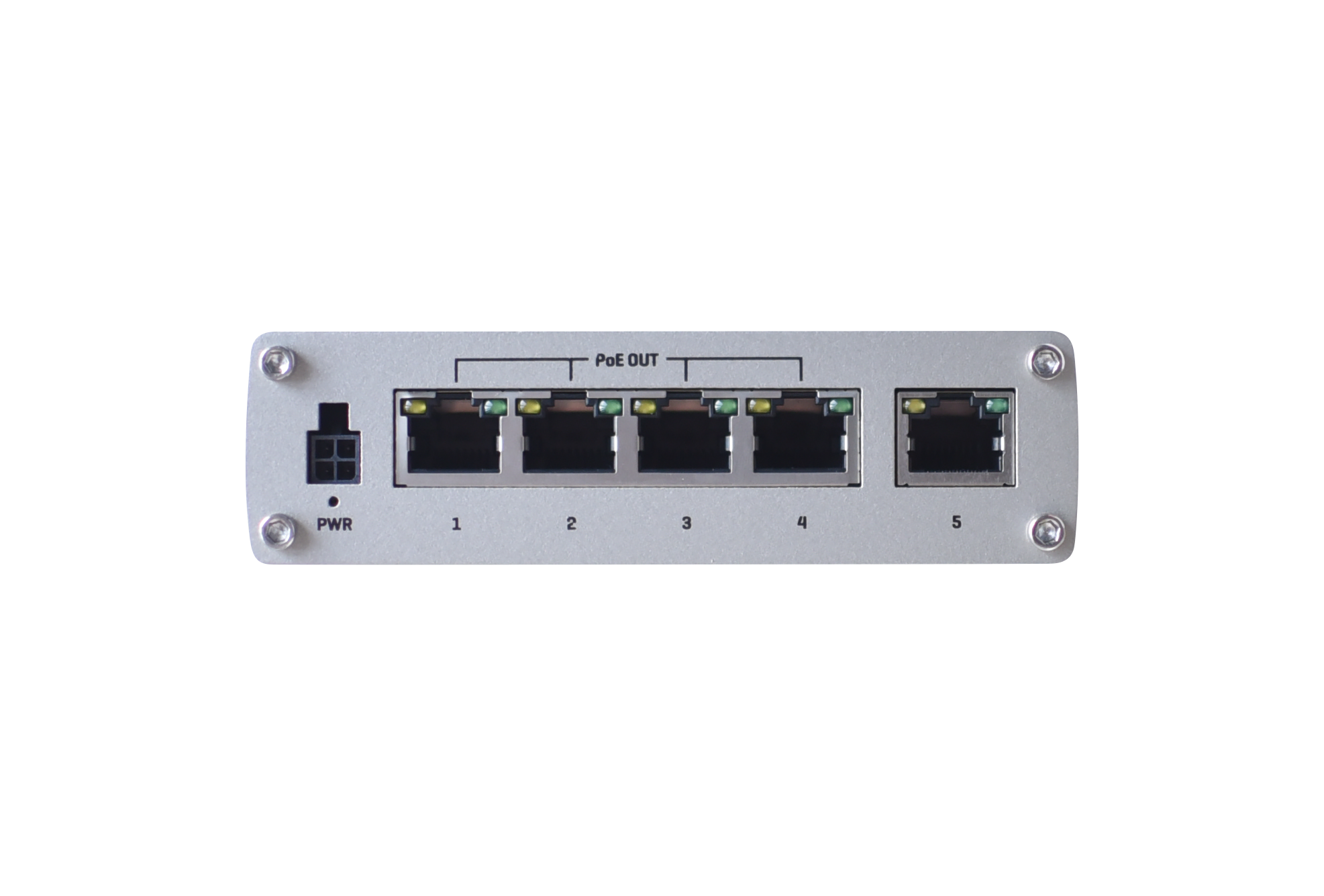

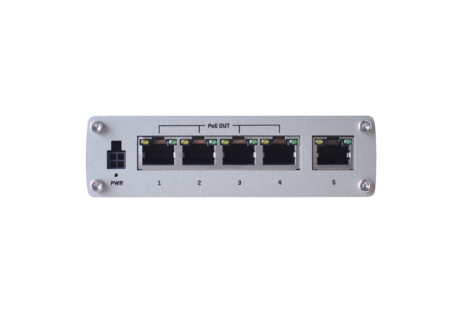

Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Status LED’s 1 x Power LED, 10 x LAN status LED’s
Power 1 x 4 pin DC connector
Ground 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Full aluminum housing
Dimensions 95 x 132 x 44 mm (L x W x H)
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
