TDcH mini höfuðstöð frá Triax

Vöruflokkur: Framleiðandi:
Láttu aðra vita

Lýsing

Þetta er ný höfuðstöð fyrir öll kapalkerfi. Þessi hentar vel fyrir stærri hótel og gistiheimili.  Það eru innbyggðar 16 inngangseiningar og 16 QAM útgangseiningar sem gerir þessa höfuðstöð sérstaklega netta miðað við mögulegan rásafjölda.

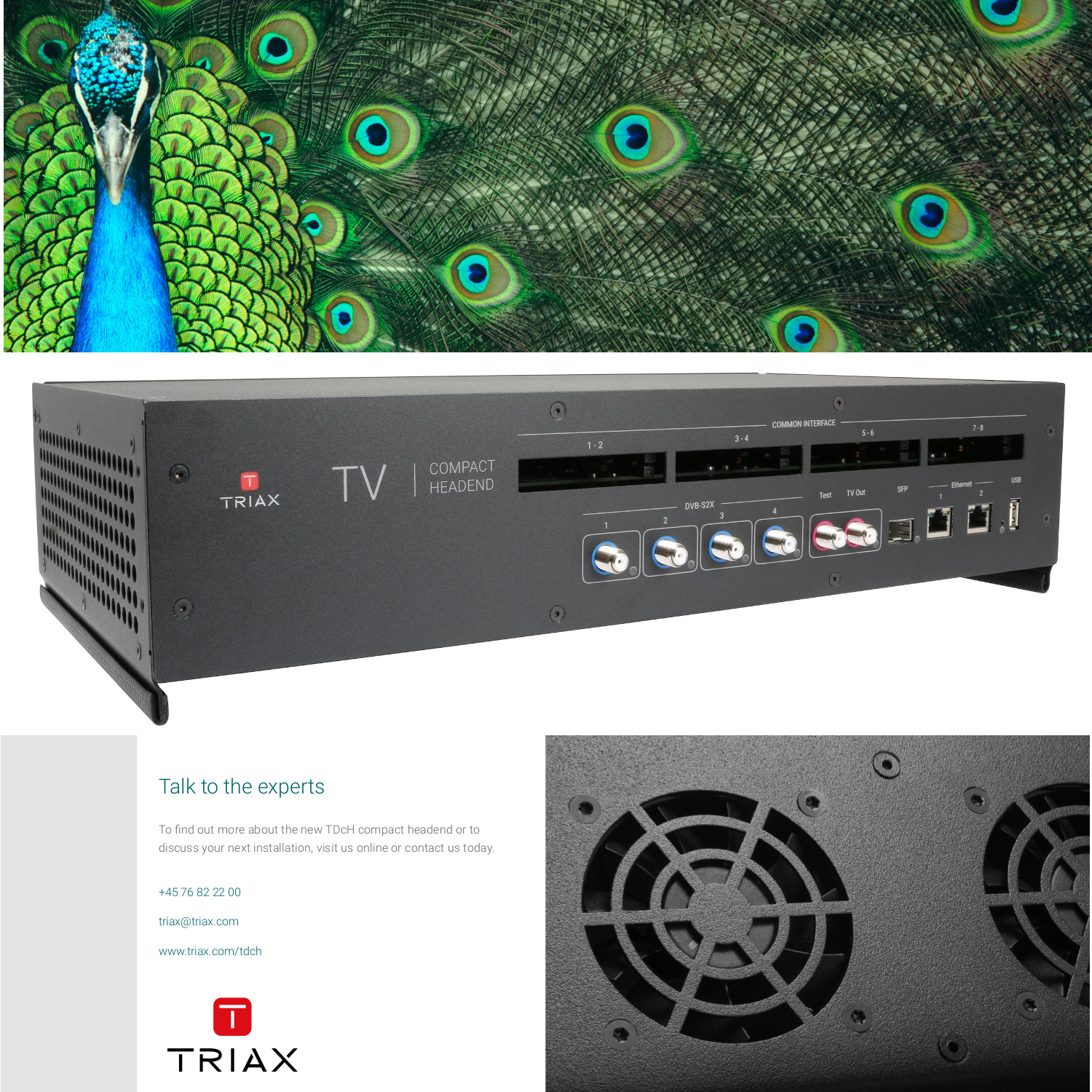

TDcH Compact Headend – exquisite engineering, finely tuned for perfect performance

Introducing the all-new TDcH Compact Headend: all our renowned headend expertise in a compact, affordable package.

The TDcH compact headend is optimised and engineered to meet specific TV distribution requirements in hospitality, multi-dwelling units and related sectors with an appealing, competitive cost per service ratio.

It is built on a brand new headend platform with new functionalities and features added via software updates throughout 2021.

“TRIAX headends are the truest expression of our values of reliability and innovation. We’re proud to be headend experts, devoting ourselves to their development for over 20 years. We strongly believe our TDcH compact headend is unmatched for quality and competitiveness, expanding our range to suit the requirements of any installation size and budget.”
Peter Lyhne Uhrenholt, CEO, TRIAX

Your natural choice for swift, efficient TV distribution

  • Save time and costs, with fast, easy installation and remote management
  • Fits elegantly into 19” racks
  • Reliable, innovative headend expertise from TRIAX

A sleek combination of intuitive software, central decryption and remote access

  • Central decryption with CI slots
  • FTA version available
  • Pre-configured for quick installation and reduced costs
  • DVB-S/S2 in, QAM out
  • Remote management for quick and easy support
  • Easy and central updates of TV services with LCN
  • Straightforward setup and configuration via intuitive GUI
  • “Receptionist” dashboard

Product details – TDcH

DVB-S and DVB-S2 conversion to QAM with the possibility to decrypt services central in the headend. A Free To Air version is also available.

TDcH functions

Features
– 4 x SAT IF inputs with integrated multiswitch
– 16 x DVB-S2 tuners
– 8 x CI interfaces (FTA version is also available)
– 16 x QAM full band modulators
–  Electronically adjustable output level
–  Suitable for adjacent channels
–  Symbol rates and modulation individually adjustable
– Transport Stream Processing:
–  Network Information Table (NIT) for complete head-end station
–  LCN (Logical Channel Numbering)
– Service Filtering with the option for
–  Remove unwanted services
–  Remove services for minimize data rate
– HTML user interface via self-signed HTTPS
2. Inputs GUI



Products

tdch ci tdch fta
TDcH – CI interfaces TDcH – FTA





Headend material

Brochure preview technical Brochure preview commercial Brochure preview technical
TDcH Introduction Commercial brochure Technical brochure

Sjáðu nánar lausnir Triax myndrænt hér.

Fyrir meiri upplýsingar þá eru hér bæklingar:

Leitið tilboða.

Bæklingur um TDH og TDX

Bæklingur TDB Black Edition hér
