Lýsing

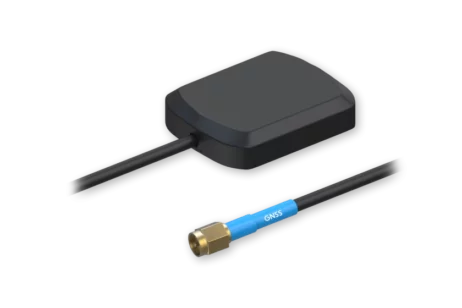

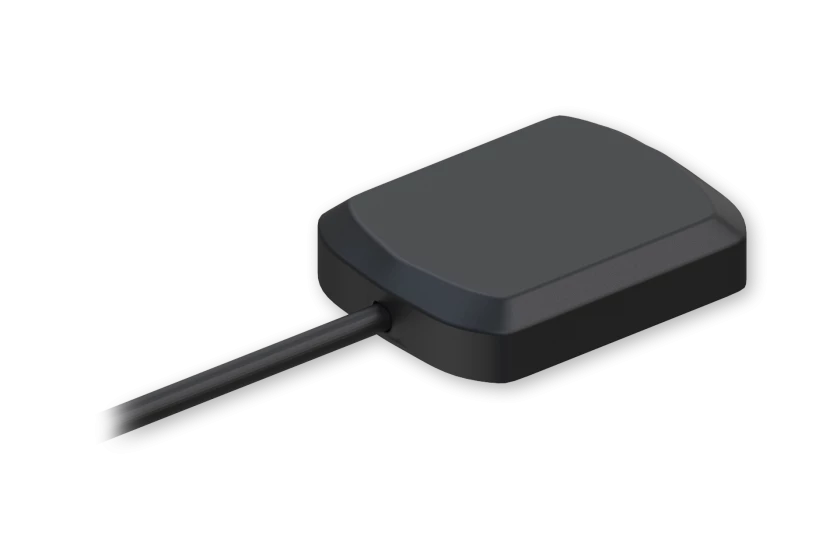

GNSS loftnet sem er límt niður.
Nánar hér
PARAMETER
- Frequency range 1575 ~ 1602 MHz
- Polarization RHCP
- Gain 2.0 dBi
- VSWR 1.5
- Impedance 50 Ω
- Axial ratio 3 dB
- LNA gain 26 ± 2 dB
- LNA noise figure 1.5 dB
- Supply voltage 2.2 – 5.0 VDC
- Current consumption 5 – 15 mA
- LNA VSWR 2.0
- Cable RG174, 3000 mm

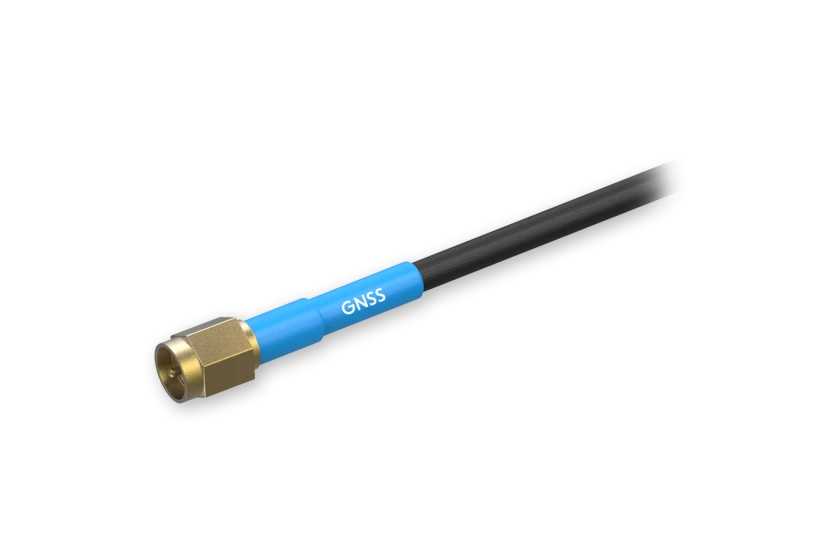

- Connector type SMA Male
- Mounting method Adhesive
- Operating temperature –40 ~ +85
- Operating relative humidity 95 %
- RoHS compliant ✓
