Lýsing
360°, 6 dB LTE – 2G/3G/4G/5G loftnet sérstaklega gert fyrir báta, húsbíla og ferðavagna. Þar sem að er lélegt netsamband er gott að nota þetta til að bæta móttökuskilyrðin. Tengist beint í router.

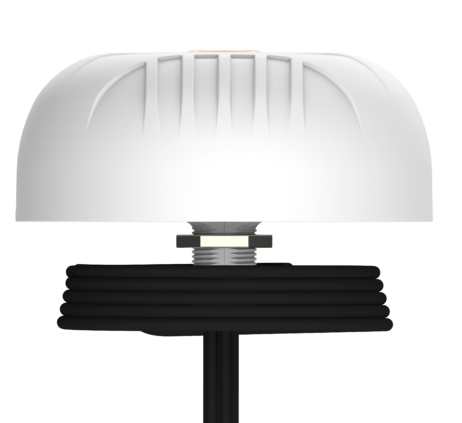

The MIMO-4-17 is a 7-in-1 high performance, multi frequency antenna within a single housing. The antenna provides four cellular, two Wi-Fi and a GPS/GLONASS antenna. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications, as well as Wi-Fi application from 5 to 6 GHz.
The antenna also provides two dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 2×2 MIMO capability. The MIMO-4-17 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements, provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.
| SKU | A-MIMO-0004-V1-17-B | A-MIMO-0004-V1-17-W |
|---|---|---|
| COAX Cable Type | RTK-031 | RTK-031 |
| COAX Cable Length | 2m | 2m |
| Color | Black | White |
