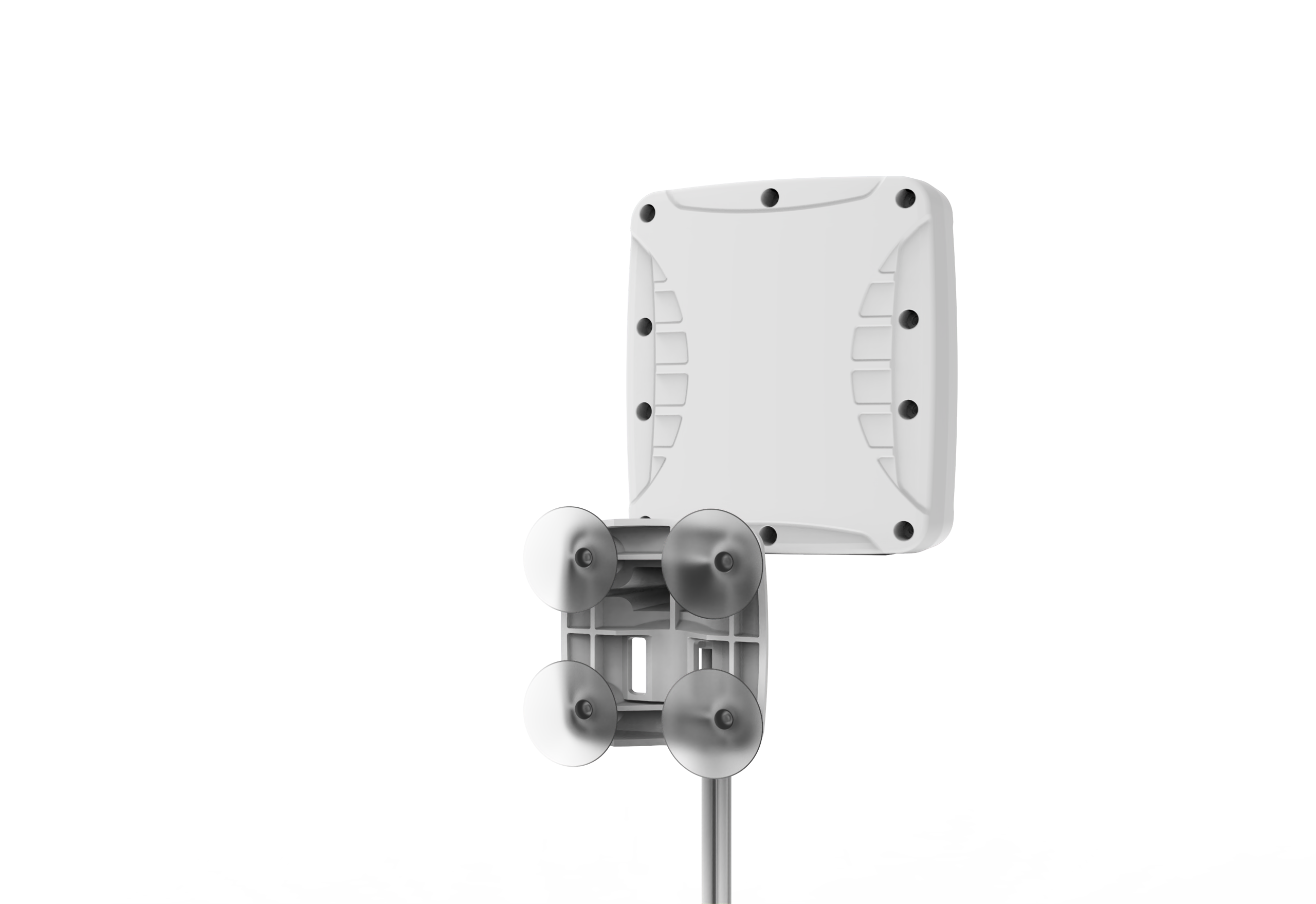

4/5G loftnet, 3dB – 4GXPOL-1-5G-21

19.850 kr.

Væntanlegt á lager!

Láttu aðra vita


360°, 3 dB LTE loftnet. Þetta hentar vel þar sem að er lélegt netsamband. Tengist beint í router.

X-Polarised, Omni-Directional, 2X2 LTE MIMO Antenna; 790 – 960 MHz, 1.6 dBi; 1710 – 3800 MHz, 4 dBi

• Exceptional performance over the main 4G/5G bands
• High gain for the antenna size
• Wideband 2X2 or 4X4 MIMO 4G/5G antenna
• Backwards compatible 2G/3G/4G/LTE antenna (5G Ready)
• Weather, dust and vandal resistant enclosure (IP 65)

The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 – 3800 MHz bands as well as the in demand lower 698 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz, with a peak gain of 4 dBi across the frequency bands of operation.

The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.

SKU A-XPOL-0001-V2-21 A-XPOL-0001-V2-41
Coax Cable Type HDF-195 HDF-195
Coax Cable Length 5.00m 5.00m
Connector Type SMA (m) SMA (m)
Colour White White
