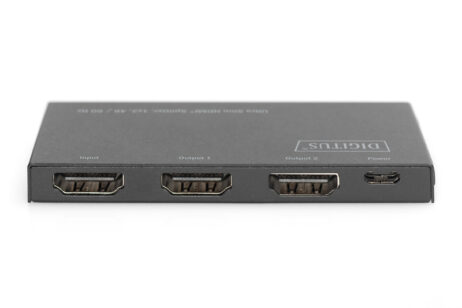

Ultra Slim HDMI Splitter, 1×2, 4K/60Hz HDR, HDCP 2.2, 18 Gbps, Micro USB powered
Splits one HDMI signal on two displays – supports UHD 4K / 60 Hz with HDR
- Resolutions of up to 4K / 60 Hz (4:4:4)
- Full 18 Gbps – for a crystal clear display of UHD contents
- Supports HDR & HDCP 2.2
- Power supply via Micro USB (charging adapter, TV, notebook)
- Cascading of up to 8 splitters in a row
- Ultra slim design
- Compatible with the latest Ultra High Definition (UHD) standards
- Protection from Electrostatic Discharges (ESD)
- Plug and Play
The DIGITUS® high-performance HDMI Splitter splits your HDMI device’s audio and video signals on two screens, TVs or projectors with a resolution of UHD 4K / 60 Hz. No more tedious reconnecting your cables. Additionally, HDR, HDCP 2.2 and 3D are supported – also a total width of 18 Gbps for fluent playback in excellent quality. The HDMI® splitter can be supplied via an existing USB port located on the TV device or, alternatively, via a USB charging adapter using electricity. You can cascade several splitters up to 8 levels.
Technical Details
- Supports HDMI® resolutions of up to 4K / 60 Hz (4096 x 2160p)
- Data transfer rate: 18 Gbps (6 Gbps per channel)
- Supports: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0
- Supports 36bit Deep Color (12 Gbps per channel)
- Supports HDCP 2.2 / 1.4
- Supports: 3D
- Supports: HDR (High Dynamic Range)
- Supports cascading of up to 8 splitters
- Operating temperature: 0°C ~ 45°C
- Operating humidity: 10% – 85% RH (non-condensing)
- Power consumption: 2 W (5 V/ 0.4 A)
- ESD protection: +/- 8 kV air insulation discharge, +/- 4 kV contact discharge
- Housing: Metal
- Color: Black
- Weight: 60 g
- Dimensions: L 8.3 x W 4 x H 0.9 cm
- Video connection ports: HDMI
- Number of ports: 2
- HDTV Resolution max.: 4096 x 2160 Pixel, 60Hz
- HDTV Standard: Ultra HD 4K
- Signal input: HDMI
- Signal output: HDMI
Package content
- Ultra Slim HDMI Splitter, 1×2, 4K / 60 Hz
- USB A on Micro USB connection cable (power supply)
- User manual
