Lýsing

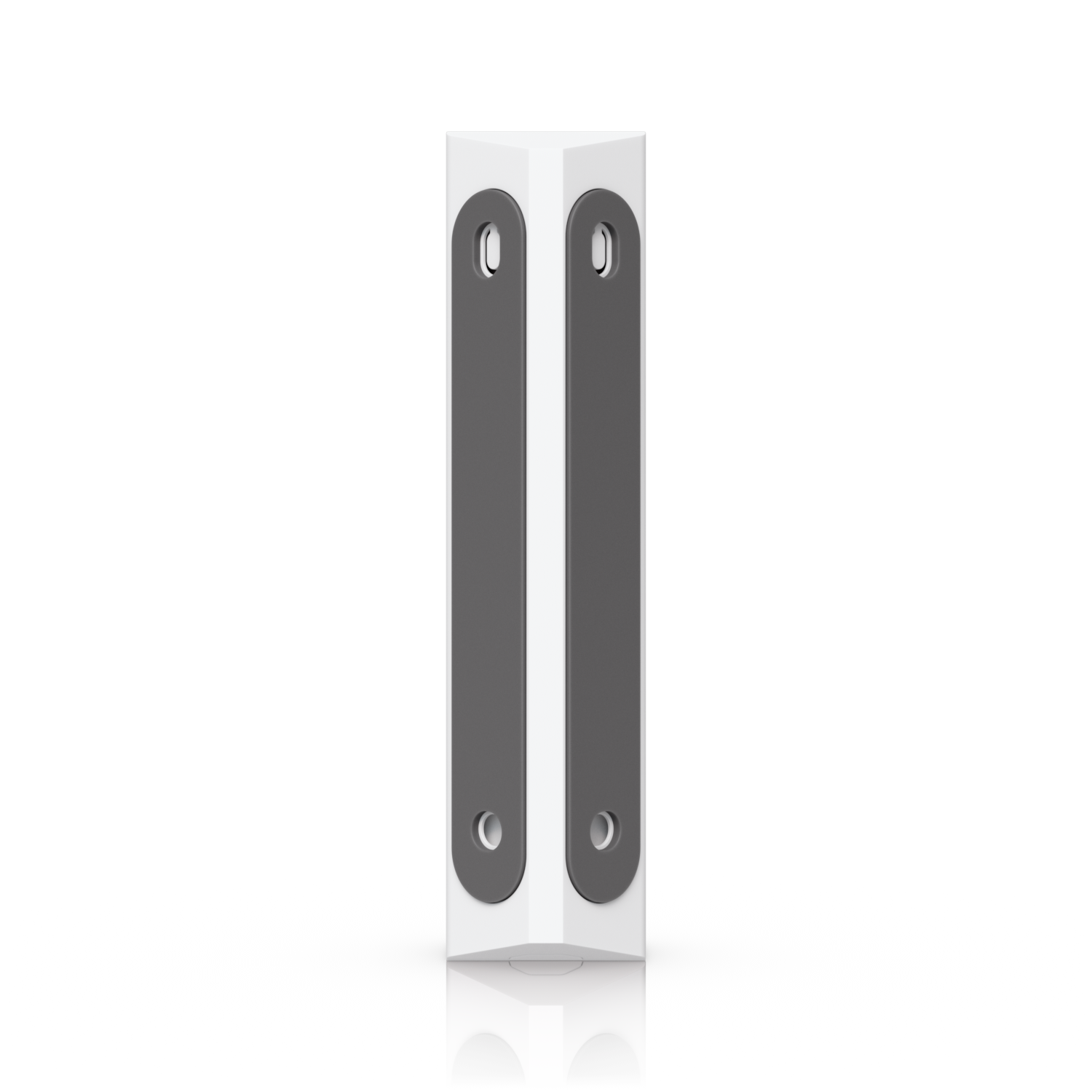

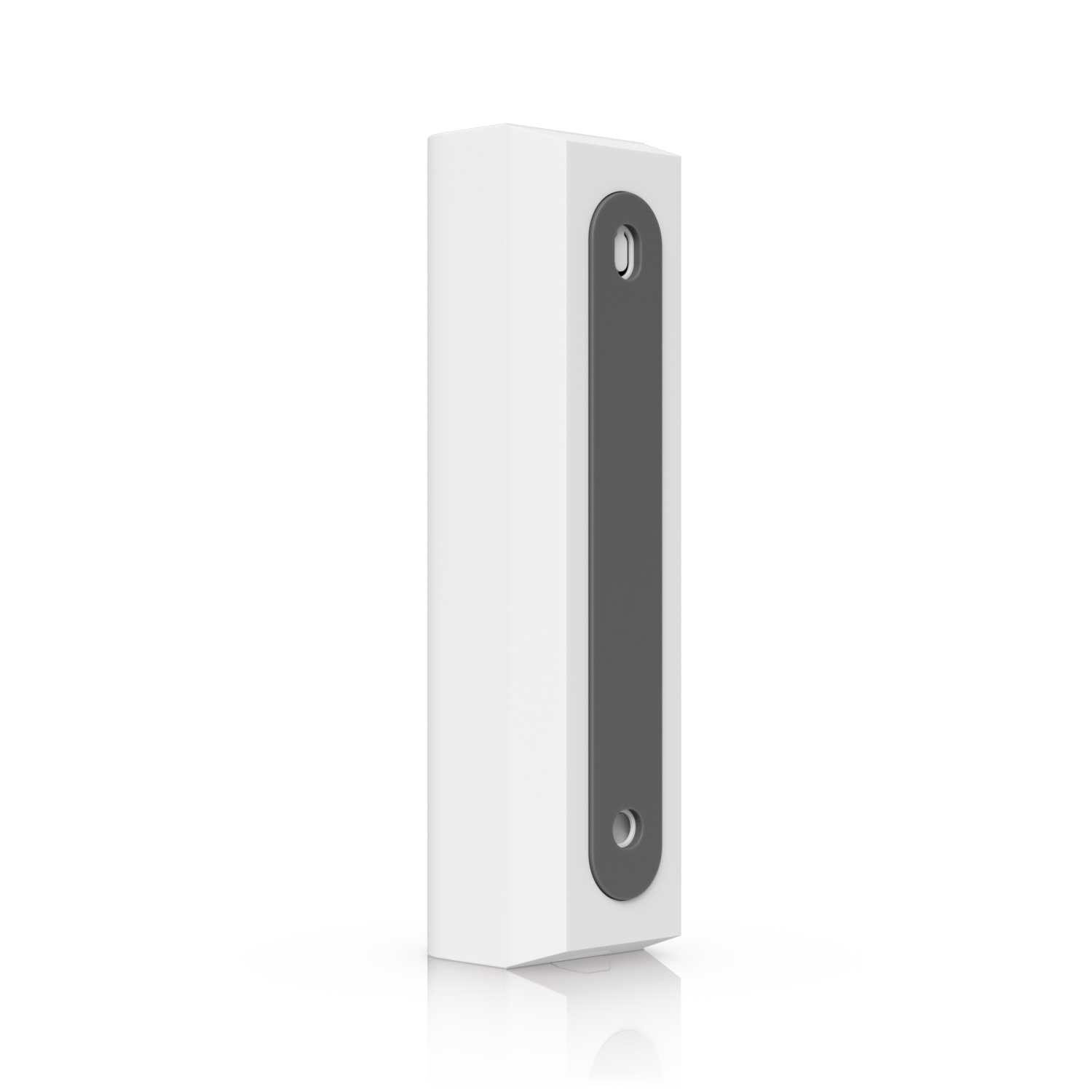

Dimensions Device with wall mount: 93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x 0.97″) Device with corner mount: 93.5 x 22.5 x 27.9 mm (3.7 x 0.89 x 1.1″)
Mounting Adhesive and screw mount
- UniFi Application Suite Protect
Connectivity SuperLink (Proprietary)
Operating Frequency
- US 915.6–927.6 MHz
- EU 865.1–869.5 MHz
Antenna Gain
- SuperLink 1 dBi Max.
TX Power
- SuperLink 14 dBm
Max. Range
- SuperLink 2 km (1.2 mi)
Sensor Features
- Horizontal PIR Sensor Detection range up to 1.5 m (4.9 ft)
- Vertical PIR Sensor Detection range up to 6 m (19.7 ft) with pet immunity
Max. Power Consumption 22.6mW
Supported Voltage Range 3V

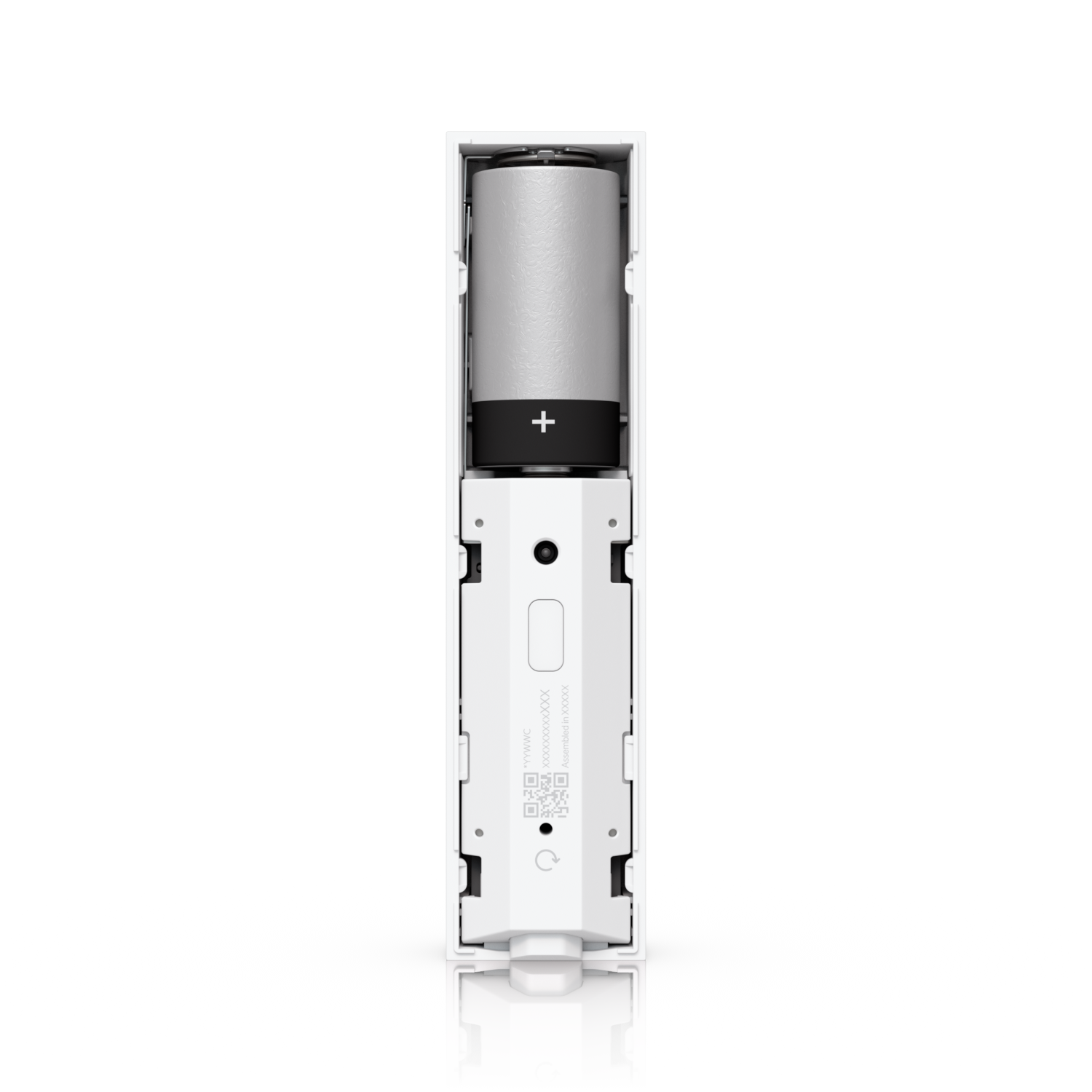

Power Method Lithium battery CR123A
Battery Life Up to 6 years
Weight 45 g (1.6 oz)
Enclosure Material Polycarbonate, high-density polyethylene (HDPE)
Mount Material Polycarbonate
Buttons (1) Factory-reset (1) Function button (1) Tamper switch
LEDs (1) Status: R/B/W (1) Signal: B/R
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
NDAA Compliant ✓
Application Requirements
- Web Application UniFi Protect
Mobile App
UniFi Protect iOS™ and Android™
