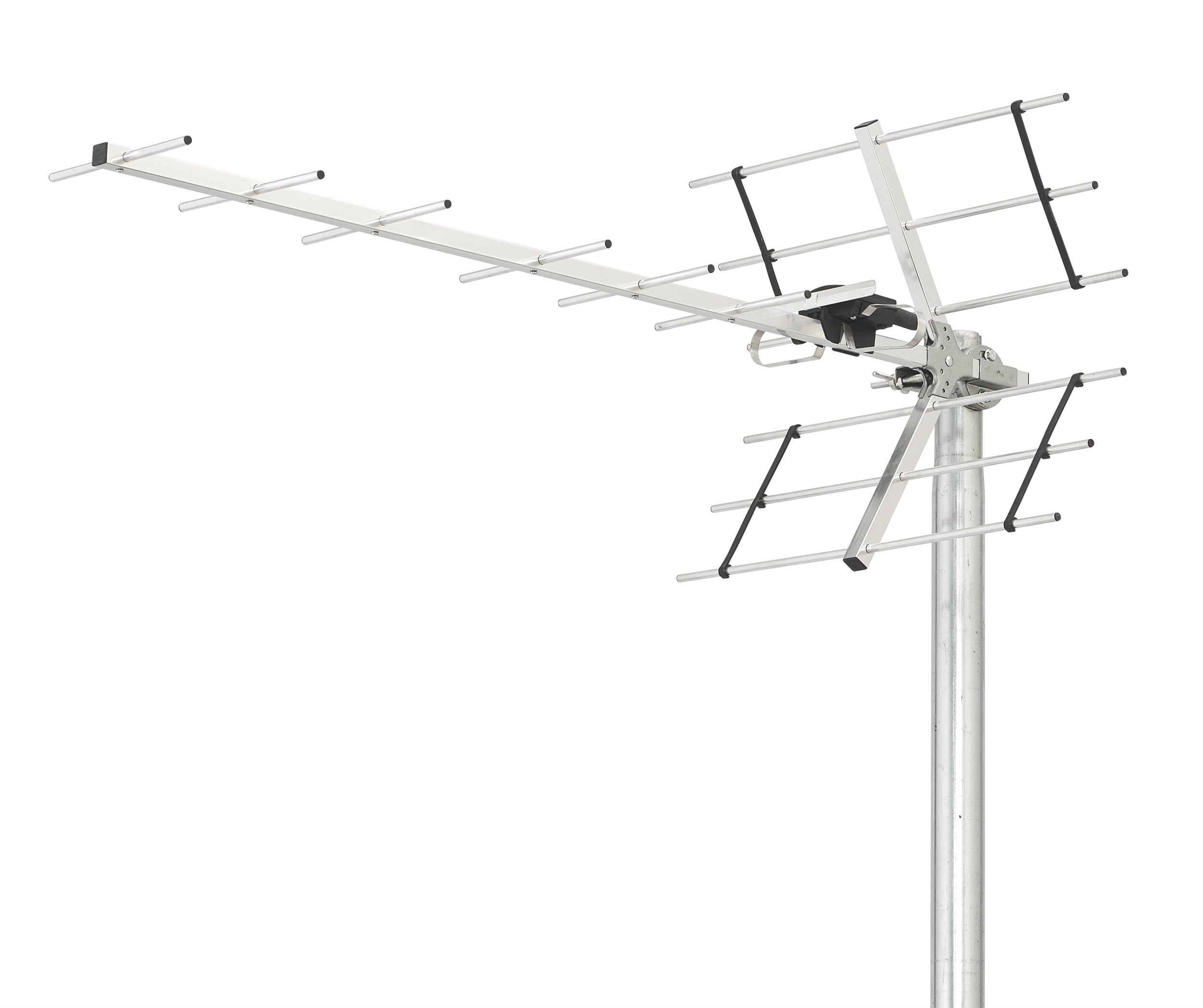

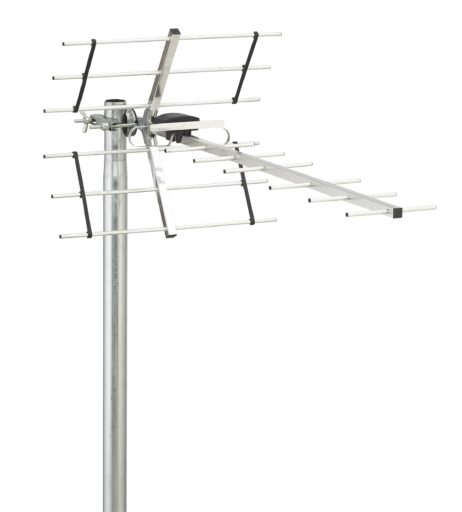

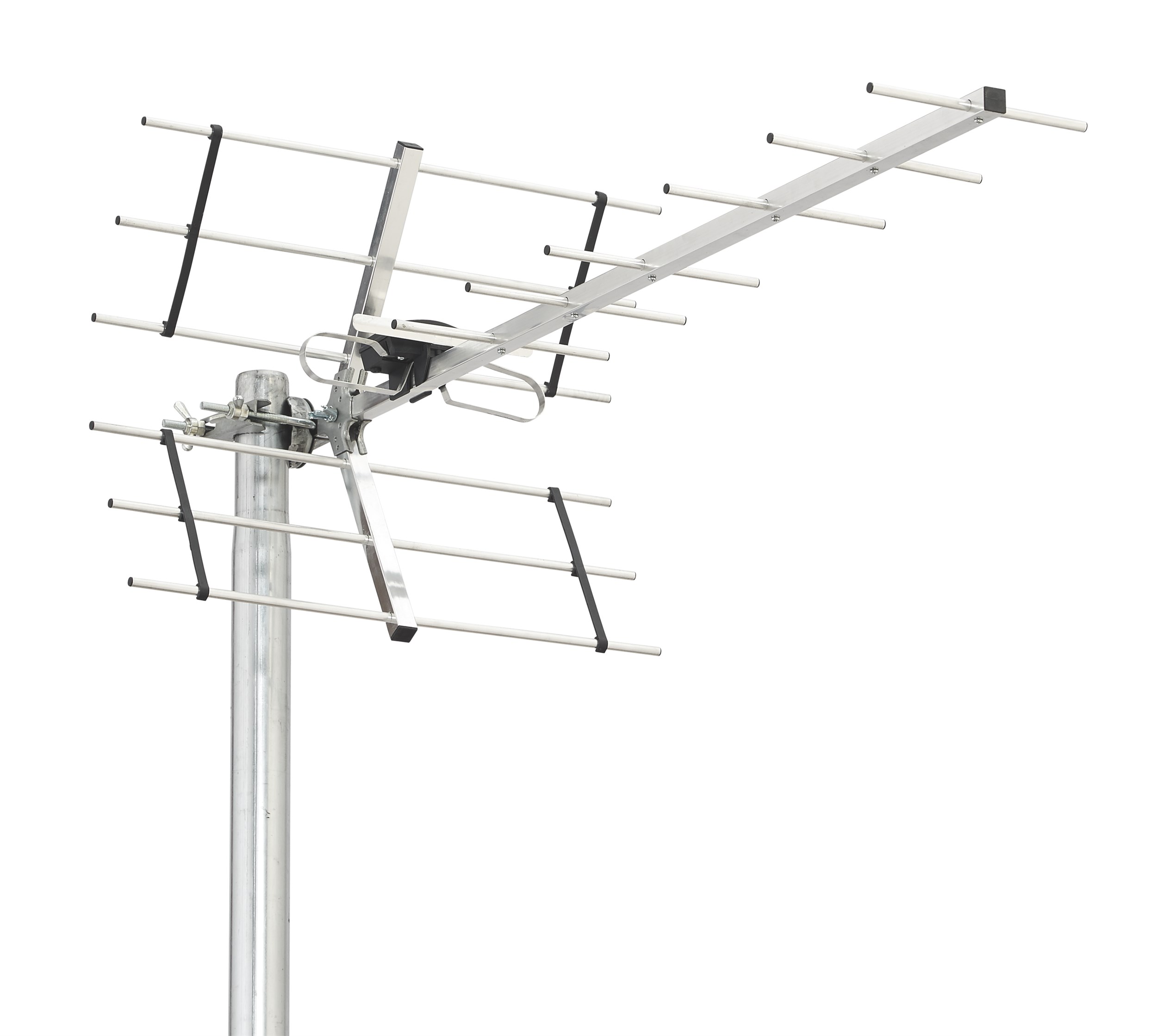

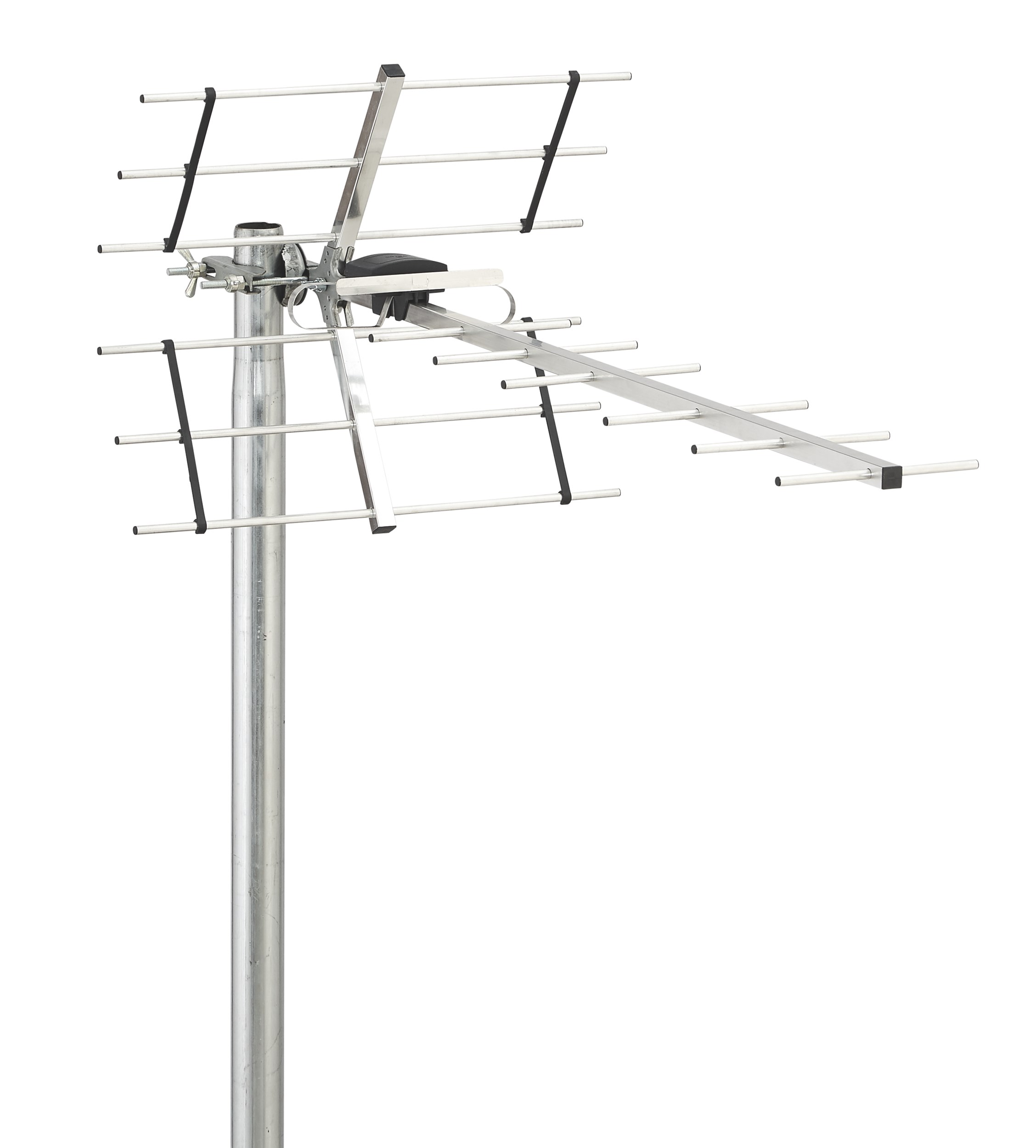

UHF loftnet, Triax Digi14

7.900 kr.

Vöruflokkar: , Merki: , ,

Lýsing

TRIAX UHF LTE 700 Loftnet

Triax Digi6W UHF loftnet. Þetta loftnet hentar vel þar sem að skilyrði eru góð fyrir móttöku. Það er með F tengi og hentar fyrir stafræna móttöku. Er með LTE síu.

Disruption free installation from rooftop to outlet.

  • Interference protection from LTE 700 & 800 signals

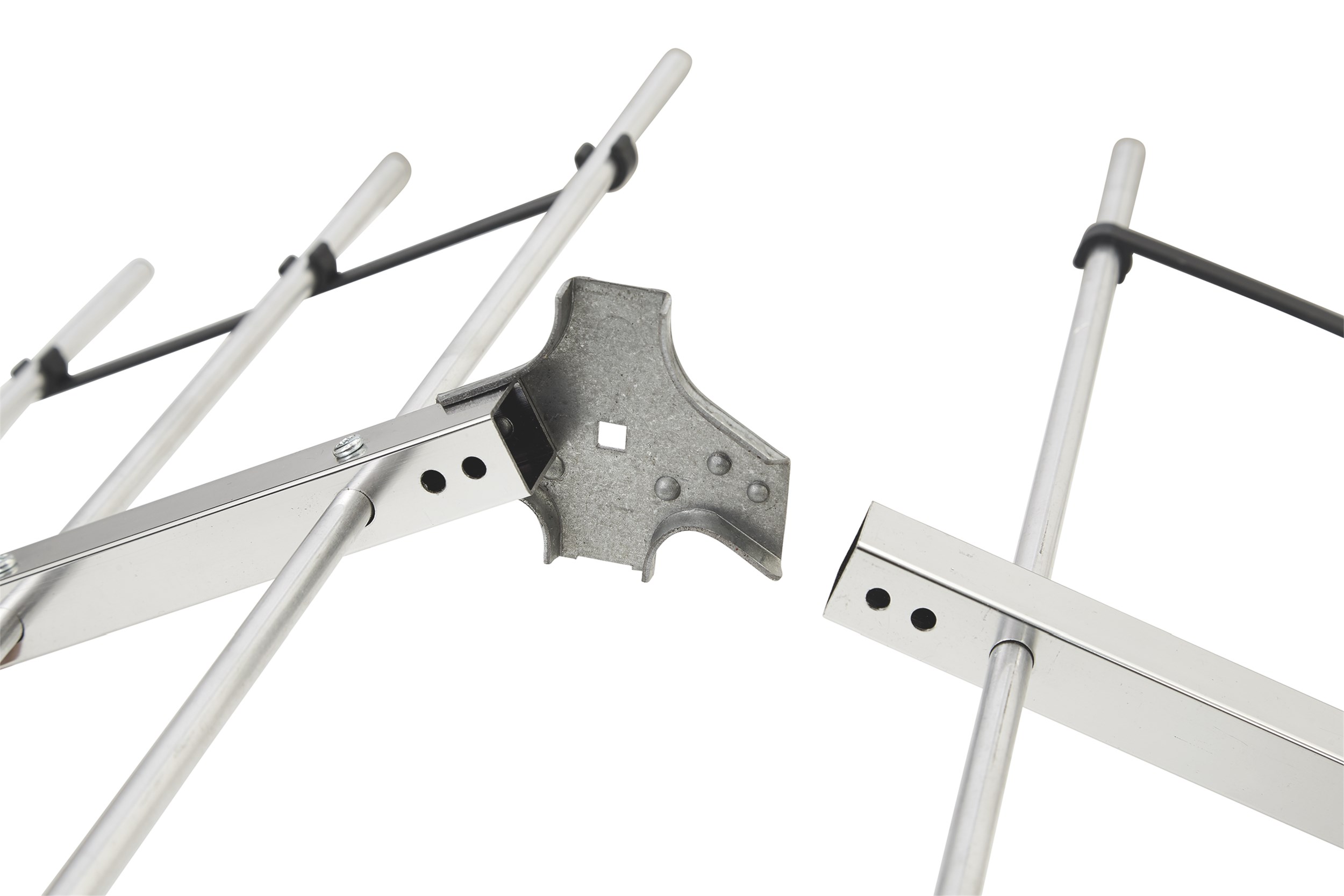

  • Quick and easy installation with semi-assembled aerials
  • Mechanical filtering for higher gain
  • Reliable high-quality aerials secures end-consumer satisfaction
  • Corrosion and weather proof dipole housing
  • Designed to receive DTT signals in the 470…694 MHz range
  • Access to reliable, expert support from TRIAX

Triax bæklingur

Type Digi 14
FREQUENCY
Band B IV/V UHF
Channels 21…48
Frequency range UHF 470…694 MHz
LTE protection 700
GAIN
Gain 13.5 max dBi
Gain @ 474 MHz (Ch. 21) 10.9 dBi
Gain @ 602 MHz (Ch. 37) 11.1 dBi
Gain @ 694 MHz (Ch. 48) 11.5 dBi
LOSS
Rejection @ 758 MHz (Ch. 56) 3.8 dB
Rejection @ 788 MHz (Ch. 60) 8.3 dB
ELECTRICAL
Front to back ratio – horisontal 23 dB
CONNECTORS
Connector Type F-female
MECHANICAL
Elements 14
Windload 54 N
Beamwidth horisontal ±30 °

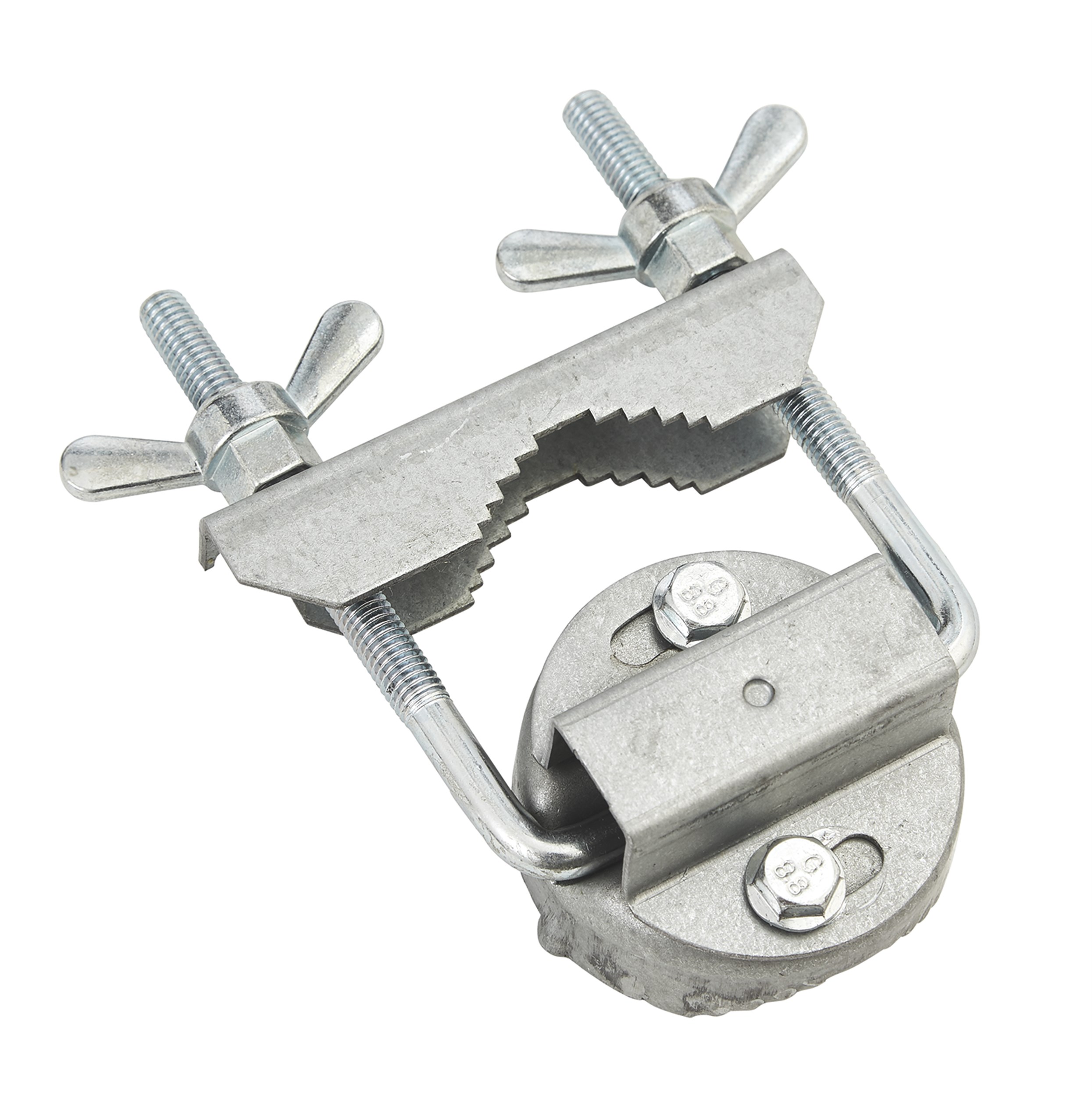

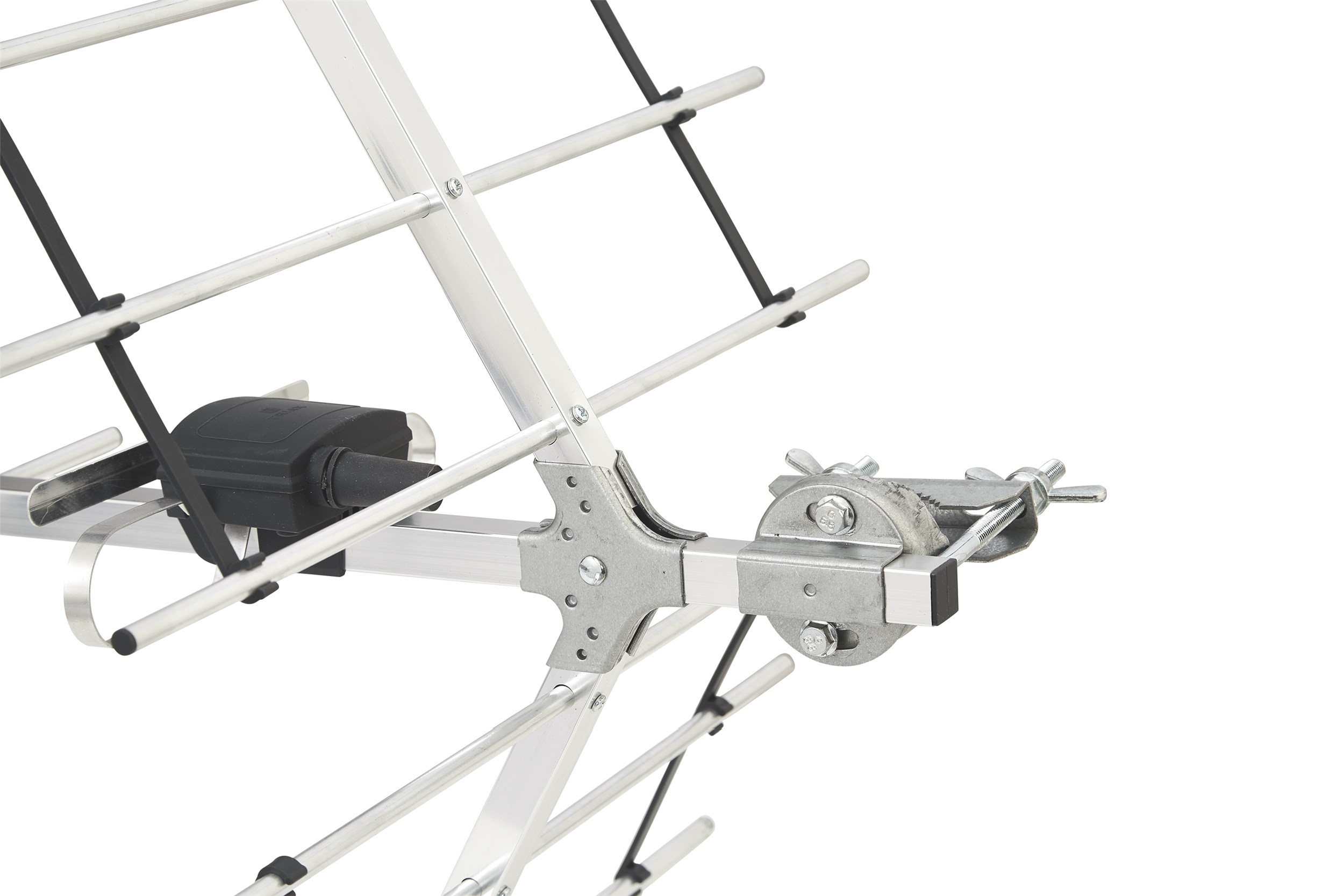

Bracketry Mast
Main material Aluminium
Product Length 1085 mm
Product Width 480 mm
Packing QTY 1
Packaging Height 0,075 m
Packaging Width 0,230 m
Packaging Depth 1,100 m
Packaging Volume 0,019 m3
Net Weight 0,800 kg
Tara Weight 0,450 kg
Total Weight 1,250 kg
