Cutting-Edge Wi-Fi 7 Capabilities

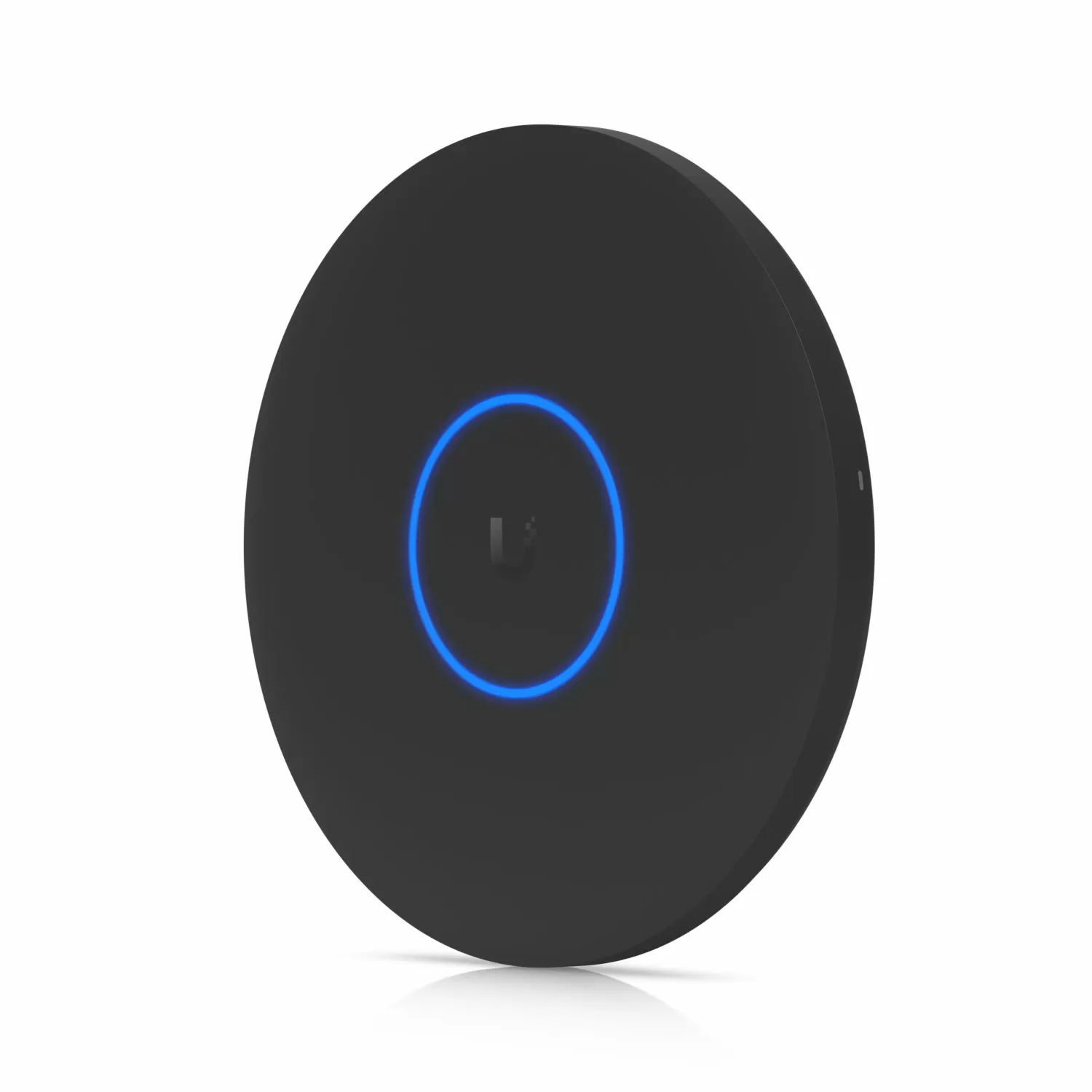

The Ubiquiti UniFi U7 Pro XGS access point leverages Wi-Fi 7 (802.11be) technology to deliver exceptional wireless performance across diverse environments. It operates on the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, employing a 2×2 (DL/UL MU-MIMO) configuration for 2.4 GHz and 6 GHz, and an enhanced 4×4 (DL/UL MU-MIMO) setup for the 5 GHz band. This design facilitates maximum data rates of 688 Mbps on 2.4 GHz, 8.6 Gbps on 5 GHz, and 5.8 Gbps on 6 GHz, ensuring high-throughput connectivity for bandwidth-intensive applications. The device supports channel bandwidths up to 320 MHz, optimizing spectrum utilization and minimizing latency. With the capacity to manage over 500 concurrent clients and a coverage area of approximately 160 m², the U7 Pro XGS is well-suited for high-density deployments requiring robust and reliable wireless access.
Intelligent Management
The U7 Pro XGS is equipped with a 10 GbE RJ45 port, providing high-speed wired connectivity that aligns with its advanced wireless capabilities. It supports Power over Ethernet (PoE++) with a maximum power consumption of 29W, simplifying installation by transmitting power and data through a single Ethernet cable. The access point integrates seamlessly with Ubiquiti’s UniFi Network platform, offering centralized management and monitoring. Advanced features include wireless meshing, band steering, 802.11r fast roaming, and guest network isolation, enhancing network efficiency and security. The device also supports up to 8 BSSIDs per radio and offers advanced Quality of Service (QoS) settings, allowing for granular control over network traffic to ensure optimal performance for critical applications.
Enhanced Management
The U7 Pro XG is equipped with a single 10 GbE RJ45 port, providing high-speed wired connectivity that aligns with its advanced wireless capabilities. It supports Power over Ethernet (PoE+) with a maximum power consumption of 22W, simplifying installation by transmitting power and data through a single Ethernet cable. The access point integrates seamlessly with Ubiquiti’s UniFi Network platform, offering centralized management and monitoring. Advanced features include wireless meshing, band steering, 802.11r fast roaming, and guest network isolation, enhancing network efficiency and security. The device also supports up to 8 BSSIDs per radio and offers advanced Quality of Service (QoS) settings, allowing for granular control over network traffic to ensure optimal performance for critical applications.
Dimensions ⌀215 x 32.5 mm (⌀8.5 x 1.3″)
WiFi Standard WiFi 7
Spatial Streams 8
Coverage Area 160 m² (1,750 ft²)
Max. Client Count 500+
Uplink 10 GbE

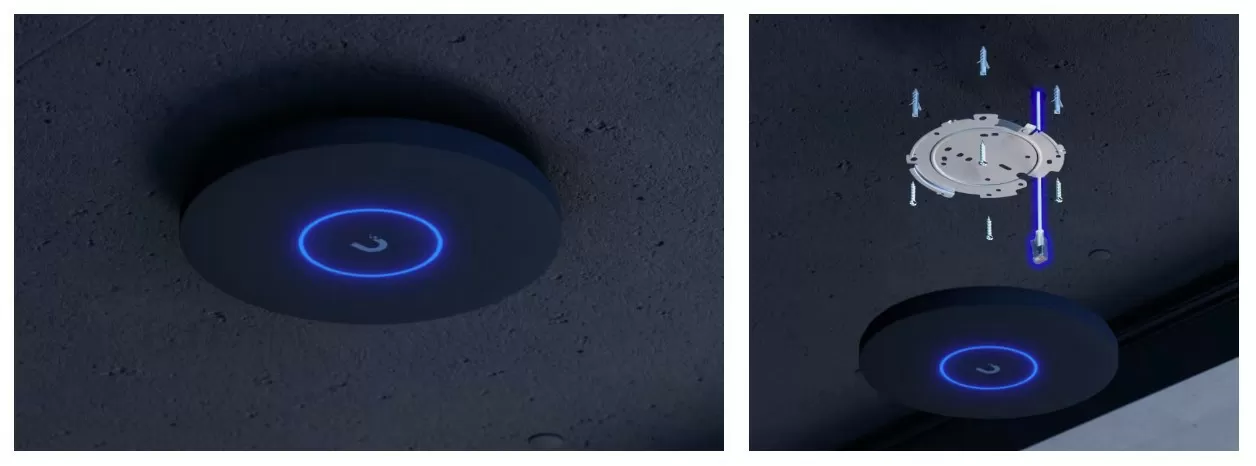

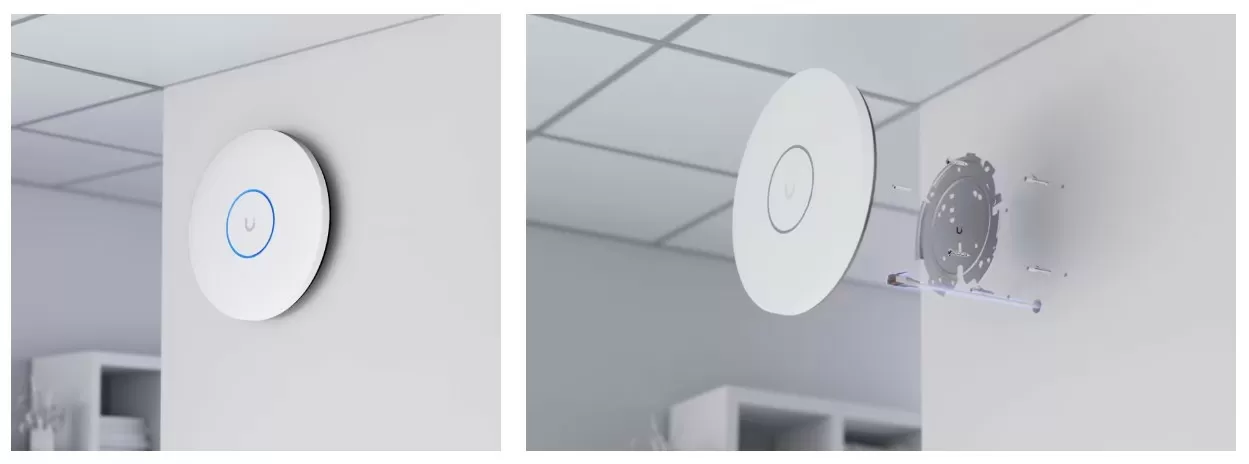

Mounting Ceiling, Wall (Lite Mount Included)
Power Method PoE++
MIMO
- 6 GHz 2 x 2 (DL/UL MU-MIMO)
- 5 GHz 4 x 4 (DL/UL MU-MIMO)
- 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
- 6 GHz 5.8 Gbps (BW320)
- 5 GHz 8.6 Gbps (BW240)
- 2.4 GHz 688 Mbps (BW40)
Antenna Gain
- 6 GHz 6 dBi
- 5 GHz 6 dBi
- 2.4 GHz 4 dBi
Max. TX Power
- 6 GHz 24 dBm
- 5 GHz 29 dBm
- 2.4 GHz 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates
- 802.11be (WiFi 7) 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
- 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11n 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
Wireless Meshing ✓
Band Steering ✓
802.11v BSS Transition Management ✓
802.11r Fast Roaming ✓
802.11k Radio Resource Management (RRM) ✓
Zero-Wait DFS ✓
Advanced Radio Management ✓
Real-Time Spectral Analysis ✓
Passpoint (Hotspot 2.0) ✓
Captive Hotspot Portal
- Custom Branding Landing Page ✓
- Voucher Authentication ✓
- Payment-Based Authentication ✓
- External Portal Server Support ✓
- Password Authentication ✓
- Guest Network Isolation ✓
- Private Pre-Shared Key (PPSK)
- WiFi Speed Limiting ✓
- Client Device Isolation ✓
- WiFi Schedules ✓
- RADIUS over TLS (RadSec) ✓
- Dynamic RADIUS-assigned VLAN ✓
Max. Power Consumption 29W
Supported Voltage Range 42.5–57V DC

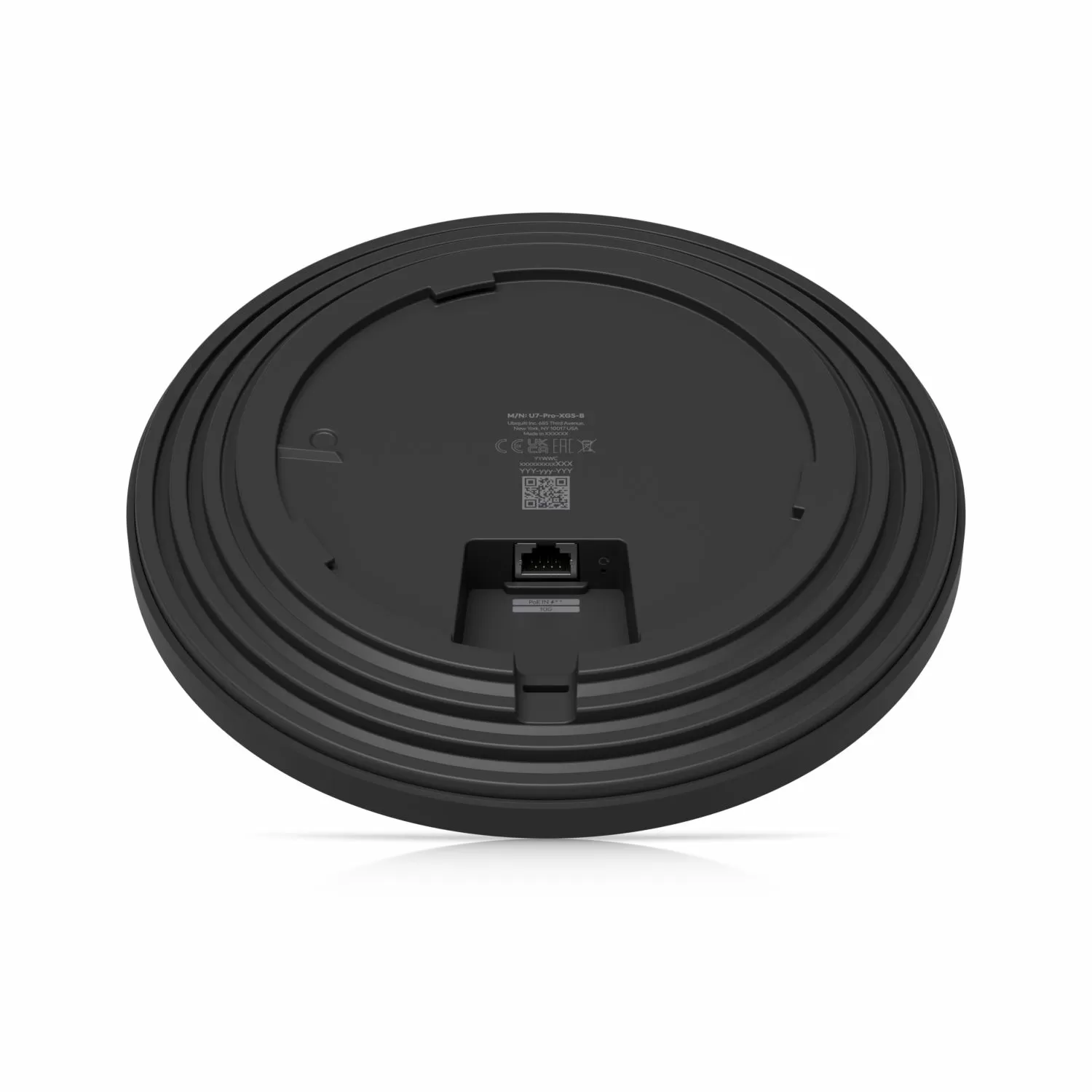

Networking Interface (1) 10 GbE RJ45 port
Weight 800 g (1.8 lb)
Management Ethernet
Enclosure Material UV-stabilized polycarbonate, aluminum alloy
Mount Material Stainless steel (SUS304), galvanized steel (SGCC)
LEDs
- System White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel: 05123-25-08356
Operating Frequency US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8: 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5850 MHz 5925 – 7125 MHz
Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
Application Requirements
- UniFi Network Version 9.0.114 and later (U7 Pro XGS – White) Version 9.1.120 and later (U7 Pro XGS – Black)
