Lýsing

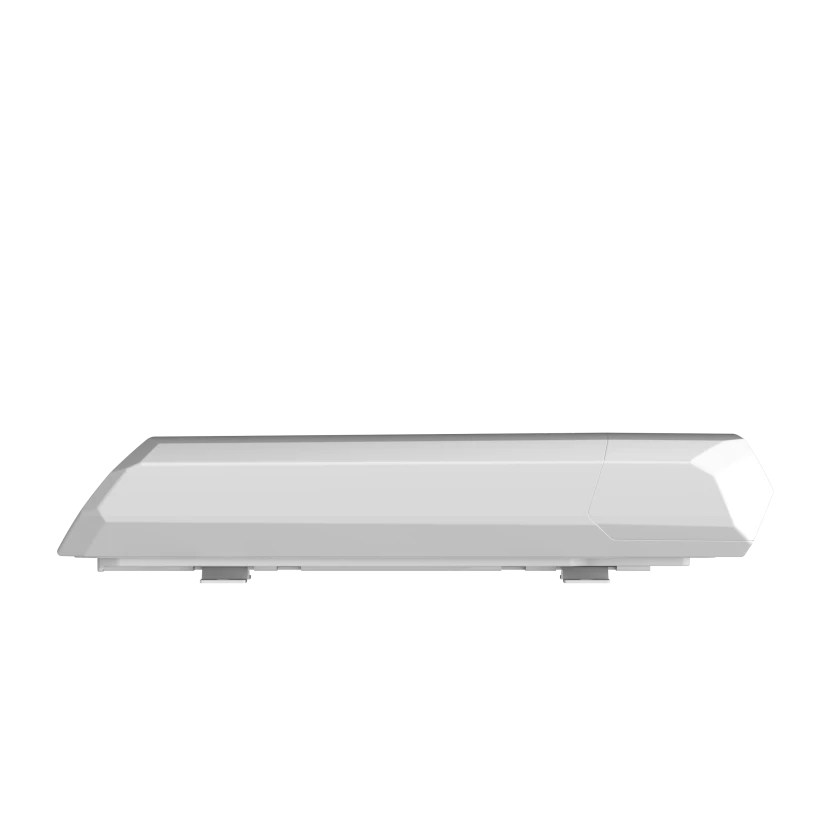

Beinir frá Teltonika. OTD140 er til að nota utandyra. Hann er öruggur LTE router fyrir aðstæður sem að þarf að hafa örugga tengingu. Hann tengið þig með öryggi við netið þar sem að 4G er fyrir hendi en ekki er möguleiki á ljósleiðara eða öðrum tengingum.
MOBILE
- Mobile module 4G (LTE) – LTE Cat 4 150 Mbps DL, 50 Mbps UL; 3G – 21 Mbps DL, 5.76 Mbps UL; 2G – 236.8 kbps DL, 236.8 kbps UL
- SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
- Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD Supports sending and reading Unstructured Supplementary Service Data messages
- Black/White list Operator black/white list
- Band management Band lock, Used band status display
- APN Auto APN
- Bridge Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough Router assigns its mobile WAN IP address to another device on LAN
ETHERNET
-
LAN 2 x ETH ports (can be configured as WAN), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
POE IN
- PoE ports 1 x PoE In
- PoE standards 802.3af/at
POE OUT
- PoE ports 1 x PoE Out
- PoE standards
- 802.3af and 802.3at Alternative B
- PoE Max Power per Port (at PSE) 24 W Max (power supply unit dependent)
NETWORK
- Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall Port forward, traffic rules, custom rules
- Firewall status page View all your Firewall statistics, rules, and rule counters
- Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology Visual representation of your network, showing which devices are connected to which other devices
- DHCP Static and dynamic IP allocation, DHCP Relay
- QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS Supported >25 service providers, others can be configured manually
- Network backup VRRP, Wired options, each of which can be used as an automatic Failover
- Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
- SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
- Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
- Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN Port and tag-based VLAN separation
- Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control Flexible access control of SSH, Web interface, CLI and Telnet
VPN
- OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN Method of building scalable IPsec VPNs
- SSTP SSTP client instance support
- ZeroTier ZeroTier VPN client support
- WireGuard WireGuard VPN client and server support
- Tinc Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
OPC UA
- Supported modes Client, Server
- Supported connection types TCP
MODBUS
- Supported modes Server, Client
- Supported connection types TCP
- Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
- Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
- Protocol HTTP(S), MQTT, Azure MQTT
- Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server
MODBUS MQTT GATEWAY
-
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
- Supported modes Station, Outstation
- Supported connection TCP
DLMS
-
DLMS Support DLMS – standard protocol for utility meter data exchange
MONITORING & MANAGEMENT
- WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
- FOTA Firmware update from server, automatic notification
- SSH SSH (v1, v2)
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
- TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT MQTT Broker, MQTT publisher
- SNMP SNMP (v1, v2, v3), SNMP Trap
- JSON-RPC Management API over HTTP/HTTPS
- RMS Teltonika Remote Management System (RMS)
IOT PLATFORMS
- Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
- ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
- Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
- CPU Mediatek, 580 MHz, MIPS 24KEc
- RAM 128 MB
- FLASH storage 16 MB
FIRMWARE / CONFIGURATION
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA Update FW
- RMS Update FW/configuration for multiple devices at once
- Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMISATION
- Operating system RutOS (OpenWrt based Linux OS)
- Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
- Development tools SDK package with build environment provided
- GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs.
INPUT / OUTPUT
-
Events Email, RMS, SMS
POWER
- Connector RJ45 Socket
- Input voltage range 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
- Input voltage range for PoE 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
- Power consumption Idle: < 2.5 W / Max: < 6 W / PoE Max < 21 W
PHYSICAL INTERFACES
- Ethernet 2 x RJ45 ports, 10/100 Mbps
- Status LEDs 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs
- SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
- Power RJ45, PoE In, 42.5 – 57.0 VDC
- Antennas 2 x Internal antennas
- Antennas specifications 1 x 698 – 960 / 1710 – 2690MHz, 50 Ω, VSWR <3.5, gain <3 dBi, omnidirectional 1 x 698 – 960 / 1710 – 2690MHz, 50 Ω, VSWR <3, gain <4.5 dBi, omnidirectional
- Reset Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
- Casing material Plastic (PC+ASA)
- Dimensions (W x H x D) 110 x 49.30 x 235 mm
- Weight 855 g
- Mounting options Mounting Bracket (for vertical flat surface or pole mounting)
OPERATING ENVIRONMENT
- Operating temperature -40 °C to 75 °C
- Operating humidity 0% to 90% non-condensing
- Ingress Protection Rating IP55
REGULATORY & TYPE APPROVALS
-
Regulatory CE, UKCA, EAC, UCRF, RCM
