Lýsing

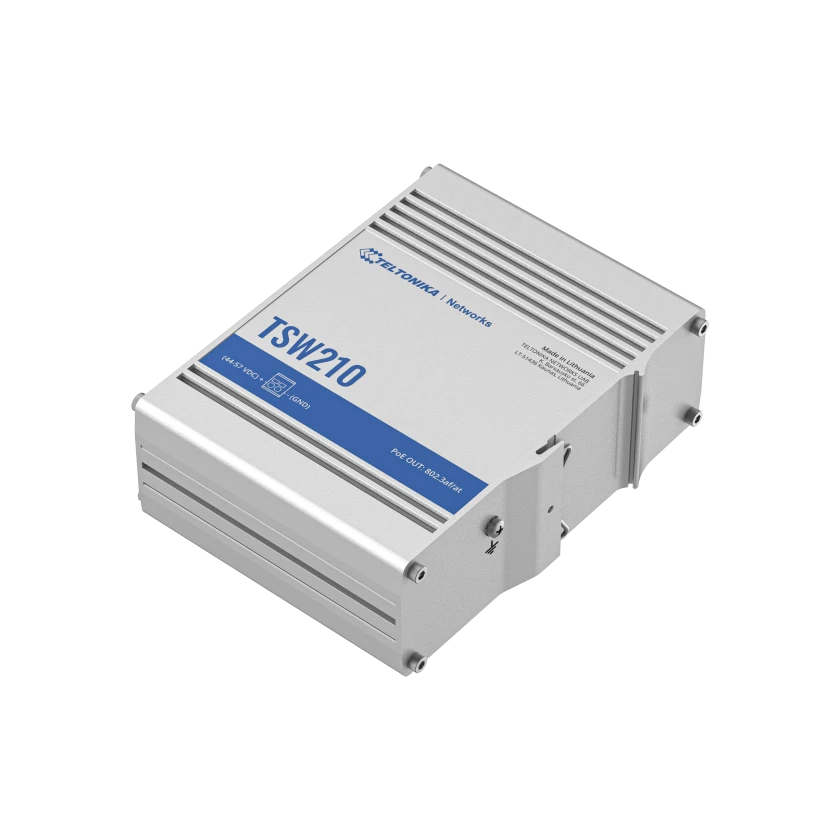

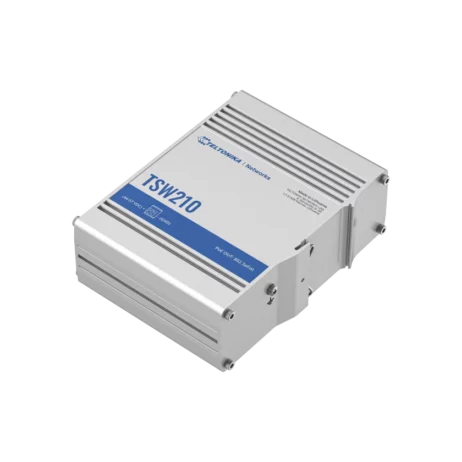

// TSW210 is industrial unmanaged switch from Teltonika Networks.
// TSW210 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports .
// This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
Allar upplýsingar hér
Spennugjafi hér
ETHERNET
- LAN
- 8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
PERFORMANCE SPECIFICATIONS
- Bandwidth (Non-blocking) 20 Gbps
- Packer buffer 128 KB
- MAC address table size 2K entries
- Jumbo frame support 9216 bytes
POWER
- Connector 4-pin industrial DC power socket, 2-pin industrial DC power socket
- Input voltage range 7-57 VDC
- Power consumption Idle: ~1.03 W / Max: 3.71 W
PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS, SIM)
- Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
- Status LEDs 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
- Power 1 x 4 pin power connector, 1 x 2-pin industrial DC power socket
- Other 1 x Grounding screw
PHYSICAL SPECIFICATION
- Casing material Full aluminum housing
- Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
- Weight 500 g
- Mounting options DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
- Operating temperature -40 °C to 75 °C
- Operating humidity 10% to 90% non-condensing
- Ingress Protection Rating IP30
