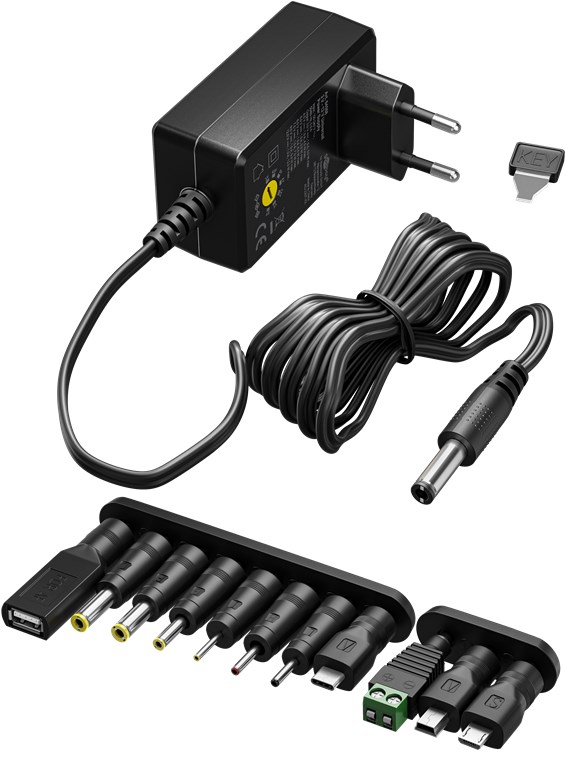

Universal Power Supply (5 V – 15 V max. 36 W / 3.0 A)
incl. 8x DC adapters
- Switching power supply for charging and operating electric devices such as a video camera, router, scanner, effects unit, cross trainer, dart board, baby monitor or toys
- The universal power adaptor eliminates the need for additional chargers and adapters thanks to the exchangeable plugs.
- The output voltage can be set at 5 V/6 V/7.5 V/9 V/12 V at 3 A and 13.5 V and 15 V at 2.4-3.0 A with the help of the adjusting wheel.
- The voltage is easily adjustable with the enclosed key.
- 8x adapter plugs: 2.5 mm jack plug, 3.5 mm jack plug, DC connector 3.50 x 1.35 mm, 4.00 x 1.70 mm, 5.00 x 2.10 mm, 5.50 x 1.50 mm, 5.50 x 2.10 mm, 5.50 x 2.50 mm
- Thanks to the wide-range input from 100 V to 240 V, the multi-voltage laptop charger (Euro Plug Type C CEE 7/16) is suitable for use worldwide.
- Fuses in the DC power supply protect against short circuit, overload, overvoltage and overcurrent.
Performance
Power consumption 36 W
Security Functions Short circuit, Overloading, Overload, Overcurrent
Output
- 5.0 V max. 3.0 A (15.0 W) DC
- 6.0 V max. 3.0 A (18.0 W) DC
- 7.5 V max. 3.0 A (22.5 W) DC
- 9.0 V max. 3.0 A (27.0 W) DC
- 12.0 V max. 3.0 A (36.0 W) DC
- 13.5 V max. 2.4 A (32.4 W) DC
- 15.0 V max. 2.4 A (36.0 W) DC
Polarity positive
- No-load power consumption 0.05 W
- Output, Voltage Step 15, 5, 6, 7,5, 9, 12, 13,5 V
- voltage stabilization yes
- Input, type Euro male (Type C CEE 7/16) x in
- Output, type DC female (universal, 2-Pin)
- Output, max. amperage 3 A
- Input, Voltage Range 100 – 240 (AC) V
- Output, min. amperage 2.4 A
- Output, min. amperage 2.4 A
- Output, max. amperage 3.0 A
- Input current 0.8 A
- Cable length 1.8 m
- Color black
- Packaging type Retail Box
- Dimensions / Weight
- Length 116 mm
- Width 32.5 mm
- Height 50 mm
- Weight 310 g
- Consumption Unit 1 pc. in cardboard box
- Notebook adapter, 2.5 mm pawl, 3.5 mm pawl, DC adapter (3,50 x 1,35 mm), DC adapter (4,00 x 1,70 mm), DC adapter (5,00 x 2,10 mm), DC adapter (5,50 x 1,50 mm), DC adapter (5,50 x 2,10 mm), DC adapter (5,50 x 2,50 mm)
- accessory – Power supply
- Efficiency at low load (10 %) 84.6 %
- Average active efficiency 84.1 %
- Language Scope Operation manual en, de, fr, it
- packaging en, de, fr, it
- SCIP no. 8a96bce0-37c9-4ebd-8350-cc4594d20be0
- chemical substance Pb
- CAS no. 7439-92-1
