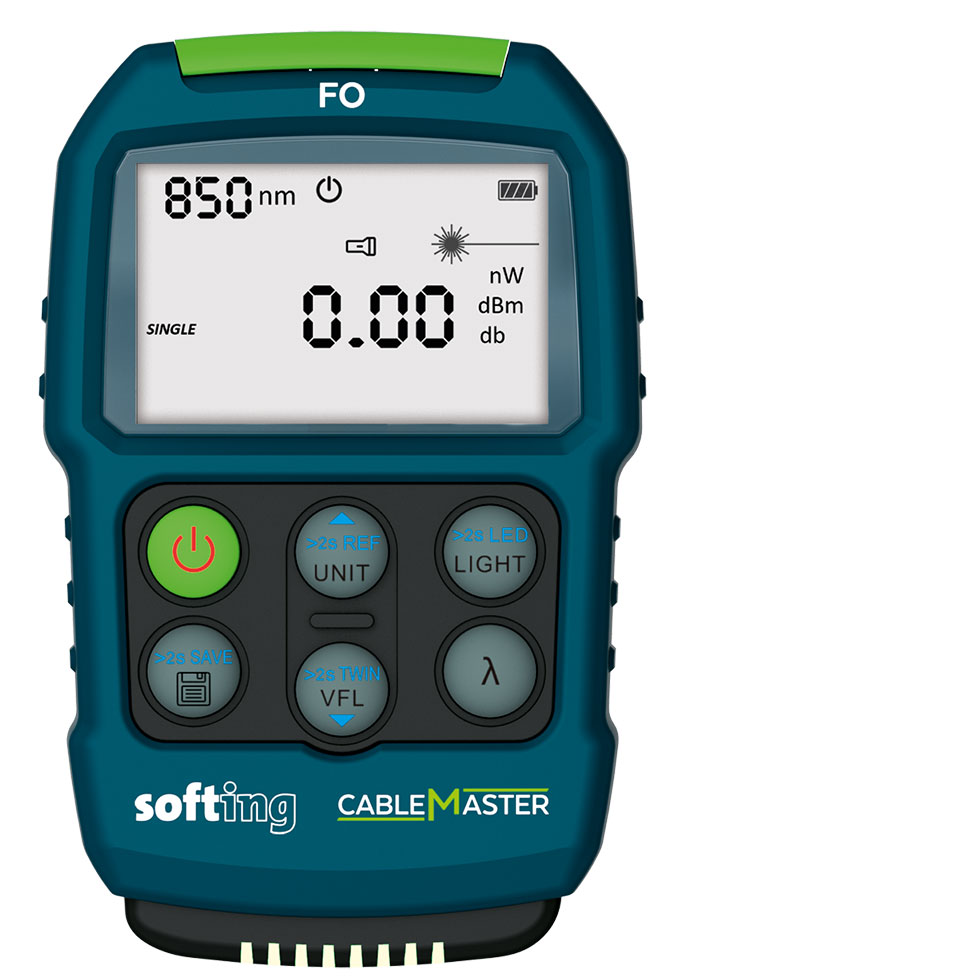

Softing Cablemaster FO – 226110

  • Powerful optical power meter
  • Ergonomic design, small and handy, easy to carry
  • Display in several units dBm/dB/mW
  • Rechargeable battery operation up to 80 hours
  • Multifunctional (power/attenuation measurement, VFL, RJ45 patch cord test, torch)
  • Simple zero adjustment
Vöruflokkar: , , Merki: Framleiðandi:
Láttu aðra vita

Lýsing

Multifunctional optical power meter with VFL

The CableMaster-FO is a multifunctional optical power meter and integrates the functions of a visual fault locator for port/polarity detection (VFL/red light), an attenuation meter for determining the attenuation of the fibre optic signal in dB, a power meter for determining the signal strength in dBm/mW, a copper patch cord tester and a torch.

Advantages

Areas of application
  • Verification of FTTx broadband installations
  • Simple attenuation determination on fibre optic cabling to ensure the attenuation budget is met
  • Visual Fault Locator (VFL) for correct polarity of the fibre link and checking for interruptions
  • Optical power meter mode for measuring the power at different fibre optic interfaces
Special characteristics
  • Particularly small, reliable and robust
  • Storage of 50 measurement results and more
  • VFL, torch and patch cord test integrated
  • OPM, attenuation/power display (dBm, dB, mW)
  • Rechargeable battery for operating times of up to 80 hours
Your benefit
  • Best price/performance ratio on the market
  • Many functions combined in a very small unit
  • Simple, intuitive operation – ready for immediate use
  • Everything included (battery, charging cable, adapter 2.5/1.25mm)

Product details

Delivery

CableMaster FO Scope of delivery:

  • Main unit with integrated remote
  • 3 x AAA NiMH 1.2 V rechargeable batteries
  • 1 x USB charging cable
  • 1 x adapter 2.5 to 1.25 mm
  • Optical power meter in pocket size
Specifications
Size: 105 x 65 x 25mm
Weight with Battery: 140g
Power Supply: 3 x 1.2V AAA NiMH
Operating temperature: -10 – +50°C
Storage temperature: -20 – +70°C
Humidity: 0% – 95%, non-condensing
Test ports: 1 x Optical Powermeter port 2.5mm / 1 x VFL port 2.5 mm / 1 x RJ45 port
Test range: -70dBm – +10dBm @1550nm
Supported wavelengths: 850/1300/1310/1490/1550/1625/1650nm
Accuracy: ±0.35dB
VFL output power: 0dBm (1mW)
