Description

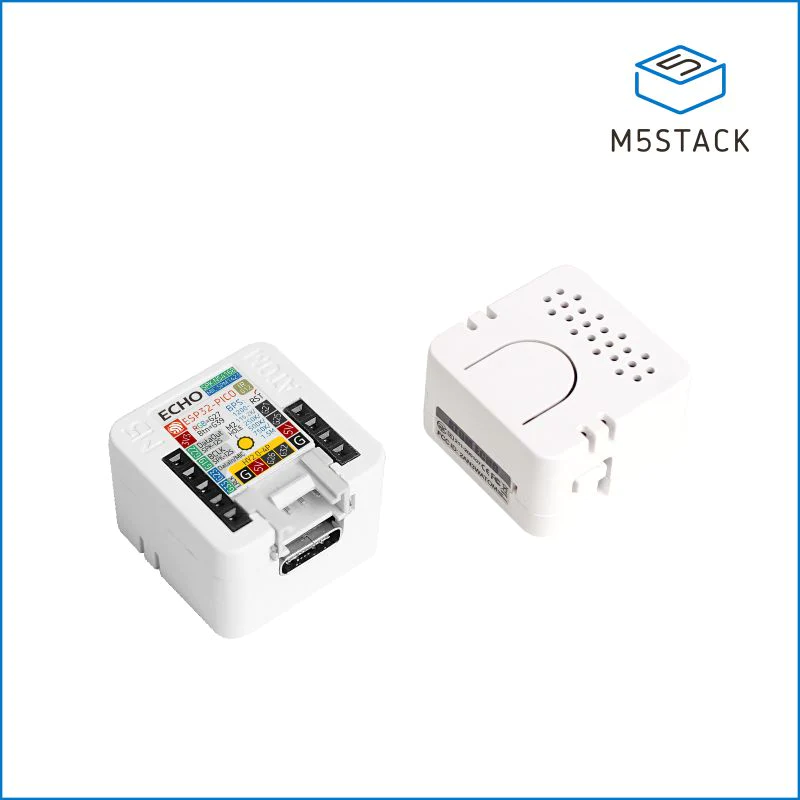

ATOM ECHO is a Programmable Smart Speaker based on the M5ATOM design. With its compact form factor measuring only 24 * 24 * 17 mm, this speaker delivers impressive capabilities. Easily play music wirelessly using the BT capabilities of the ESP32 from your mobile phone or tablet.
What sets ATOM ECHO apart is its programmability and integration with cloud platforms such as AWS and Baidu. Utilizing the built-in microphone and speaker, it enables voice interaction and AI functionality. Experience voice control, story-telling, and seamless integration with the Internet of Things (IoT).
The speaker is equipped with an embedded RGB LED (SK6812), allowing for visual display of connection status. Beyond its role as a Bluetooth speaker, ATOM ECHO retains the control abilities of the Atom series. The convenient screw hole on the back facilitates easy installation for users.
With ATOM ECHO, you have a powerful, programmable smart speaker that combines compact design, AI capabilities, and seamless IoT integration for an enhanced audio experience in any setting.
Product Features
- Light and compact
- Support STT services
- Based on ESP32 arduino, Support A2DP
- 2.4G Wi-Fi IEEE 802.11b/g/n
- Built-in microphone and speaker
- RGB LED status display indication
- Grove extension interface
- Record and playback
- Programmable key
- Programming platform:Arduino, ESP-IDF/ADF
Include
- 1x ATOM ECHO
Applications
- BT Speaker
- Voice Control
- Home Automation

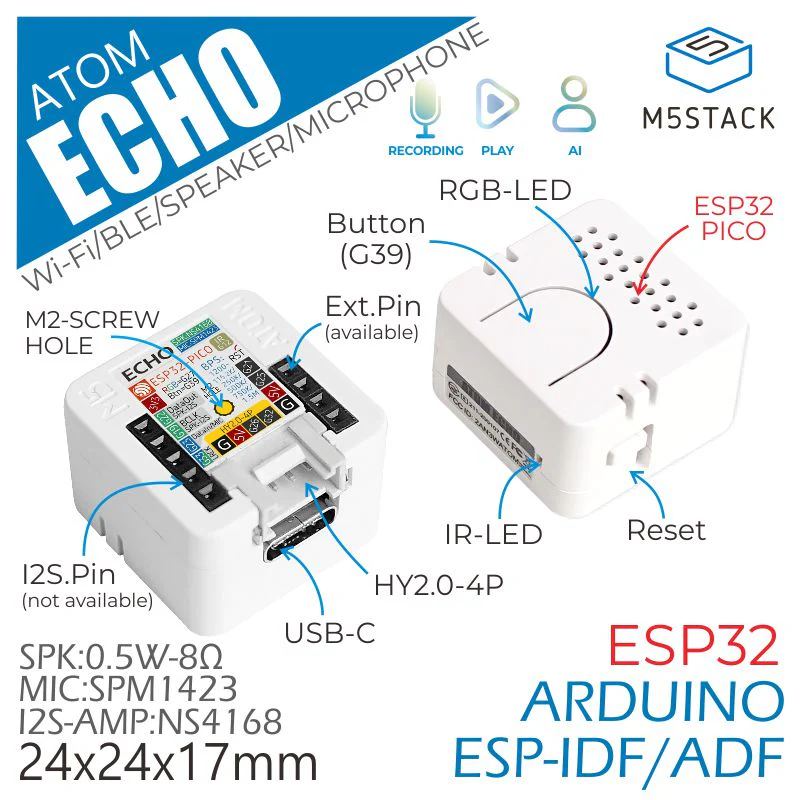

Specification
| Resources | Parameter |
|---|---|
| SoC | ESP-PICO-D4, 240MHz, Dual Core, Wi-Fi |
| Flash | 4MB |
| Interface | 1x IR-TX,1x Function Button,1x Reset Button |

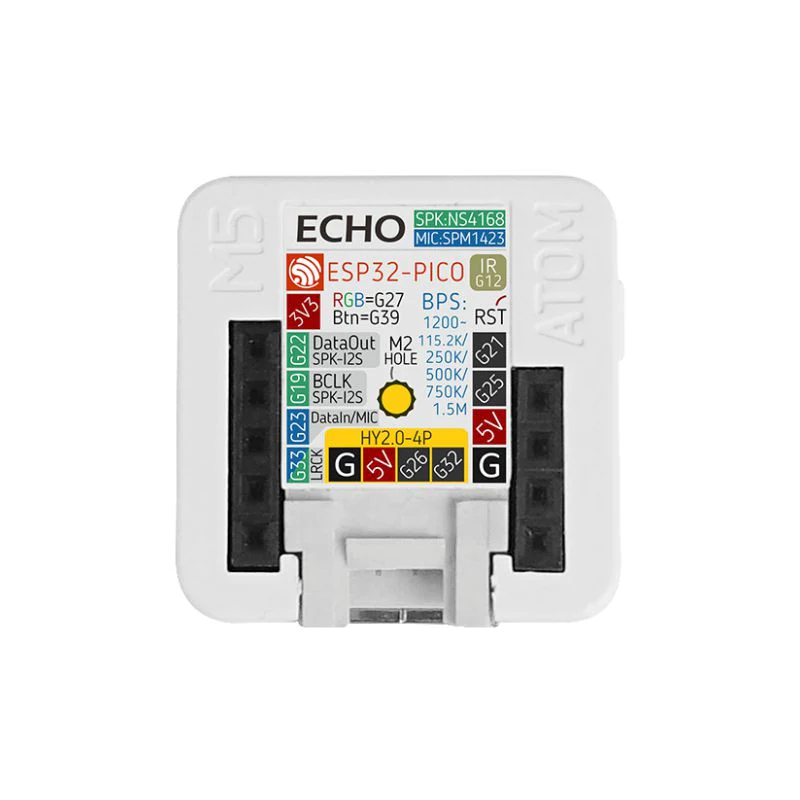

| PinOut | G21/G25/5V/GND, 3V3/G22/G19/G23/G33 |
| RGB LED | SK6812 |
| Speaker | 0.5W/NS4168 I2S |
| Microphone | SPM1423 PDM |
| Net weight | 5g |
| Gross weight | 10g |
| Product Size | 24*24*17mm |
| Package Size | 63*63*12mm |
| Case Material | Plastic ( PC ) |
