Þessi verkfæri eru tilvalin fyrir þann sem að langar til að gera hlutina sjálfur.
Network cable tester for testing CAT 5/6 network and ISDN connections
- Two scan modes selectable: AC filter & Non AC filter

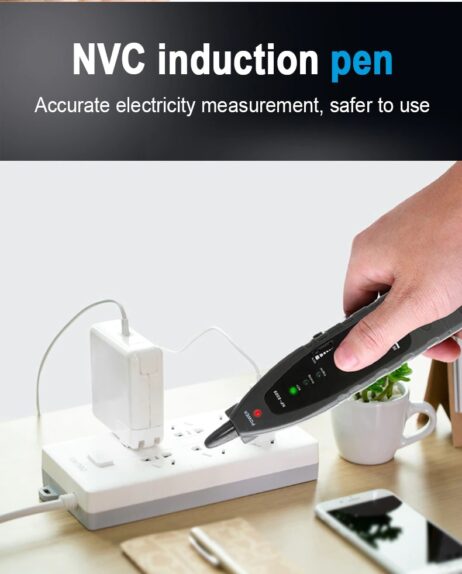

- Detect AC voltage presence (50V-1000V).
- Test physical status for STP, UTP lan cable.
- Measure cable length accurately , the range is 200m.
- Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
- PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).

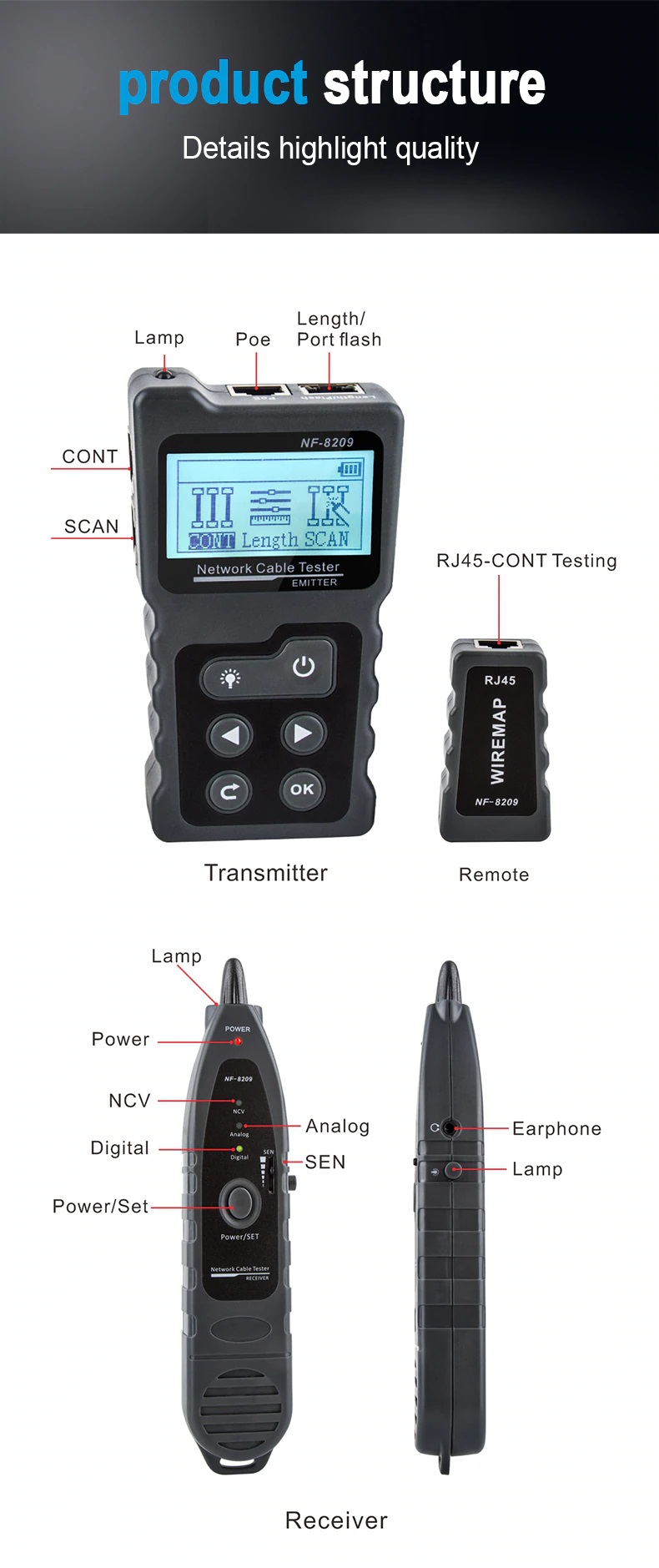

- CONT — Test open, short, cross,ect for STP, UTP cable.
- Length–measure length of lan cable, range is 2.5m~200m.
- Scan–Analog/Digital/ PoE mode to locate lan cables.
- PoE— available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type.
- Flash–locate network port by the flashing port light on switch/ router.
