DESCRIPTION
The extendible Shelves are easy to install at the four 483 mm (19″) profile rails of your 483 mm (19″) cabinets. Due to the sturdy, perforated sheet steel with a high load capacity, they are the optimal surface for your network components. An attached handle can be installed to faciliate the extension of the shelf. Available in standard color grey (RAL 7035) and black (RAL 9005).
TECHNICAL DETAILS
- For fixing at the four 483 mm (19″) mounting profile rails
- Extractable, with handle bar
- Sturdy, perforated sheet steel

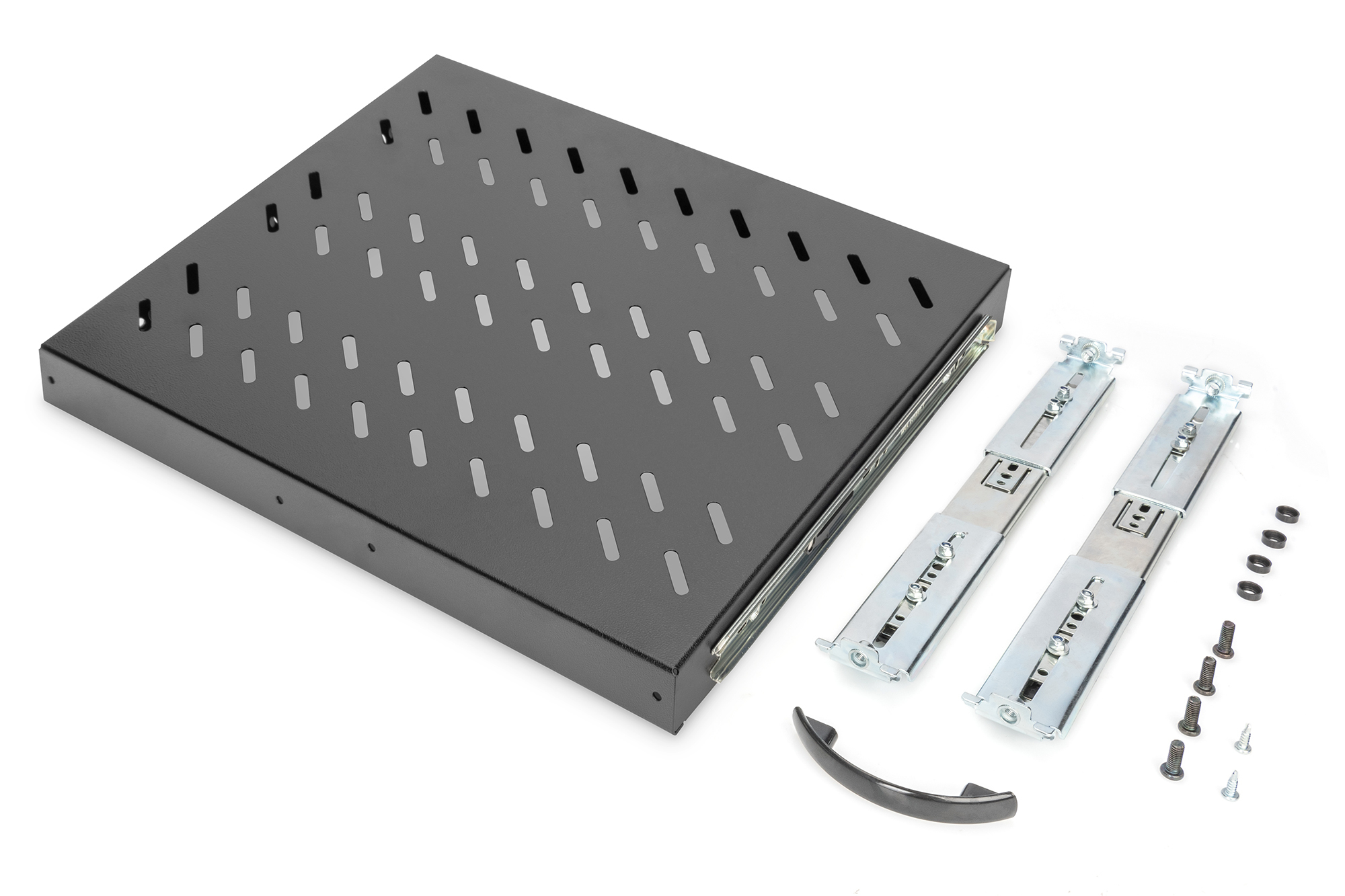

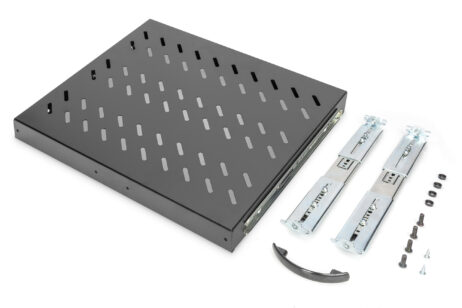

- Delivery with complete set of needed fixing material
- Adjustable mounting brackets MIN.-MAX.: 300 – 530 mm
- 4-point fixing (front- and rear 19″ profile rails)
- Color: black, RAL 9005
- Load capacity: 25 kg
- Mounting type: Extendible
- Units: 1
- Inch form factor (IEC 60297): 482.6 mm (19″)
- Suitable cabinet depth: 600 mm
