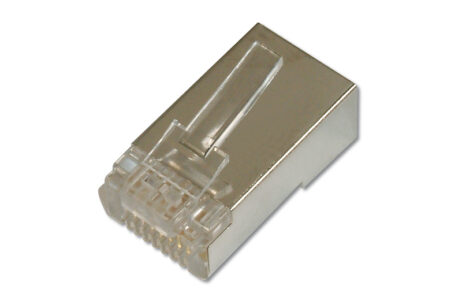

Cat6 skermað tengi – AK-219603

186 kr.

Vöruflokkar: , Merki: , , Framleiðandi:
Láttu aðra vita

Lýsing

CAT 6 Modular Plug, 8P8C, shielded for Round Cable, two-parts plug

Easy assembly by modular crimping tool DN-94004

Technical Details

  • Layout performance: CAT 6, 1GBase-T
  • Area of application: Patch cable assembly
  • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • UL certified
  • Technical properties:
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Material connector body: Polycarbonat, clear
  • Connector contact: Phosphor bronze, brass 0.6 μ gold-plated
  • Flammability: UL 94V-2
  • Physical properties:
  • Insertion force: ≤ 30 N
  • Diameter Cu-Conductor: AWG (27/7 … 24/7)
  • Operating temperature: -40 °C to +80 °C
  • Current carrying capacity: 1A -1.5A at 50 °C
  • Colour: Transparent
  • Model: Plug
  • Connection type: Crimp
  • Screened: yes
  • Category: 6
  • Suitable for round cable: yes
  • Suitable for flat cable: no
  • Suitable for litz wire conductor: yes
  • Suitable for solid core: no
  • Type of connector: RJ45 8(8)
  • AWG-range: 24 … 27
  • Special tool necessary: yes

Datasheet English
