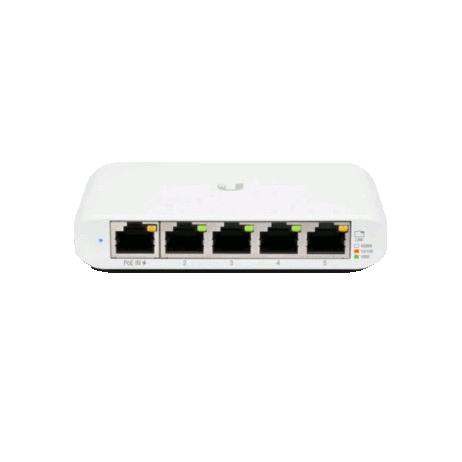

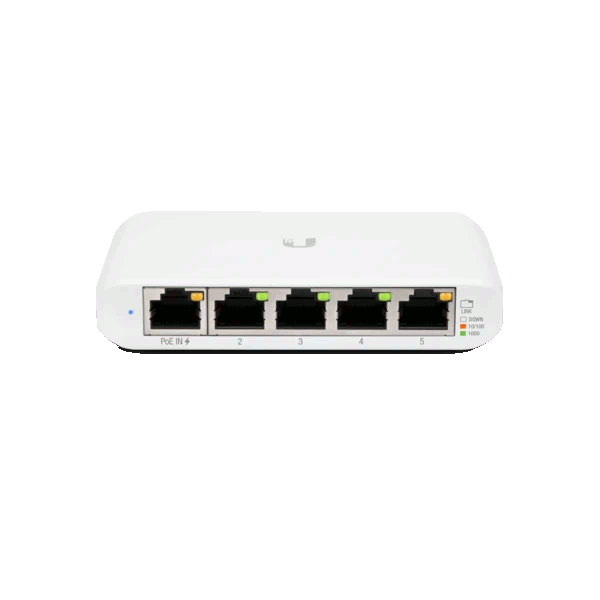

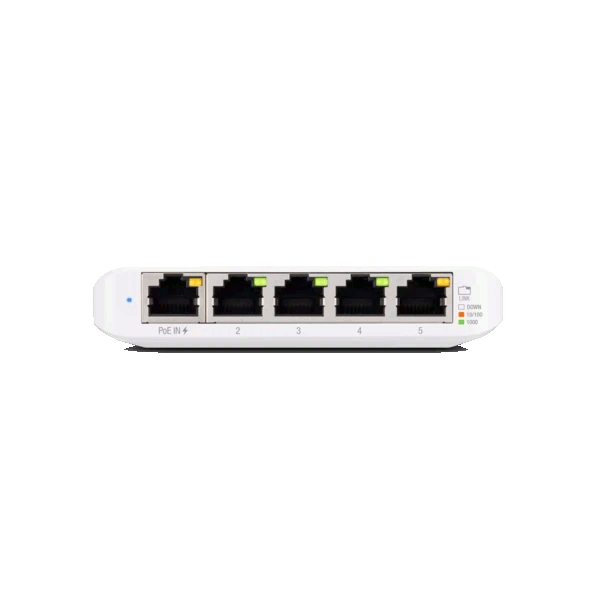

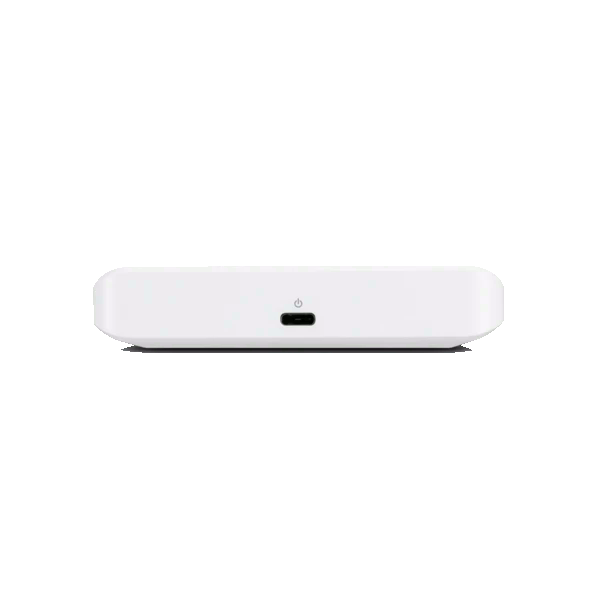

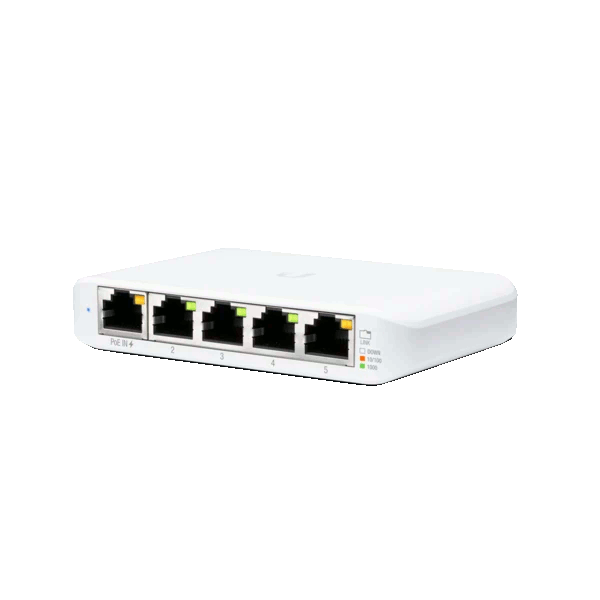

5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter.
Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
Managed by UniFi Network Controller version: 5.12.5 or higher
5V, 1A USB-C power adapter included only with the single-pack of the USW-Flex-Mini.
Meiri upplýsingar hér
|Dimensions||107.16 x 70.15 x 21.17 mm
(4.22 x 2.76 x 0.83″)
|Networking Interfaces||(5) 10/100/1000 Mbps RJ45 Ports|
|PoE In Interface||802.3af/at PoE (Pins 1, 2+; 3, 6-)|
|Max. Power Consumption||2.5W|
|Power Method||USB Type C, 5V
802.3af/at PoE (44 – 57VDC, 0.05 – 0.04A)
|Power Supply||5V, 1A Power Adapter*|
USB Type C
|4.7 – 5.2VDC
44 – 57VDC
RJ45 Data Ports
|ESD/EMP Protection||± 16kV Air, ± 12kV Contact|
|Operating Temperature||-5 to 45° C (23 to 113° F)|
|Operating Humidity||10 to 90% Noncondensing|
|Certifications||CE, FCC, IC|
