Mikrotik Switch/Router 8 port PoE – CRS112-8P-4S-IN

39.990 kr.

  • 8 Gigabit RJ45 Ports
  • 4 SFP Ports
  • Non-Blocking Throughput: 12 Gbps
  • Switching Capacity: 24 Gbps
  • Forwarding Rate: 17.8 Mpps
  • Maximum Power Consumption: 10 W (without PoE devices connected)
  • Supports PoE+ IEEE 802.3at/af and 24 V passive PoE
  • Quiet, Fanless Operation
  • Desktop-Rackmount
Vöruflokkar: , , , , Merki: , , , Framleiðandi:
Láttu aðra vita

Lýsing

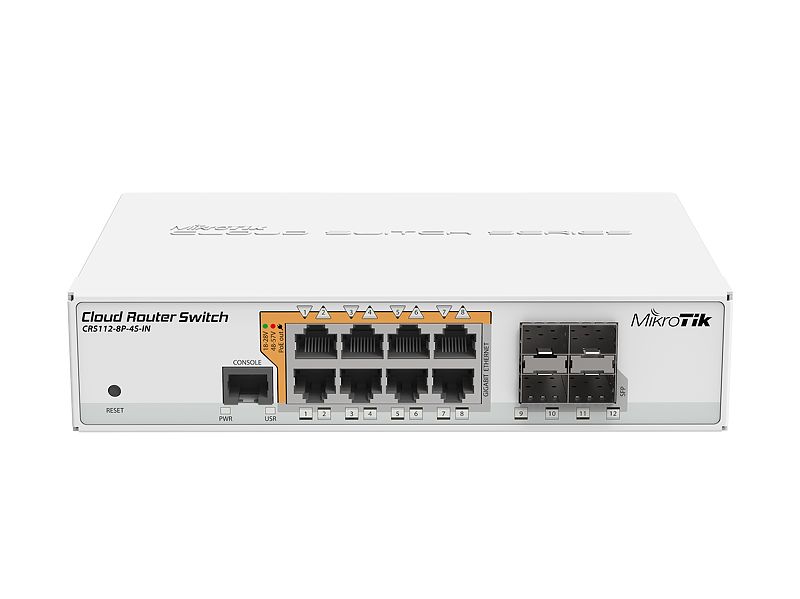

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

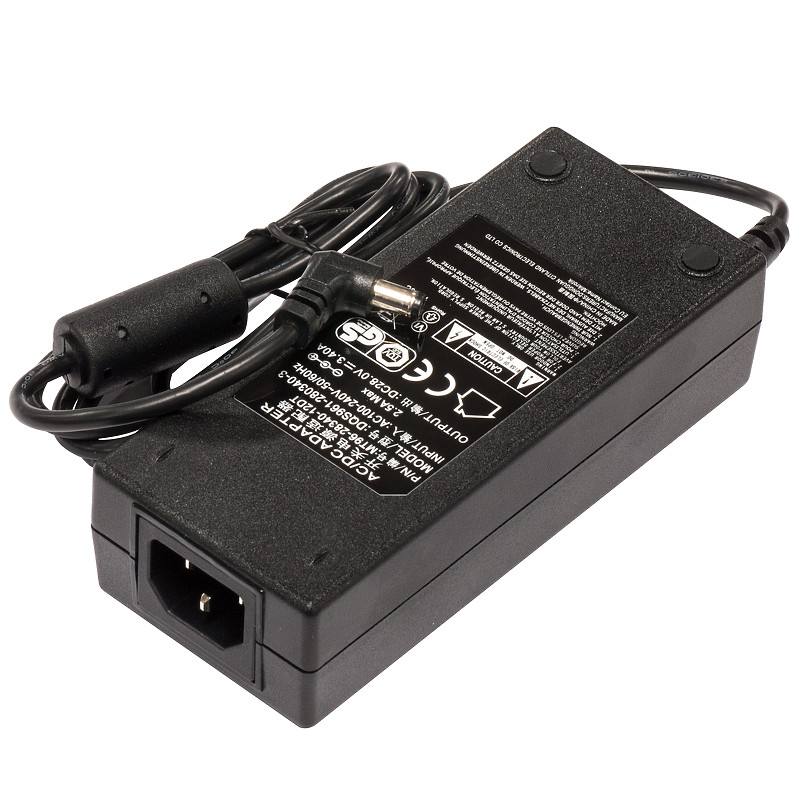

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately – product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins

Our CRS series combines a fully functional router and a managable switch with L3 features, it’s powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. IGMP snooping is also supported.

Nánari upplýsingar hér

Router os manual hér

Switch os manual hér

Specifications

Details
Product code CRS112-8P-4S-IN
Architecture MIPSBE
CPU QCA8511
CPU core count 1
CPU nominal frequency 400 MHz
Dimensions 200 x 142 x 44 mm
RouterOS license 5
Operating System RouterOS / SwitchOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C

Powering

Details
Number of DC inputs 2 (DC jack)
DC jack input Voltage 18-28 V / 48-57 V
Max power consumption 160 W
Max power consumption without attachments 10 W
FAN count Passive

PoE-out

Details
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 2.8A (18V-28V) & 1.4A (48V-57V) A

Ethernet

Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 8

Fiber

Details
SFP ports 4

Peripherals

Details
Serial console port RJ45

Other

Details
PCB temperature monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20
