10″ skápur 6U með glerhurð, DN-10 05-U-1

29.800 kr.

Vöruflokkar: , , Merki: , Framleiðandi:
Láttu aðra vita

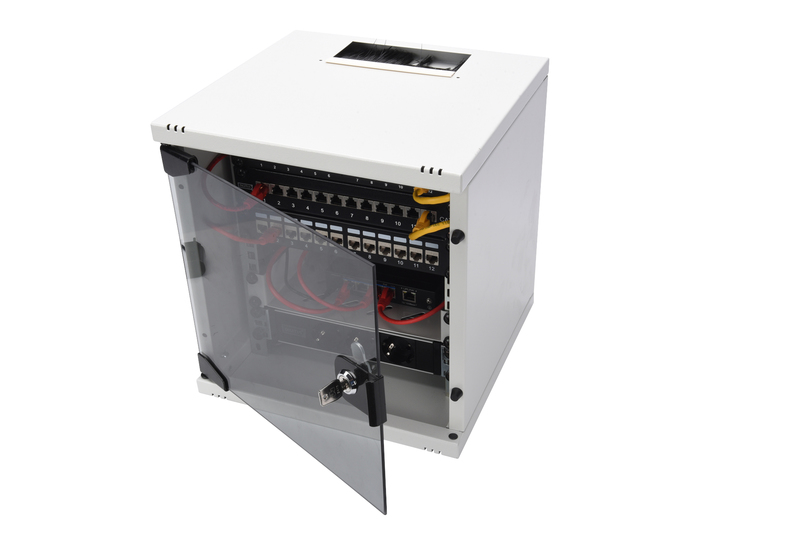

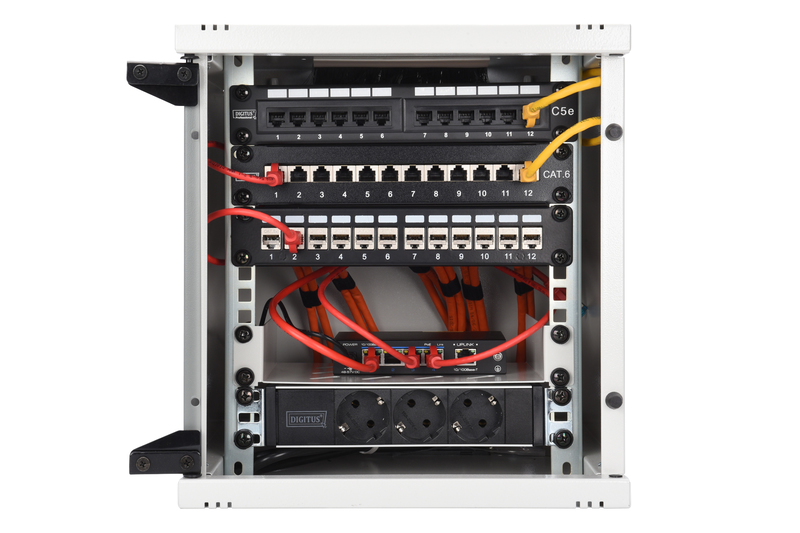

Kassar fyrir tölvulagnir og fleira. Þessi er 10″ (254mm) sem er með pláss fyrir 6 einingar. Hann er með læstri glerhurð og hentar vel fyrir netbúnað svo sem patch panela og ethernet skipta.

254 mm (10″) 6U wall mounting cabinet 330x312x300 mm, color grey (RAL 7035) glass door

The DIGITUS® Professional Wall Mounting Cabinets are made for high demand IT-Infrastructure Solutions – designed and developed on highest standard in Germany

  • Very compact enclosure
  • Easy to assemble in your office building
  • Provides a neat cable management

The 254 mm (10”) wall mounting cabinets are made of a robust steel sheet construction. Cable entry openings on top and base side provide the best possibilities for cable management in a compact area. With its overall compact design this enclosure is ideal for current IT and telecommunication applications, especially in narrow areas or private households.

Technical Details

  • Safety class rating IP20

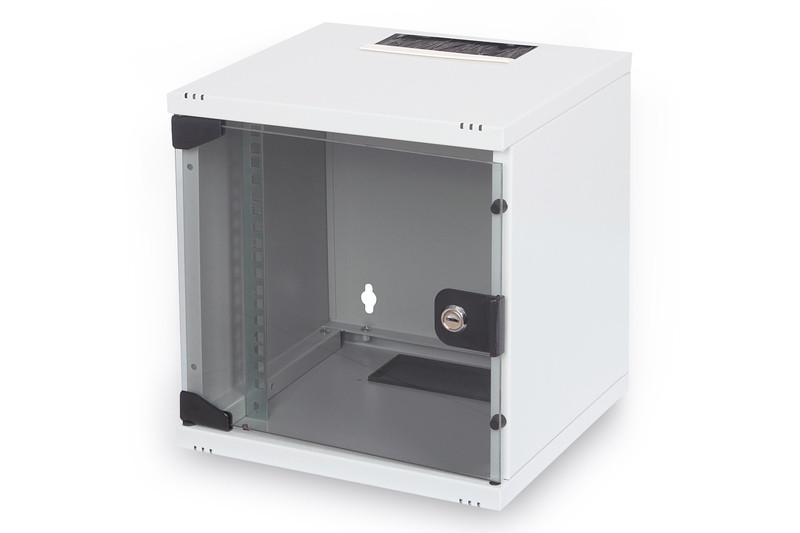

  • Lockable safety-glass door
  • 200° door opening angle
  • 1-point-locking-mechanism on the front door
  • 254 mm (10″) profile rails mounted on the front side inside of the cabinet, galvanized
  • 254 mm (10″) profile rails are adjustable in depth
  • 1.1 – 1.5 strong sheet steel with a high loading capacity, powder coated
  • Cable entry with brush strip on the top and with plastic cover on the base
  • Ventilation slots for active and passive ventilation and exhausting
  • Mounting level: Front side
  • Type of profile rail: L-shaped
  • Number of doors: 1
  • Type of ventilation: Passive
  • Width: 312 mm
  • Height: 330 mm
  • Depth: 300 mm
  • Modular spacing: 254 mm (10 inch)
  • Number of height units: 6
  • With roof plate: yes
  • With earthing: no
  • With front door: yes
  • With backside door: no
  • With sidewall: yes
  • With socket: no
  • Material: Steel
  • Type of surface: With powder coating
  • Colour: Grey
  • Model: With permanent frame
  • RAL-number: 7035
  • Demountable: yes
  • Degree of protection (IP): IP20
