Þráðlaus aðgangspunktur – UniFi UAP-AC-M

21.800 kr.

Lýsing

UniFi AC Mesh Pro UAP-AC-M

Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.

For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink – so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.

Indoors/Outdoors The UniFi AC Mesh AP includes adjustable dual-band omni antennas, and you have the option to use any 5 GHz omni antenna for spot-beam coverage in high‑density locations with numerous APs and clients, like a conference hall.

Nánari upplýsingar hér

Leiðbeiningar hér

Expand the limits of Wide-Area WiFi

Welcome to UniFi Mesh Technology

UniFi creates a highly scalable, end-to-end system of devices spanning multiple locations across theworld — all controlled by a single interface accessed via the Internet or local network.

Specifications:

UAP-AC-M

Dimensions

353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35″)

Weight

152 g (5.36 oz) with Antennas

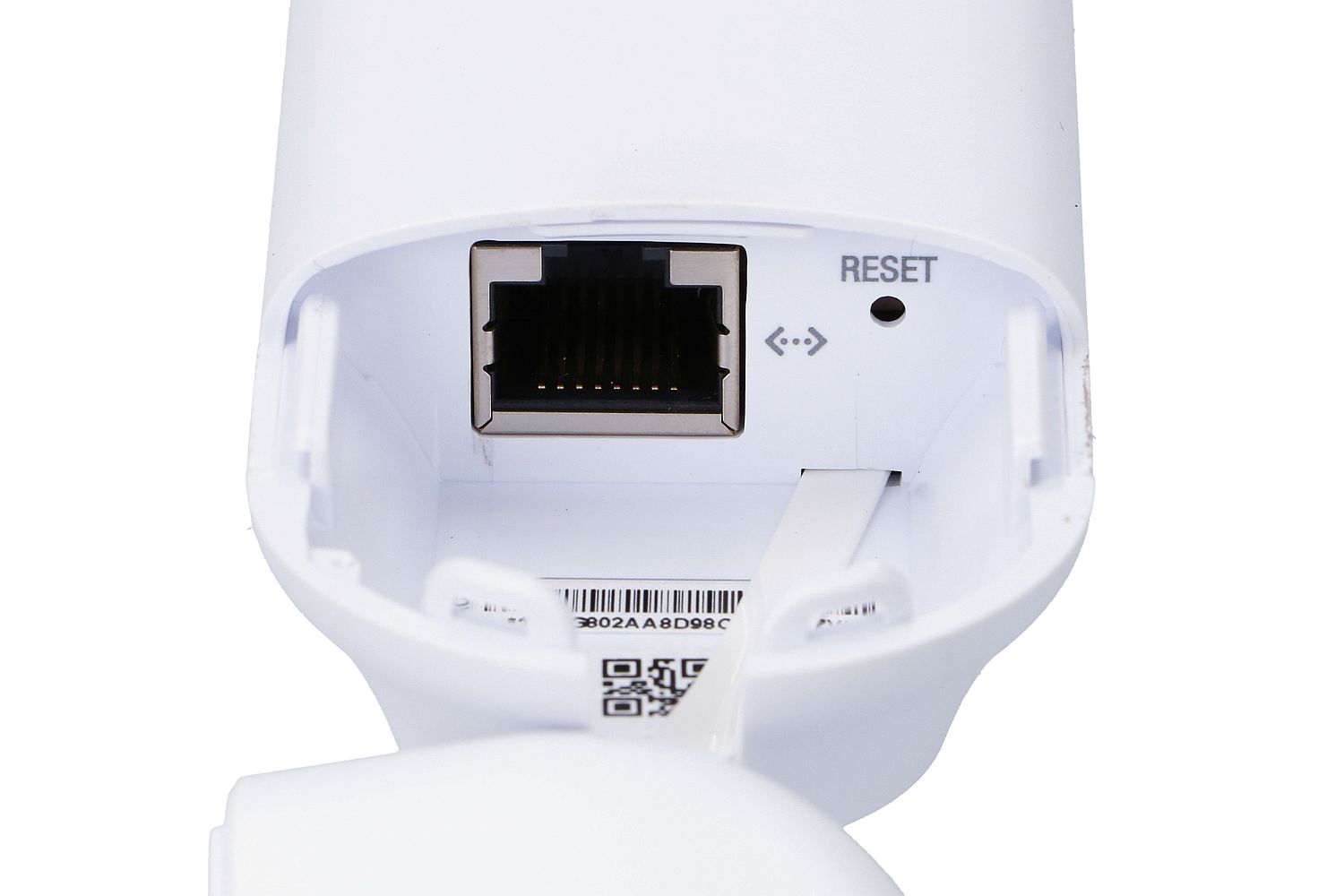

Networking Interface

(1) 10/100/1000 Ethernet Port

Buttons

Reset

Power Method

24V Passive PoE (Pairs 4, 5+; 7, 8 Return);

802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)

(Supported Voltage Range: 44 to 57VDC)

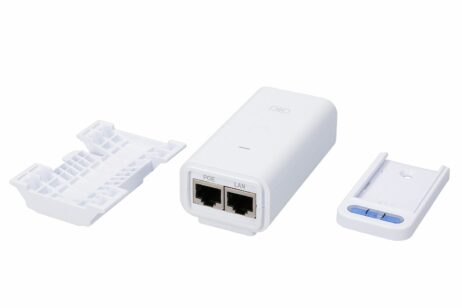

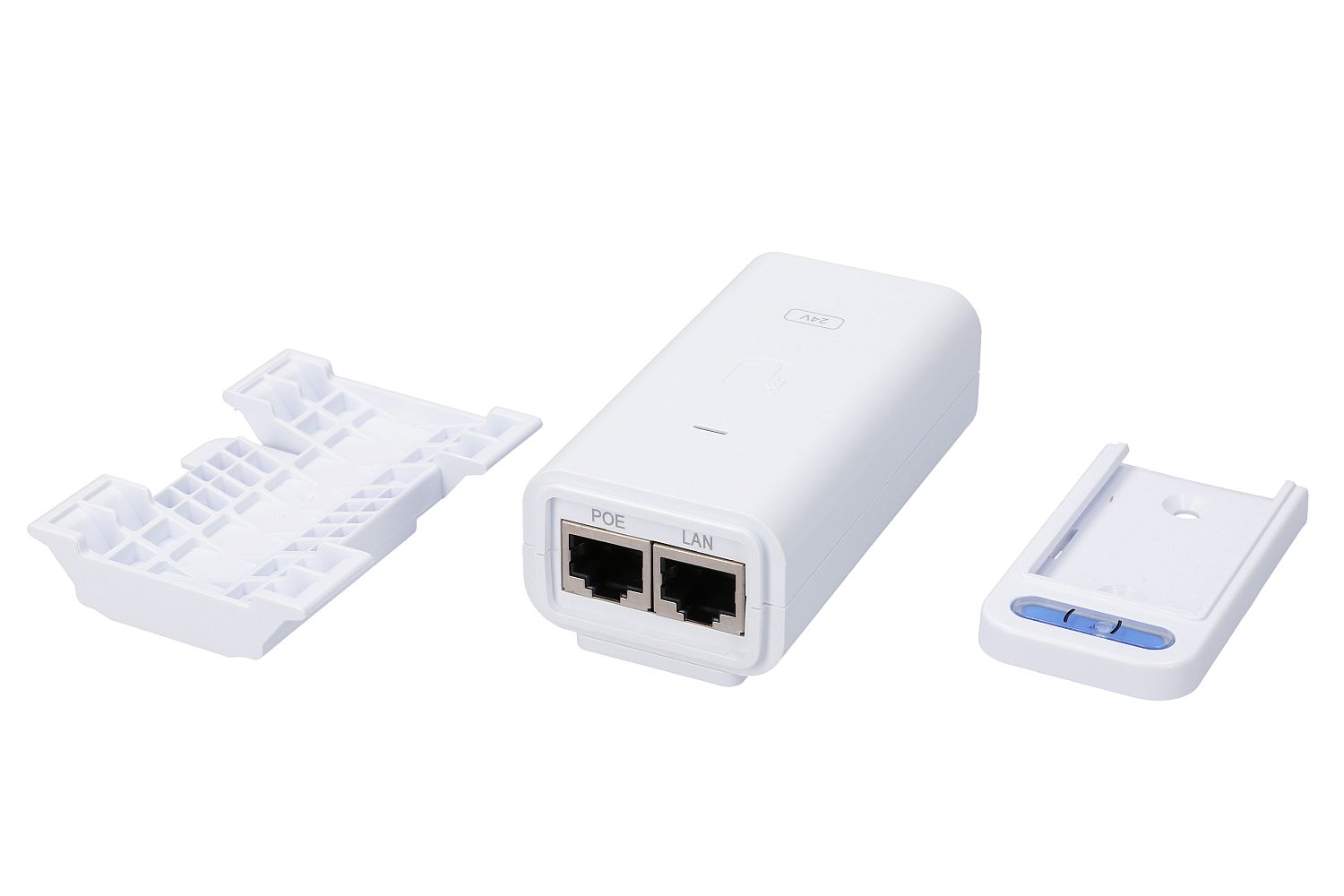

Power Supply

24V, 0.5A Gigabit PoE Adapter*

Power Save

Supported

Maximum Power Consumption

8.5W

Maximum TX Power

2.4 GHz

5 GHz

20 dBm

20 dBm

Antennas

2.4 GHz

5 GHz

(2) External Dual-Band Omni Antennas

3 dBi

4 dBi

Wi-Fi Standards

802.11 a/b/g/n/ac

Wireless Security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID

Up to Four per Radio

Mounting

Wall/Pole/Fast-Mount (Kits Included)

Operating Temperature

-30 to 70° C (-22 to 158° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

Advanced Traffic Management

VLAN

802.1Q

Advanced QoS

Per-User Rate Limiting

Guest Traffic Isolation

Supported

WMM

Voice, Video, Best Effort, and Background

Concurrent Clients

250+

Supported Data Rates (Mbps)

Standard

Data Rates

802.11ac

6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)

802.11n

6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps
