Transforms PoE devices into 24V PoE-compliant products
Compatible with Ubiquiti UniFi or airMAX PoE devices
Suitable for indoor useLýsing
Ubiquiti® Compatibility

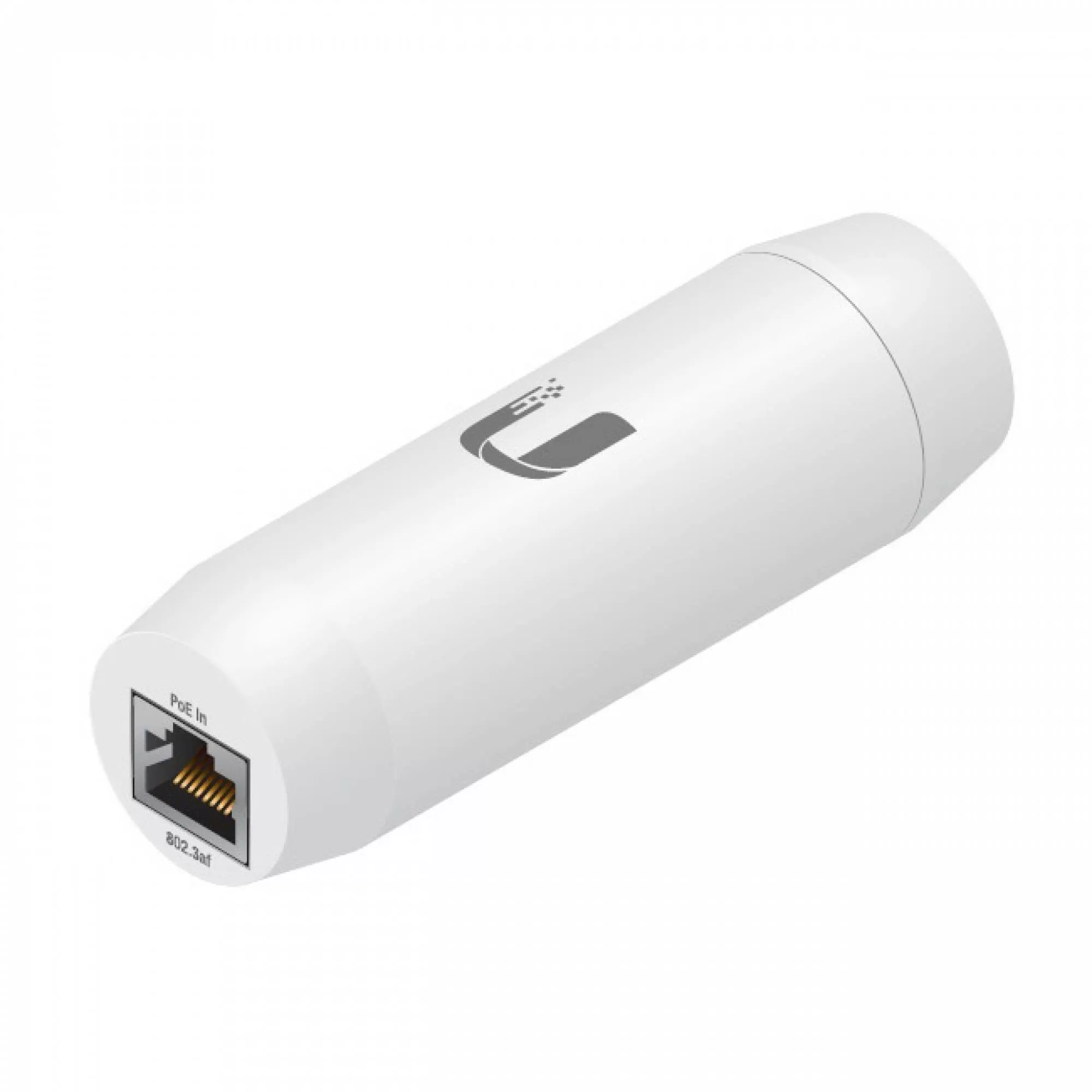

The Instant Indoor PoE (Power over Ethernet) Converter from Ubiquiti, identified by the manufacture part number INS-3AF-I-G, is a specialized device designed to convert Ubiquiti’s non-PoE hardware to be compatible with PoE switches and networks. This technical product is particularly useful for integrating Ubiquiti devices into existing network infrastructures that utilize PoE capabilities, thereby simplifying the power and data cabling requirements. Compatible with airMAX® and UniFi® devices and offer a true plug-and-play experience. It can be connected immediately between any 802.3af-compatible switch and an Ubiquiti device requiring 24V passive PoE.
PoE Switch Compatibility

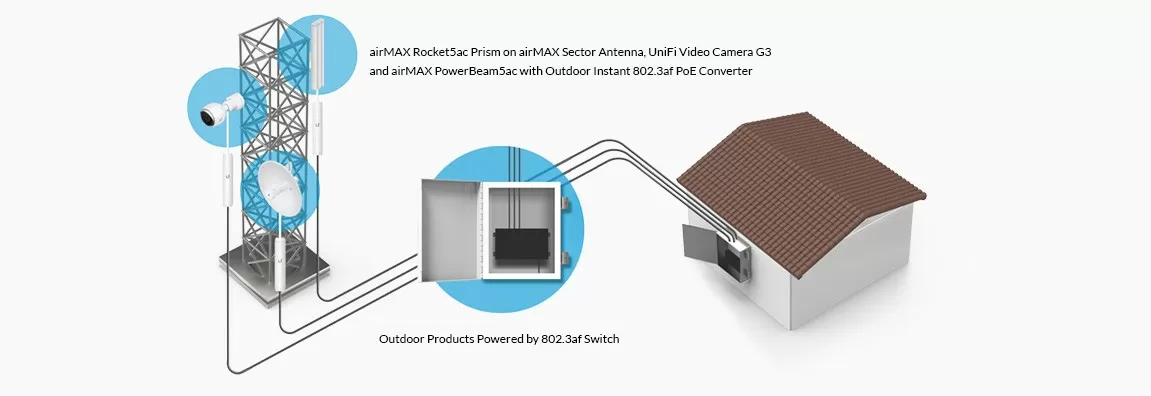

The Instant 802.3af Gigabit PoE Converter integrates seamlessly with a variety of auto-sensing 802.3af PoE switches for remote power control applications. As you manage and monitor your network, you can conveniently power or power cycle your remote devices using your 802.3af switch.
| Mechanical | |
|---|---|
| Model | INS-3AF-i-G |
| Dimensions | Ø30.3 x 95.5 mm (Ø1.2 x 3.7″) |
| Weight | 50 g (1.8 oz) |

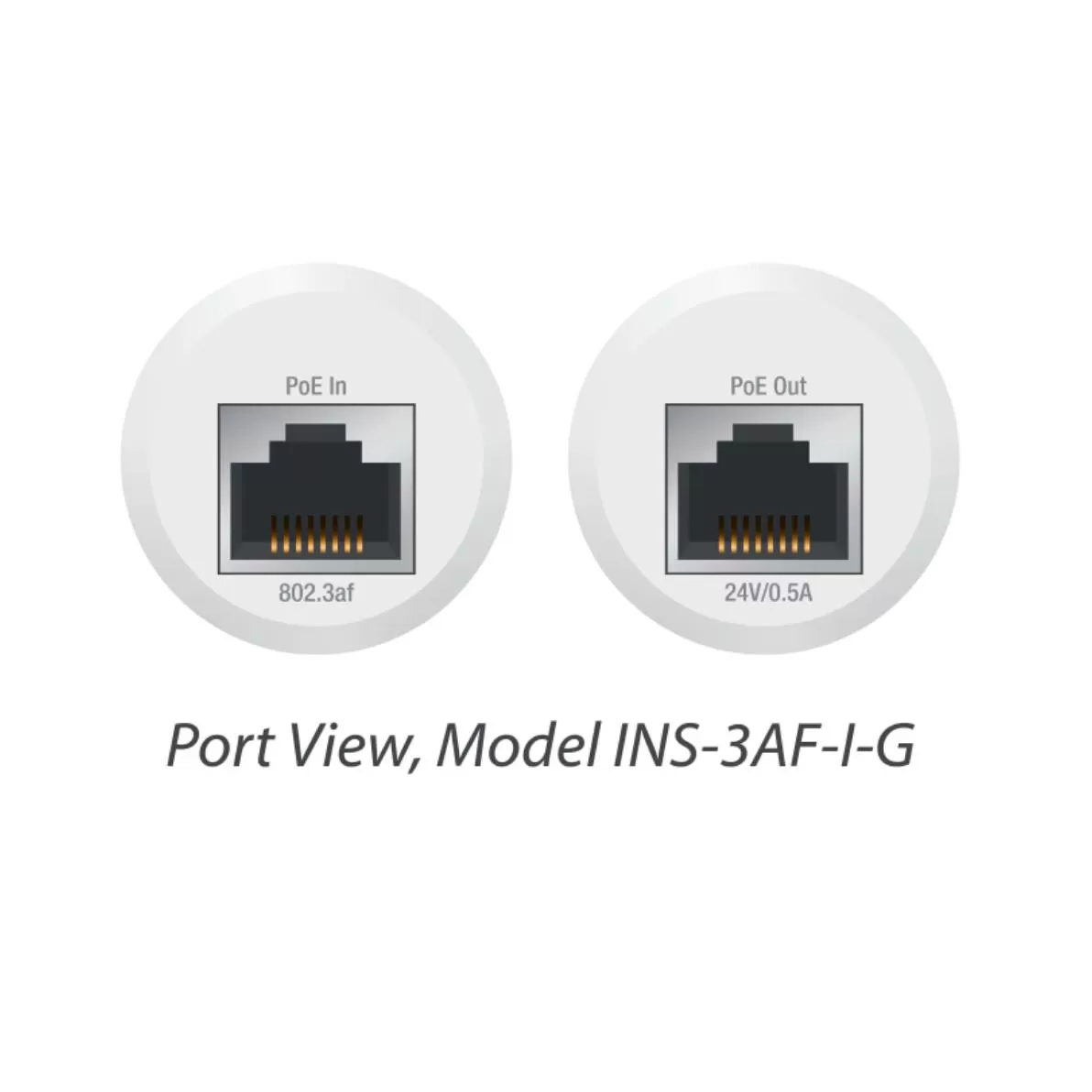

| Networking interface | (1) GbE RJ45 port (PoE in) (1) GbE RJ45 port (PoE out) |
| Power method | 24V passive PoE (Pairs 4, 5+; 7, 8 return) |
| Power supply | PoE, 48V DC, 0.5A |
| Max. power output | 24V DC, 0.5A |
| Ethernet ESD/surge protection | ±15kV |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
| NDAA Compliant | Yes |
