High-Speed Connectivity

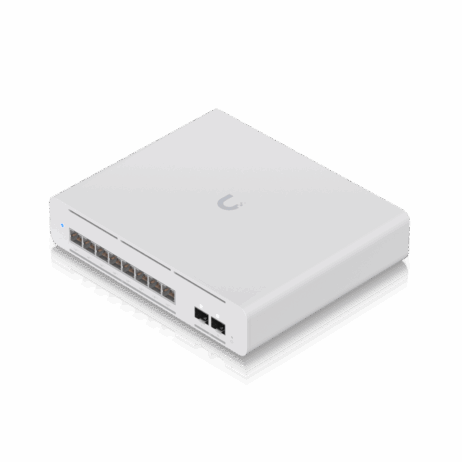

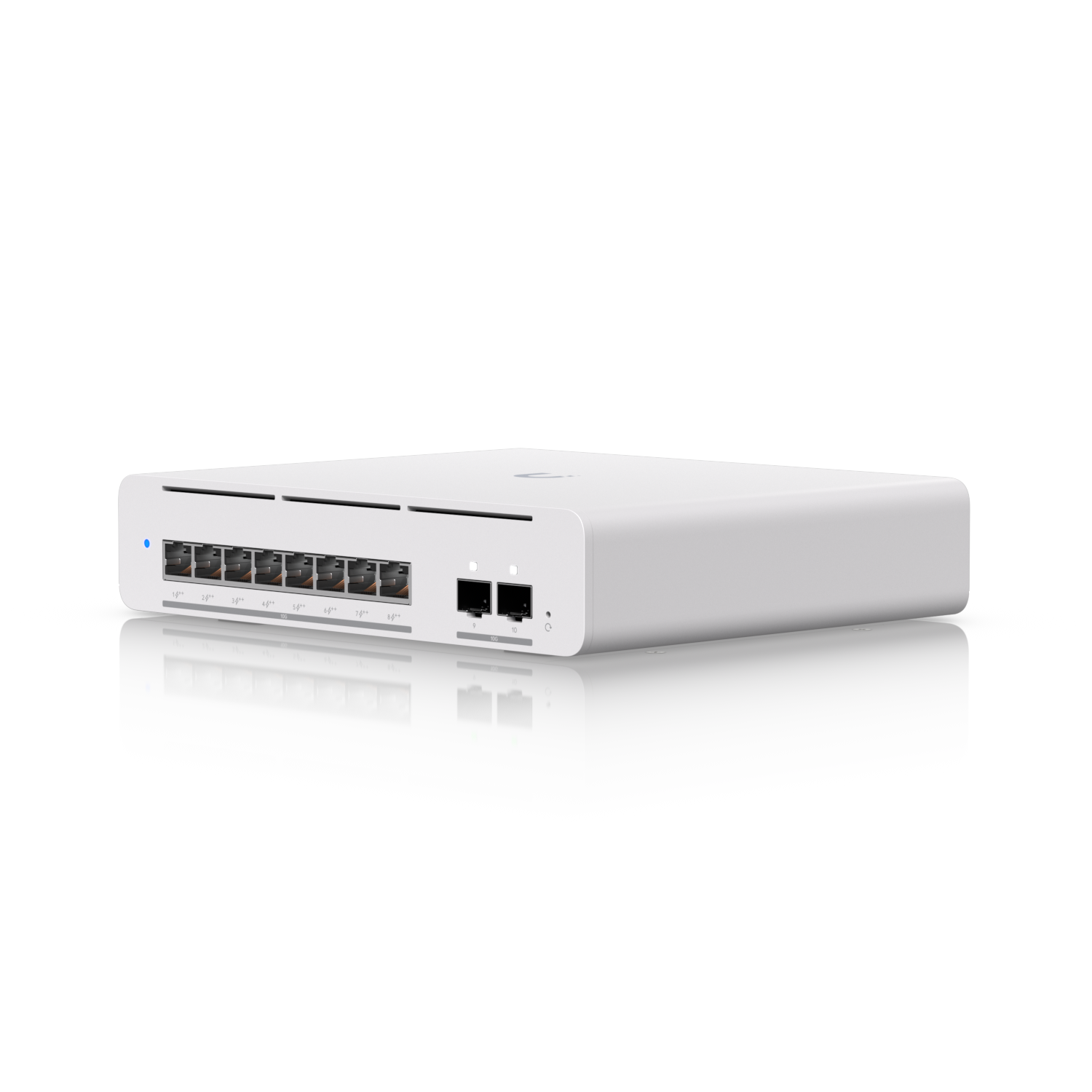

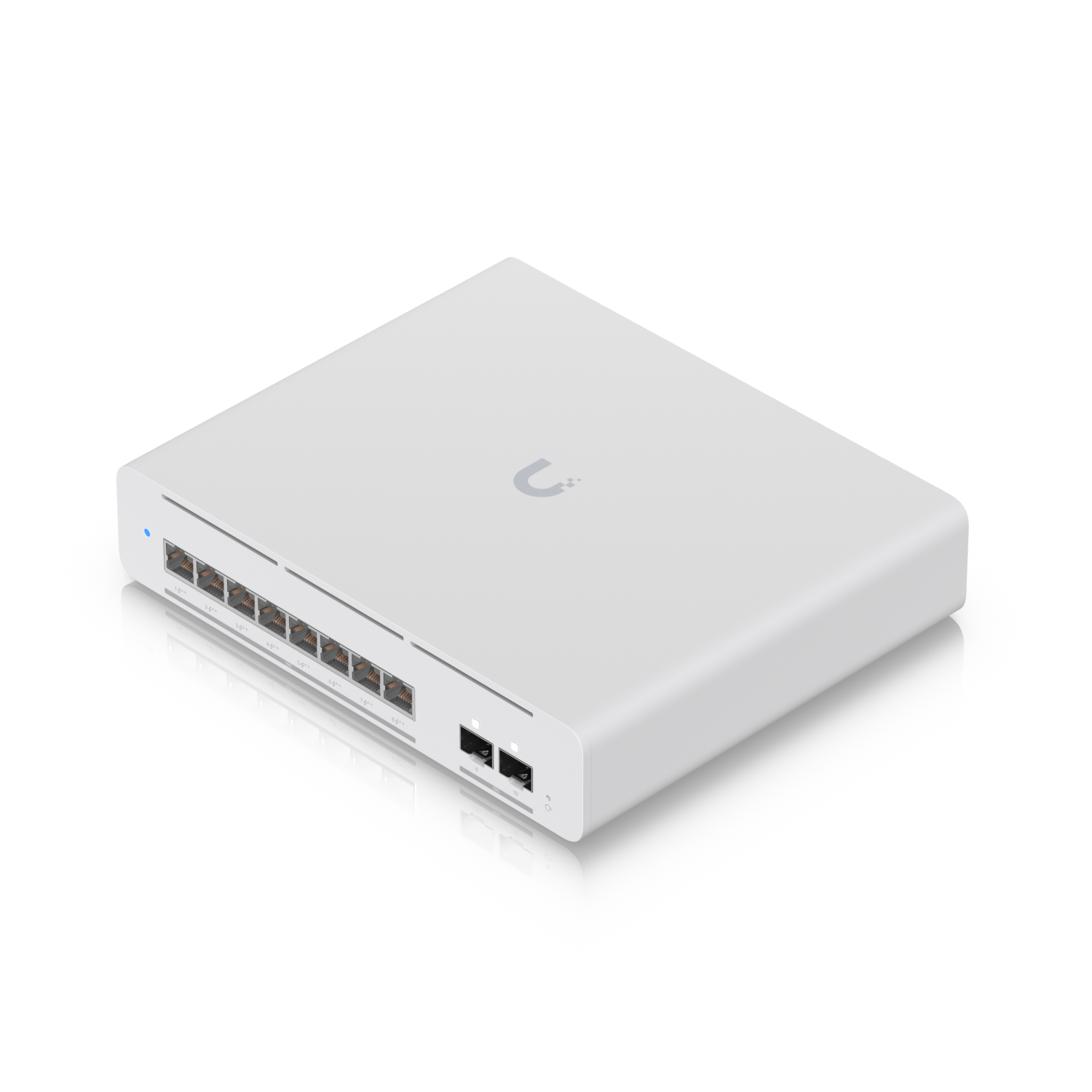

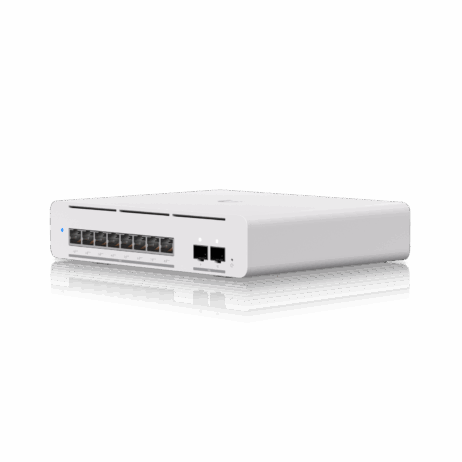

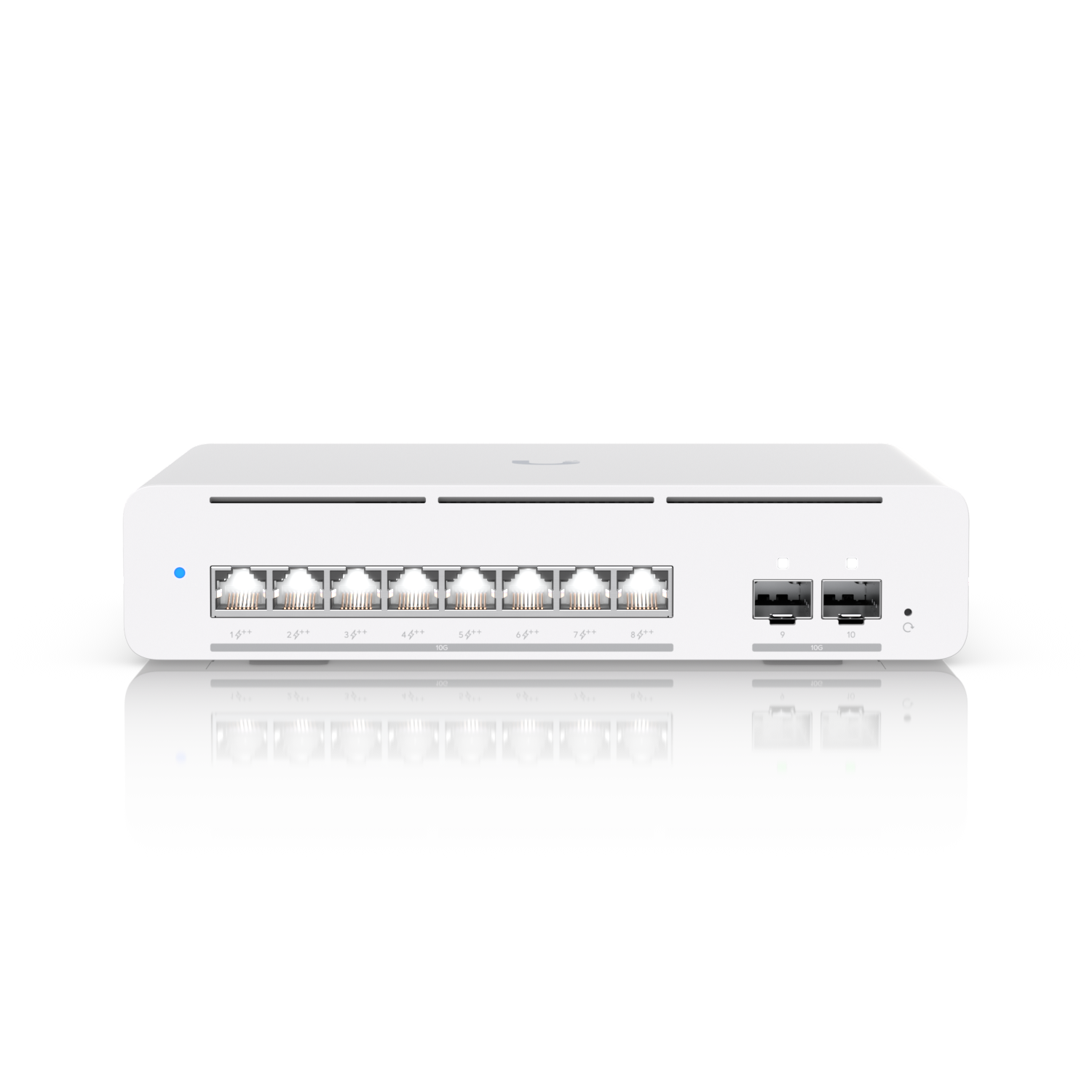

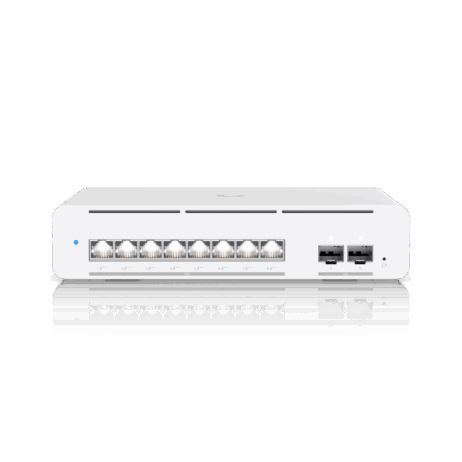

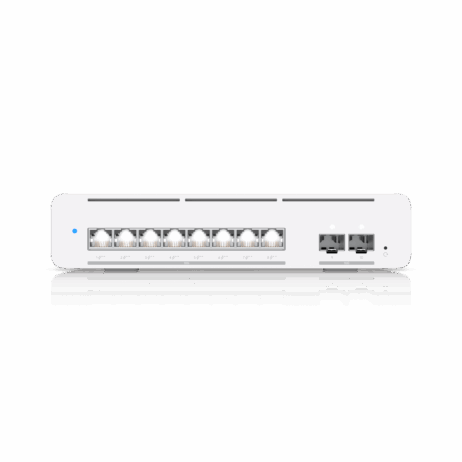

The Ubiquiti UniFi Switch Pro XG 8 PoE (USW-Pro-XG-8-PoE) is a professional-grade Layer 3 switch designed to meet the demands of modern networks. It features eight 10 Gigabit Ethernet (GbE) PoE++ ports and two 10G SFP+ ports, providing a total non-blocking throughput of 120 Gbps and a switching capacity of 240 Gbps. This robust configuration ensures rapid data transfer rates, accommodating bandwidth-intensive applications such as high-definition video streaming, online gaming, and large file transfers.

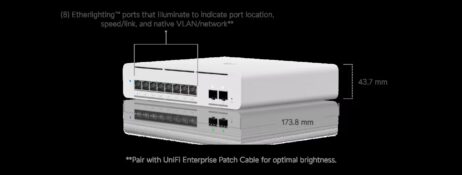

Dimensions 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7″)

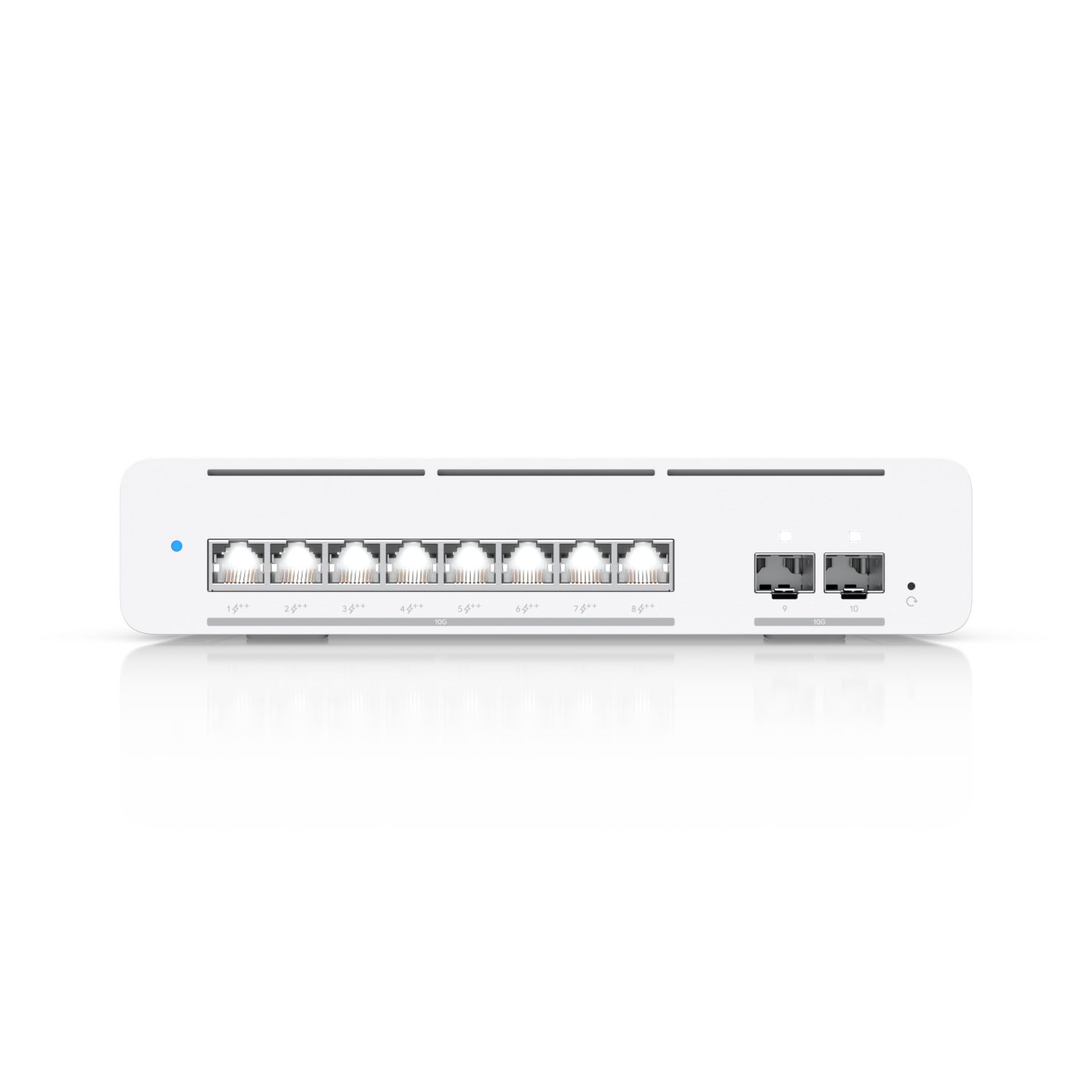

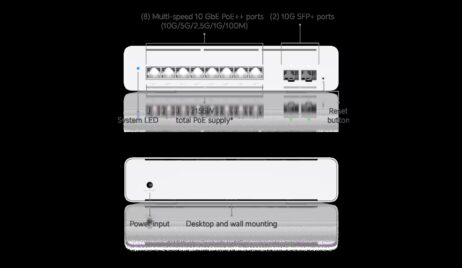

Port Layout
- 10 GbE RJ45 8 (All PoE++) (10G/5G/2.5G/1G/100M)
- 10G SFP+ 2 (10G/1G)
Max. PoE Output
- Up to PoE++
- Total PoE Availability 155W
Layer 3 ✓

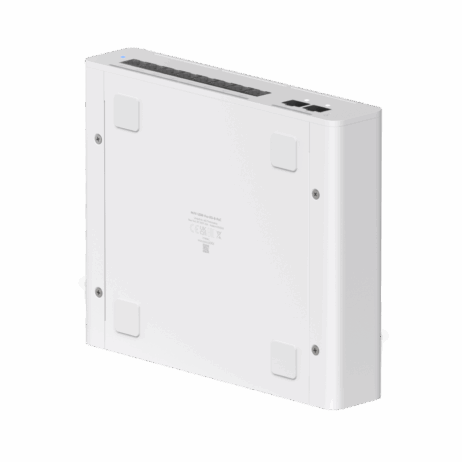

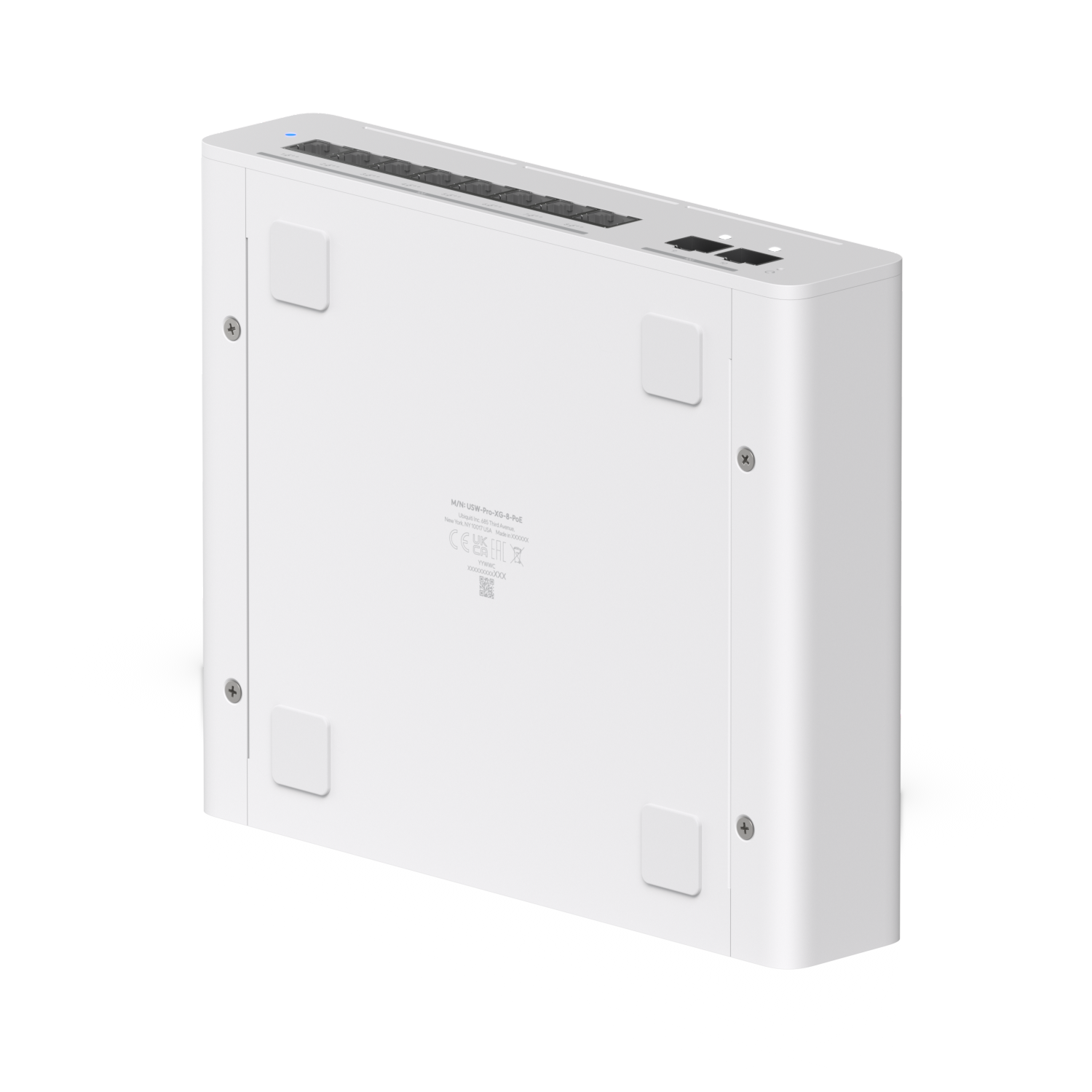

Form Factor Compact desktop, wall
Etherlighting™ ✓
- Switching Capacity 200 Gbps
- Total Non-Blocking Throughput 100 Gbps
- Forwarding Rate 149 Mpps
- Supported VLANs 1,000
- MAC Address Table Size 32,000
- L3 Table Size
- ARP Entries 12,000
- IPv4 Routes 12,000
Packet Buffer Size 2 MB
DHCP Server (Local Networks) ✓
DHCP Relay ✓
Inter-VLAN Routing (Local Networks) ✓
Static Routing (Local Networks) ✓
LACP Port Aggregation ✓
STP & RSTP ✓
QoS (DSCP) ✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓
PoE Ports
- PoE++ 8
Max. PoE Wattage per Port by PSE
- PoE 15.4W
- PoE+ 30W
- PoE++ 60W
Max. Power Consumption 61W (Excluding PoE output) 220W (Including PoE output)

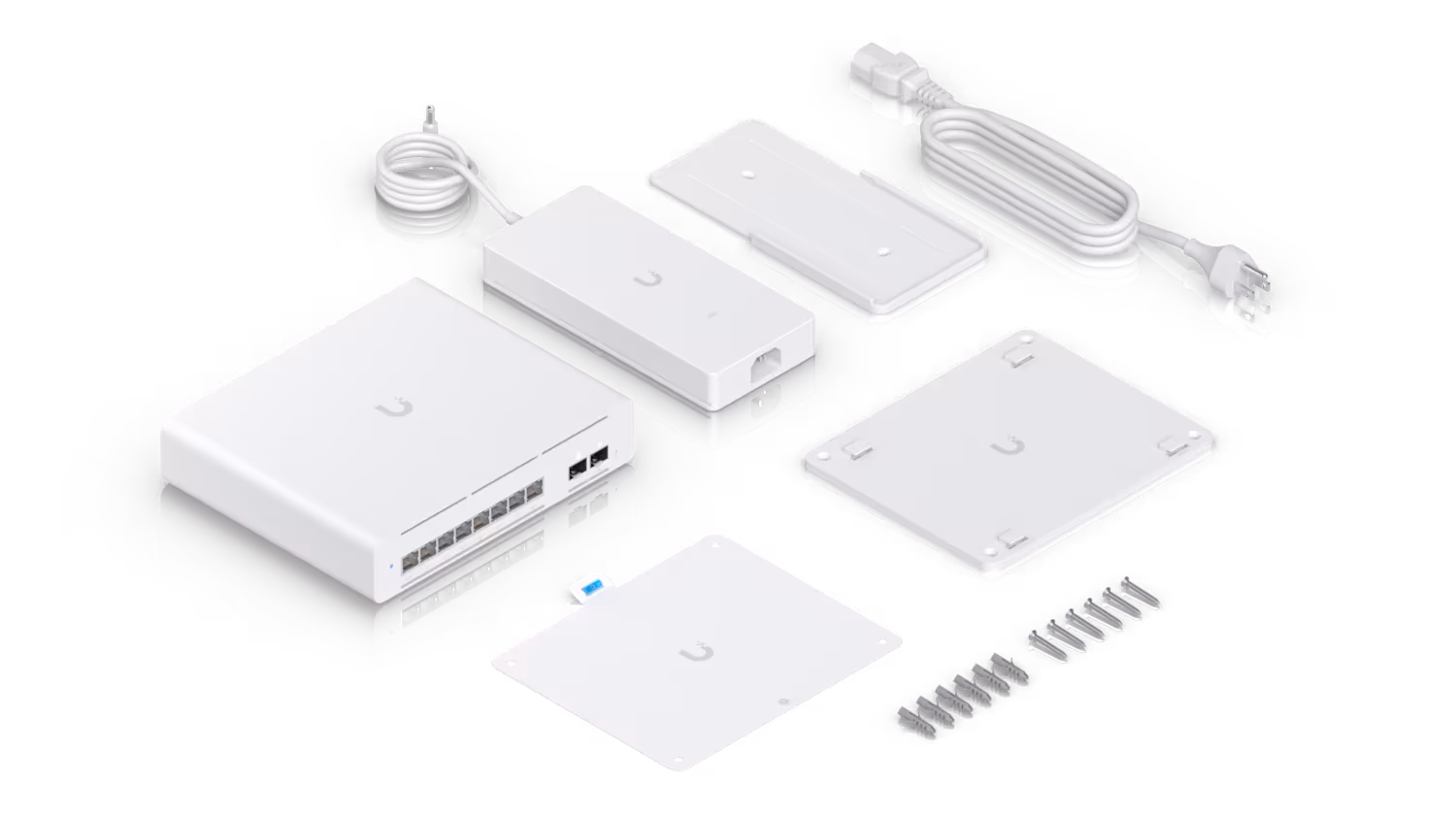

Power Method AC/DC Adapter (included)
Power Input Method DC input
Power Supply AC/DC, external, 210W
Supported Voltage Range 50—57V DC
Management Ethernet AR
Weight 1.6 kg (3.5 lb)
Enclosure Material SGCC steel
Mount Material Polycarbonate
ESD/EMP Protection Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature -5 to 45° C (23 to 113° F)
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting™
- Ethernet ✓
- SFP+ ✓
LEDs
- System ✓
- NDAA Compliant ✓
- Certifications CE, FCC, IC
Application Requirements
UniFi Network Version 9.0.114 and later
