Lýsing
UNI-T UT17BMAX er mælir fyrir atvinnumanninn og alla sem að vilja vita meira um rafmagnið.
UT17B PRO/UT18B MAX 1000V True RMS Digital Multimeters
UT15B PRO/UT17B/18B MAX are highly reliable, safe, and durable True RMS multimeters. Equipped with built-in VFC, it can filter interference, resulting in a more accurate voltage reading. These meters come with gold-plated test leads for quick and precise measurement. They also provide complete range 1000V protection, as well as 8kV transient voltage protection, which can withstand sudden high voltage shocks.

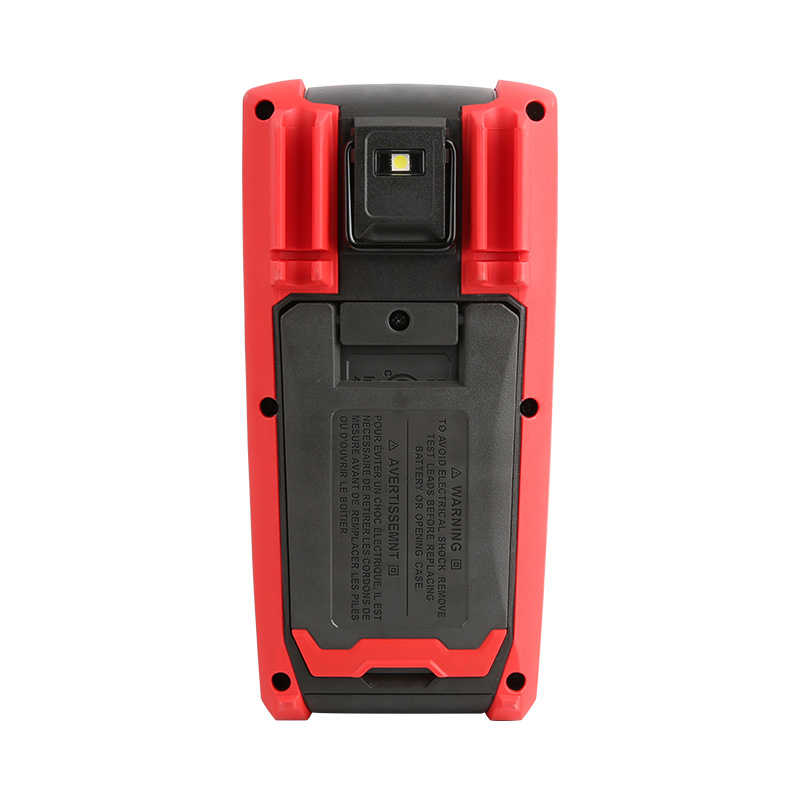

Flashlight and automatic backlight design enable users to troubleshoot electrical equipment easily even in dark environments, they are good tools for electricians.
Features of UT15B PRO/UT17B PRO/UT18B MAX 1000V True RMS Digital Multimeters
Certificates : CE, UKCA, cETLus
| Technical Specifications | UT15B MAX | UT17B MAX | UT18B MAX | |
| Certificates | CE, UKCA, cETLus, REACH, RoHS | |||
| Voltage (DC) | 600.0mV/6.000V/60.00V/600.0V/1000V | ±(0.4%+3) | ±(0.4%+3) | ±(0.4%+3) |
| Voltage (AC) | 600.0mV/6.000V/60.00V/600.0V/1000V | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) |
| VFD (Voltage) | 600.0V | ±(8%) | ±(8%) | ±(8%) |
| Current (AC) | 600.0µA/6000µA /60.00mA/600.0mA/6.000A/10.00A |
±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| Current (DC) | 600.0µA/6000µA /60.00mA/600.0mA/6.000A/10.00A |
±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| Resistance | 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) |
| Capacitance | 6.000nF/60.00nF~600.0µF/6000µF | ±(2.0%+5) | ±(2.0%+5) | ±(2.0%+5) |
| Frequency(Hz) | 10Hz~10MHz | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) |
| Duty cycle | 1%~99.9% | ±(1.0%+4) | ±(1.0%+4) | ±(1.0%+4) |
| Temperature(℃/℉) | -55℃~500℃/–67°F~932°F | – | ±2℃/±4℉ | ±2℃/±4℉ |
| Main features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Continuity / Diode | ✔ | ✔ | ✔ | |
| Data hold | ✔ | ✔ | ✔ | |
| MAX/MIN | ✔ | ✔ | – | |
| Relative mode | ✔ | ✔ | ✔ | |
| Backlight (adjustable) | ✔ | ✔ | ✔ | |
| Auto range/Manual range | ✔ | ✔ | ✔ | |
| Auto power off | ✔ | ✔ | ✔ | |
| Low battery indication | ✔ | ✔ | ✔ | |
| Audible & Visual alarm | ✔ | ✔ | ✔ | |
| LED test | – | – | ✔ | |
| Mis-plug alarm | ✔ | ✔ | ✔ | |
| Any-key wake up | ✔ | ✔ | ✔ | |
| Overvoltage category | CATⅢ 600V | CATⅢ 600V | CATⅢ 600V | |
| General Characteristics | ||||
| Power supply | 2*1.5V AA | 2*1.5V AA | 2*1.5V AA | |
| Product color | 426U+1797C | 426U+1797C | 426U+1797C | |
| Product weight | 455g | 455g | 455g | |
| Product dimension | 182mm*91mm*45mm | 182mm*91mm*45mm | 182mm*91mm*45mm | |
| Accessories | 1pcs User manual, 2 pair Test lead(normal gold plated probe & Fine-tipped probe),1pcs K-type thermocouple (UT17B/UT18B MAX only), 2pcs battery, Magnetic hanger(optional) | |||
| SPQ | 10 pcs | 10 pcs | 10 pcs | |
| Package dimension | 480×370×195mm | 480×370×195mm | 480×370×195mm | |
| Standard package gross weight | Around 9kg | Around 9kg | Around 9kg | |
