Teltonika Switch TSW200, 8 port POE+, 2xSFP port

19.900 kr.

INDUSTRIAL POE+ ETHERNET SWITCH

TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.

Láttu aðra vita

Lýsing

TSW200 is industrial unmanaged switch from Teltonika Networks.

TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.

Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.

This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.

Allar upplýsingar hér

75W spennugjafi hér

Ethernet

ETH 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fibre 2 x SFP ports
IEEE 802.3 series standards 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3z

INDUSTRIAL PROTOCOLS

Profinet Profinet Class A conformance (available with optional order code)

POE OUT

PoE+ ports Port 1 – 8
PoE standards IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (From batch 42) IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (From batch 1-41)
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 240 W

Performance Specifications

Bandwidth (Non-blocking) 20 Gbps
Packer buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes

Power

Connector 2-pin industrial DC power socket
Input voltage range 7 – 57 VDC
PoE-Out input voltage range 44 – 57 VDC
Power consumption Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W
Surge at AC mains power port**: 1kV Line to line; 2kV line to ground, 1.2/50us, IEC 61000-4-5
Surge at signal port (Ethernet): 1kV Line to Ground, 1.2/50us, IEC 61000-4-5

**Tested with Teltonika’s PSU. Test does not apply to direct DC power.

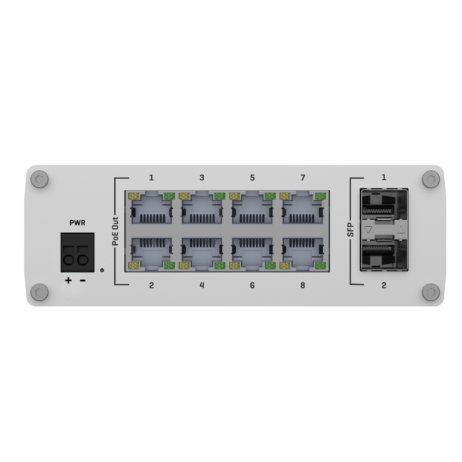

Physical Interfaces

Ethernet 8 x RJ45 ports, 10/100/1000 Mbps
Fibre 2 x SFP ports
Status LEDs 1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs
Power 1 x 2-pin industrial DC power socket
Other 1 x Grounding screw
Casing material Full aluminium housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 517 g
Mounting options Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

Operating temperature -40 °C to 75 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Regulatory CE, UKCA, CITC, ANRT, FCC, IC, CB, MTCTE

EMC Emissions & Immunity

- Standards
  - EN 55032:2015 + A1:2020
  - EN 55035:2017 + A11:2020
  - EN IEC 61000-3-2:2019 + A1:2021
  - EN 61000-3-3:2013 + A1:2019
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020
