Lýsing
Beinir frá Teltonika. RUT240 er hægt að treysta á þegar á reynir. Hann er öruggur LTE router fyrir aðstæður sem að þarf að hafa örugga tengingu. Hann tengið þig með öryggi við netið þar sem að 4G er fyrir hendi en ekki er möguleiki á ljósleiðara eða öðrum tengingum.
MOBILE
- Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
- 3GPP Release 9
Status
- Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS
- SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list
- Operator black/white list
Multiple PDN
- Possibility to use different PDNs for multiple network access and services
Band management
- Band lock, Used band status display
APN
- Auto APN
Bridge
- Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
- Router assigns its mobile WAN IP address to another device on LAN
WIRELESS
- Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- Wi-Fi security WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
- SSID/ESSID SSID stealth mode and access control based on MAC address
- Wi-Fi users Up to 50 simultaneous connections
- Wireless Connectivity Features
- Fast roaming (802.11r), Relayd
- Wireless MAC filter Whitelist, blacklist
- Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information.
NETWORK
Hotspot
- Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
- Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall Port forward, traffic rules, custom rules
- Firewall status page View all your Firewall statistics, rules, and rule counters.
- Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on.
- Network topology Visual representation of your network, showing which devices are connected to which other devices.
- DHCP Static and dynamic IP allocation, DHCP Relay
- QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS Supported >25 service providers, others can be configured manually
- Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing Balance Internet traffic over multiple WAN connections
- SSHFS Possibility to mount remote file system via SSH protocol
ETHERNET
- WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
- LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
SECURITY
- Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
- Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN Port and tag-based VLAN separation
- Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
- OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN Method of building scalable IPsec VPNs
- SSTP SSTP client instance support
- ZeroTier ZeroTier VPN client support
- WireGuard WireGuard VPN client and server support
- Tinc Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
MODBUS TCP SLAVE
- ID range Respond to one ID in range [1;255] or any
- Allow Remote Access Allow access through WAN
- Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
MODBUS TCP MASTER
- Supported functions 01, 02, 03, 04, 05, 06, 15, 16
- Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
DATA TO SERVER
- Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
- Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server.
MQTT GATEWAY
-
MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker
DNP3
-
Supported modes TCP Master, DNP3 Outstation
DLMS
-
DLMS Support DLMS – standard protocol for utility meter data exchange
MONITORING & MANAGEMENT
- WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
- FOTA Firmware update from server, automatic notification
- SSH SSH (v1, v2)
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
- TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT MQTT Broker, MQTT publisher
- SNMP SNMP (v1, v2, v3), SNMP Trap
- JSON-RPC Management API over HTTP/HTTPS
- MODBUS MODBUS TCP status/control
- RMS Teltonika Remote Management System (RMS)
IOT PLATFORMS
- Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
- ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type Cumulocity
- Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
- Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
- CPU Mediatek, 580 MHz, MIPS 24KEc
- RAM 128 MB, DDR2
- FLASH storage 16 MB, SPI Flash
FIRMWARE / CONFIGURATION
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA Update FW
- RMS Update FW/configuration for multiple devices at once
- Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMISATION
- Operating system RutOS (OpenWrt based Linux OS)
- Supported languages Busybox shell, Lua, C, C++
- Development tools SDK package with build environment provided
- GPL customization You can now create your own custom firmware and web page application, with some examples to make the creation process easier; and brand our firmware by changing colours, logos, and so on to fit your or your clients’ needs.
INPUT / OUTPUT
- Input 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
- Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
- Events Email, RMS, SMS
- I/O juggler Allows to set certain I/O conditions to initiate event
POWER
- Connector 4-pin industrial DC power socket
- Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
- PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC
- Power consumption < 6.5 W Max

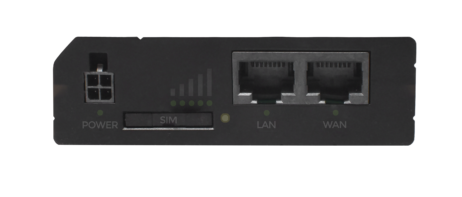

PHYSICAL INTERFACES
- Ethernet 2 x RJ45 ports, 10/100 Mbps
- I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
- Status LEDs 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
- SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
- Power 1 x 4-pin power connector
- Antennas 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
- Reset Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
- Casing material Aluminium housing, plastic panels
- Dimensions (W x H x D) 83 x 25 x 74 mm
- Weight 125 g
- Mounting options Bottom and sideways DIN rail mounting slots
OPERATING ENVIRONMENT
- Operating temperature -40 °C to 75 °C
- Operating humidity 10% to 90% non-condensing
- Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
- Regulatory CB
EMC EMISSIONS & IMMUNITY
- ESD EN 61000-4-2:2009
- RS EN IEC 61000-4-3:2020
- EFT EN 61000-4-4:2012
- Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
- CS EN 61000-4-6:2014
- DIP EN IEC 61000-4-11:2020
