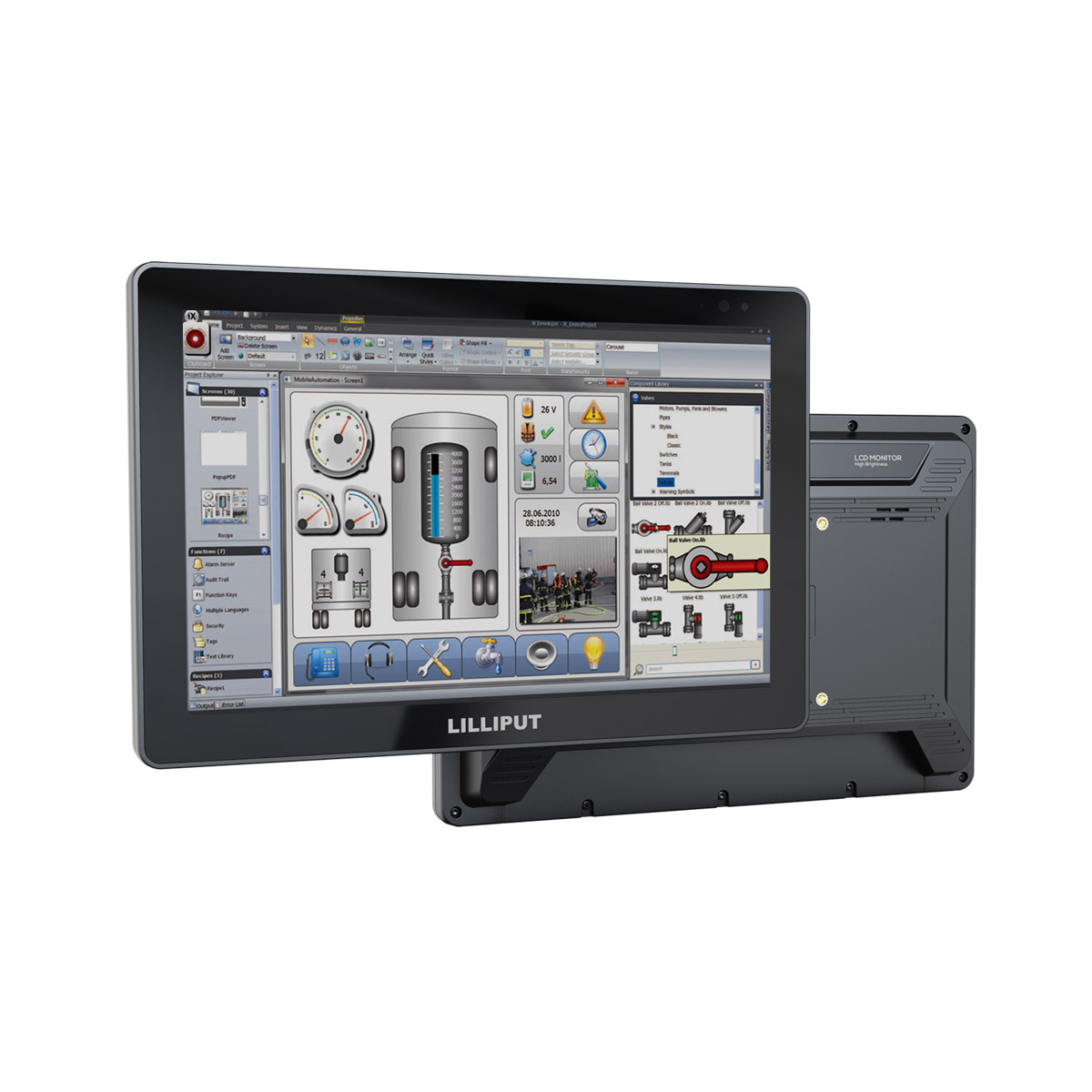

Lilliput FA1019/T

58.500 kr.

FA1019/T with a 1500 nits high brightness screen, it comes with 10.1″ 1920×1200 resolution and capacitive touch function. And suitable for a wide range of outdoor industrial and commercial applications in the market, such as POI/POS, Kiosk, HMI and all kinds of heavy-duty industrial field equipment systems. There are different install way for the touch screen monitor, Whether as a desktop device for control centers, as a built-in unit for control consoles or as PC-based visualization and control solutions requiring a spatially divided setup of the operator panel and the industrial PC or server, and the optimal solution – as a stand-alone solution or also with several control stations in extensive visualization and control solutions.

Vöruflokkur: Framleiðandi:
Láttu aðra vita


10.1 inch 1500nits High Brightness Industrial-Grade Touch Monitor

  • Model:FA1019/T
  • Display:10.1 inch, 1920×1200, 1500nit
  • Input:HDMI, VGA, USB Type-C
  • Optional:IP65 Frame With Extension Cable
  • Feature:1500nits, Auto Dimming, 50000h LED Life, Capacitive Touch Screen

DISPLAY      Touch Screen Capacitive touch
Panel 10.1” LCD
Physical Resolution 1920×1200
Aspect Ratio 16:10
Brightness 1500 nit
Contrast 1000:1
Viewing Angle 170°/ 170°(H/V)
LED Panel Life Time 50000h
USB 1 (USB Type-C)
SUPPORT FORMATS VGA 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
HDMI 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT HDMI 8ch 24-bit
Ear Jack 3.5mm – 2ch 48kHz 24-bit
Built-in Speakers 1
POWER Input Voltage DC 12-24V
Power Consumption ≤19W (12V)
ENVIRONMENT IP65 Rating IP65 (Only available for the monitor with extension cable)
Operating Temperature -20°C~60°C
Storage Temperature -30°C~80°C
OTHER Dimension(LWD) 251mm × 170mm × 33mm
Weight 820g
EXTENSION CABLE HDMI Extension Cable HDMI, USB-A (For touch)
VGA Extension Cable VGA, USB-A (For touch)
