Lýsing

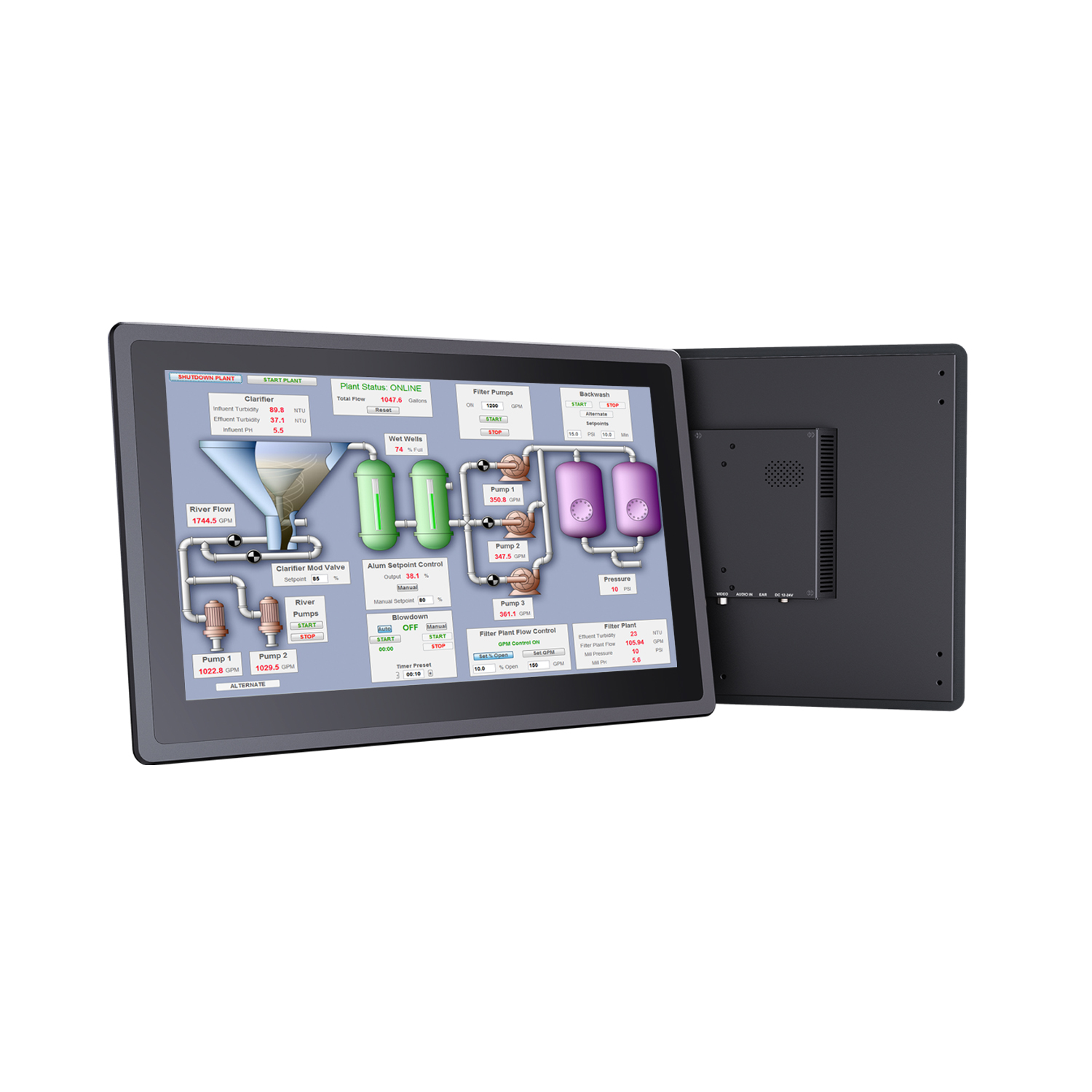

18.5 inch touch screen monitor
- Model No.:TK1850/C & TK1850/T
- Display:18.5″ / 1920×1080 / 1000 nits

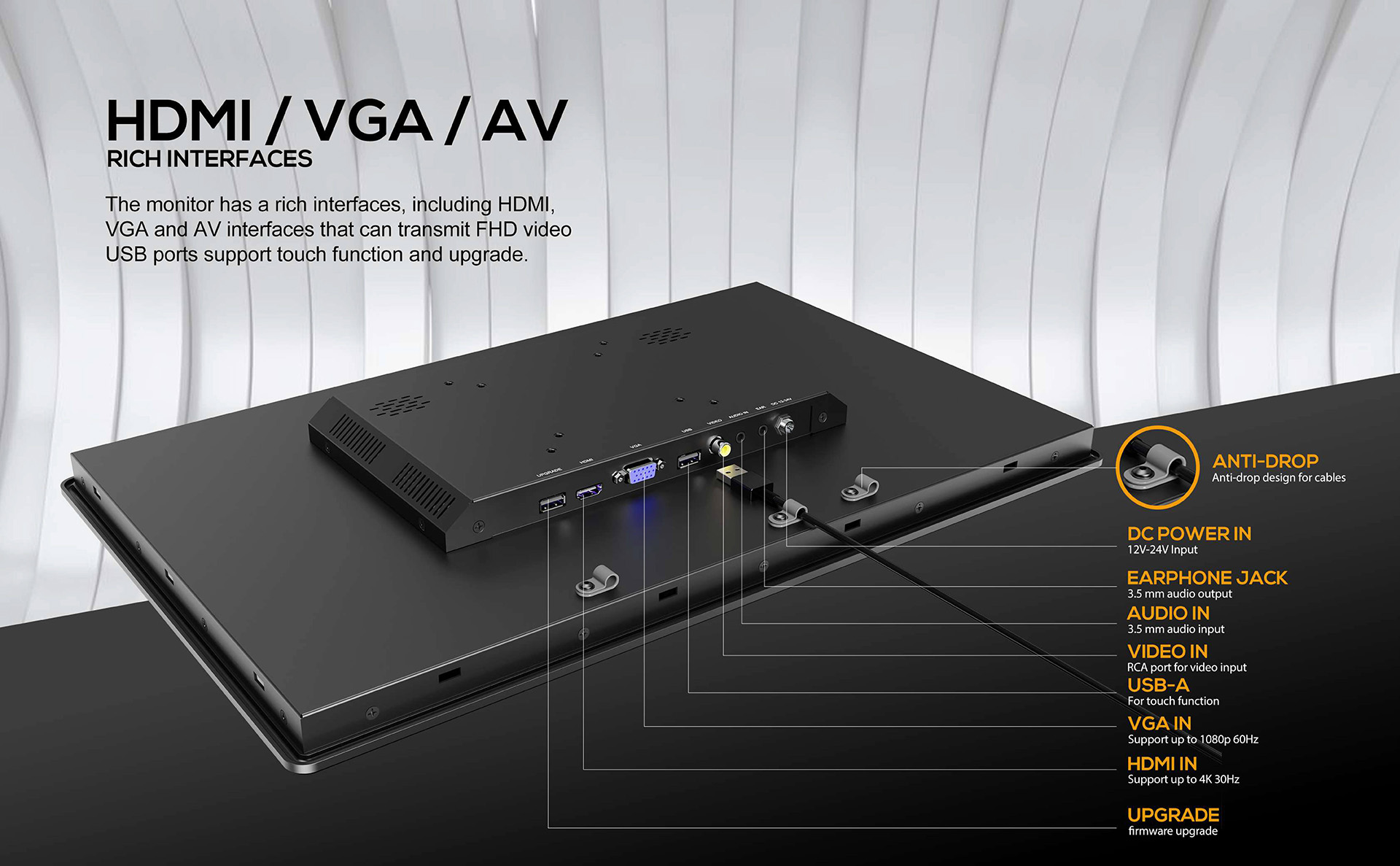

- Input:HDMI, VGA, AV, USB-A
- Audio In/Out:Speaker, HDMI, Ear Jack
- Features:1000nits Brightness, 10-points PCAP, 7H Hardness Screen, IK07 & IP65/NEMA4 Front Panel, Metal Housing, Auto Dimming
| MODEL NO. | TK1850/C | TK1850/T | |
| DISPLAY | Touch Screen | Non-touch | 10-point PCAP |
| Panel | 18.5” LCD | ||
| Physical Resolution | 1920×1080 | ||
| Brightness | 1000 nits | ||
| Aspect Ratio | 16:9 | ||
| Contrast | 1000:1 | ||
| Viewing Angle | 170° / 170° (H/V) | ||
| Coating | Anti-glare, anti-fingerpint | ||
| Hardness/ Collosion | Hardness ≥7H (ASTM D3363), Collision ≥IK07 (IEC6262 / EN62262) | ||
| INPUT | HDMI | 1 | |
| VGA | 1 | ||
| Video & Audio | 1 | ||
| USB | 2×USB-A (For touch and upgrade) | ||
| SUPPORTED FORMATS |
HDMI | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | |
| VGA | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | ||
| Video & Audio | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | ||
| AUDIO IN/OUT | Speaker | 2 | |
| HDMI | 2ch | ||
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit | ||
| POWER | Input Voltage | DC 12-24V | |
| Power Consumption | ≤32W (15V) | ||
| ENVIRONMENT | IP Rating | Front panel IP65 (IEC60529), Front NEMA 4 | |
| Vibration | 1.5Grms, 5~500Hz, 1 hr/axis (IEC6068-2-64) | ||
| Shock | 10G, half-sine wave, last 11 ms (IEC6068-2-27) | ||
| Operating Temperature | -10°C~60°C | ||
| Storage Temperature | -20°C~60°C | ||
| DIMENSION | Dimension(LWD) | 475mm × 296mm × 45.7mm | |
| Weight | 4.6kg | ||
