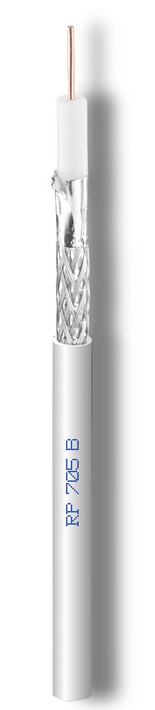

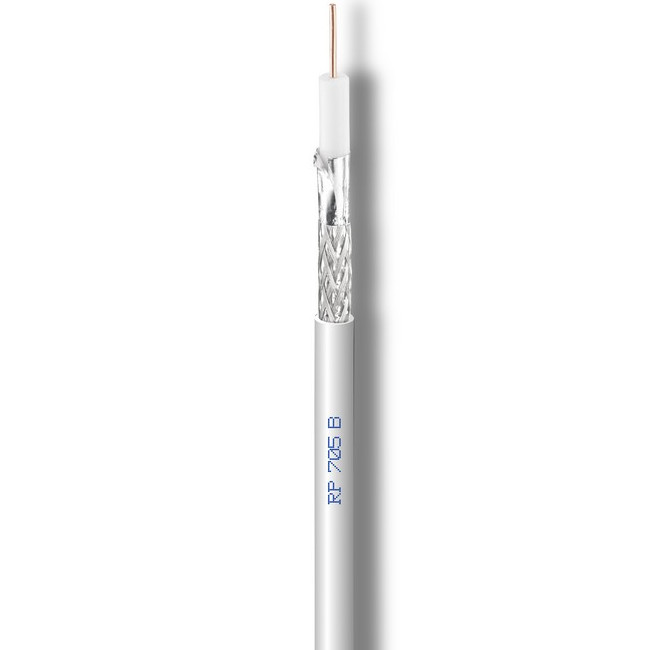

Kóax kapall – 6,8mm RP705B

135 kr.

Flokkar: ,

Lýsing

Cavel er kapalframleiðandi á Ítalíu sem að framleiðir aðeins hágæða kapla. Við bjóðum hér helstu gerðir af kapli frá þeim. Hann fæst á 100 og 500 metra rúllum. Seljum hann í metravís hér.

acc. to Standard EN 50117-2-4
Fire-Resistance Rating IEC 60332-1
CONSTRUCTION DATA
Inner Conductor Ø mm 1,13
material Cu
Dielectric Ø mm 4,75
material PEG
Film Foil Laminate material AP
Braid material Al
Braid Optical Coverage % 43
Diameter over Braid Ø mm 5,16
Outer Sheath Ø mm 6,8
material PVC
PHYSICAL DATA
Copper Content kg/km 8,9
Cable Weight kg/km 37,7
Min bending radius x 1/n mm 35/70
Max.Tensile Strength N 150
Fire Load MJ/km 651
kWh/km 181
ELECTRICAL DATA
Impedance Ohm 75±3@200 MHz
Capacitance (@1kHz) pF/m 52 ± 2
Velocity Ratio % 85
Attenuation (at 20°C )
at 5 MHz dB/100m 1,5
at 10 MHz dB/100m 2,0
at 30 MHz dB/100m 3,1
at 50 MHz dB/100m 4,0
at 200 MHz dB/100m 8,1
at 300 MHz dB/100m 10,0
at 470 MHz dB/100m 12,5
at 800 MHz dB/100m 16,6
at 1000 MHz dB/100m 18,7
at 1750 MHz dB/100m 25,3
at 2150 MHz dB/100m 28,9
at 2400 MHz dB/100m 30,1
at 3000 MHz dB/100m 35,0
Structural return loss (SRL)
at 5 – 470 MHz dB >30
at 470 – 1000 MHz dB >28
at 1000 – 2000 MHz dB >26
at 2000 – 3000 MHz dB >22
Shield Transfer Impedance (Zt) Class B
5 – 30 MHz mOhm/m < 14
Screening Attenuation (SA) Class A+
at 30 – 1000 MHz dB >95
at 1000 – 2000 MHz dB >90
at 2000 – 3000 MHz dB >80
DC Conductor Resistance inner/outer Ohm/km 18,0 / 22,0
Loop resistance Ohm/km 40,0
Sheat Insulation voltage (spark test) kV 3,0
Maximum current (Ieff) A 8
