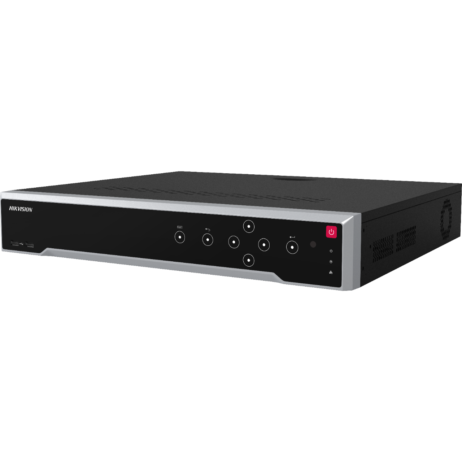

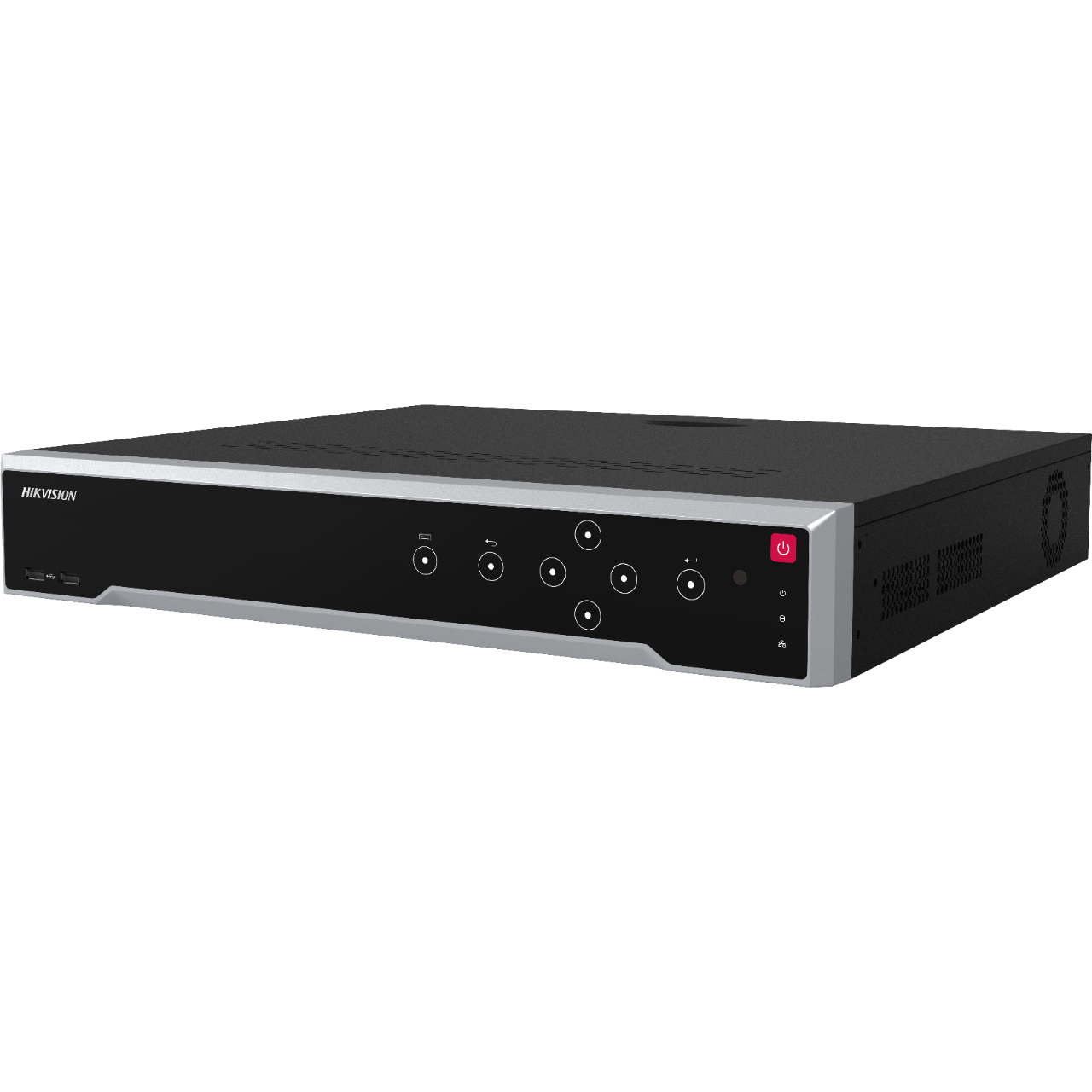

Hikvision upptökutæki, 32 rásir 16 PoE – DS-7732NI-K4/16P

150.310 kr.

32-ch 1.5U 16 PoE 4K NVR

  • Up to 32-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch @ 8MP or 4-ch @ 4MP or 8-ch @ 1080P decoding capacity
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 4 HDDs for continuous video recording
  • Up to 256 Mbps incoming bandwidth
  • Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Vöruflokkar: , Merki: , Framleiðandi:
Láttu aðra vita

Lýsing

Hikvision Upptökutæki fyrir 32 vélar með 16 POE

Nánar hér

Leiðbeiningar hér

  • Video and Audio
  • IP Video Input32-ch
  • HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA OutputHDMI,VGA
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Incoming Bandwidth320 Mbps/256 Mbps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264
  • Decoding Capability16-ch@1080p
  • Synchronous playback16-ch
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF /DCIF/ 2CIF/CIF/QCIF
  • Network
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Remote Connection128
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
  • Power≤200W
  • StandardIEEE 802.3 af/at
  • RAID
  • RAID TypeNo
  • Auxiliary Interface
  • SATA4
  • CapacityUp to 8TB capacity for each HDD
  • Serial Interface1 RS-485 (half-duplex), 1 RS-232
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out16/8
  • General
  • Power Supply100 to 240 VAC ≤300 W
  • Consumption≤20 W (without enabling PoE)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
  • ≤ 5 kg (11 lb)
