UniFi 8 sfp+ porta Switch – USW-Aggregation

67.850 kr.

The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports.

Láttu aðra vita

Lýsing

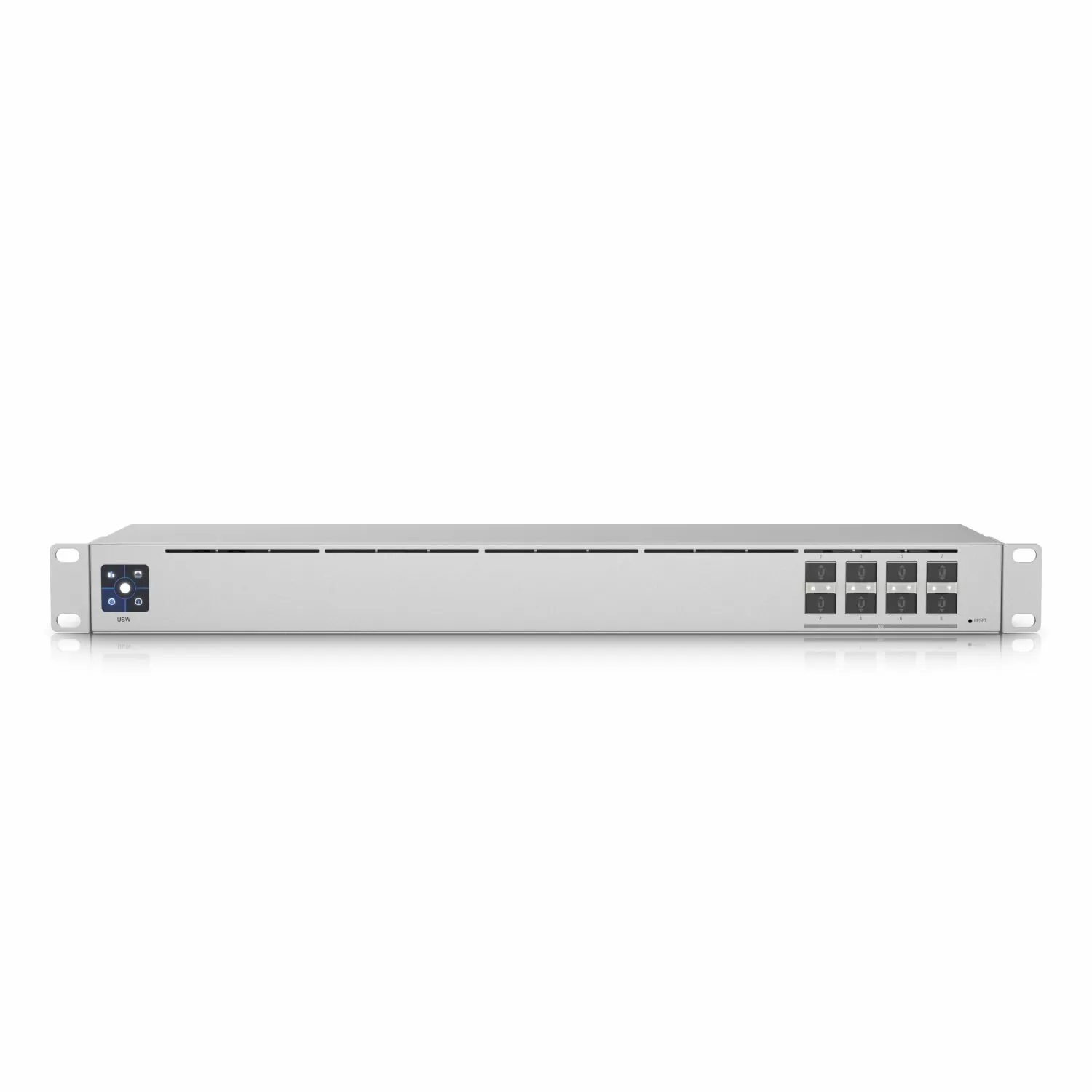

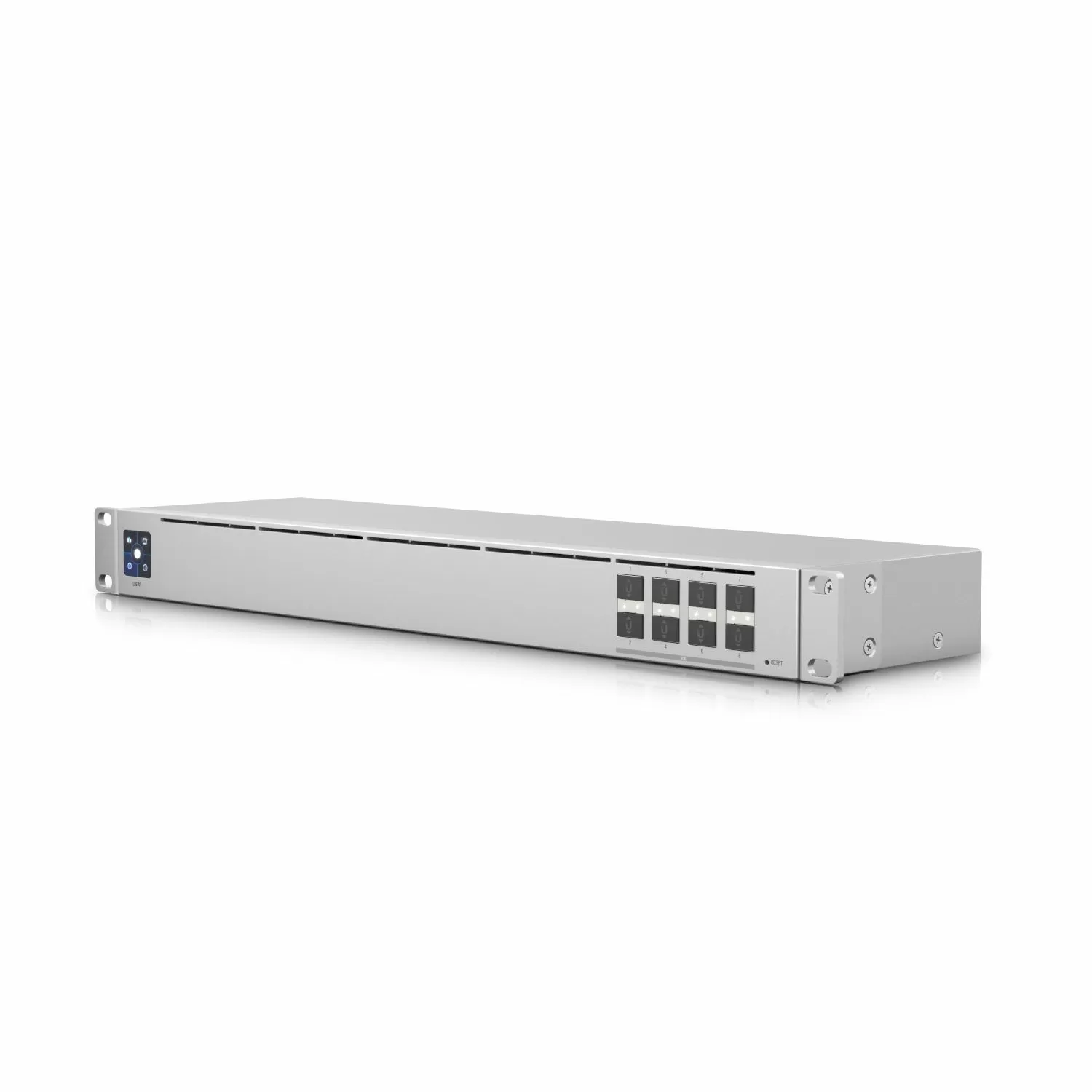

The Switch Aggregation is a fully managed, Layer 2 switch with (8) 10G SFP+ ports designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.

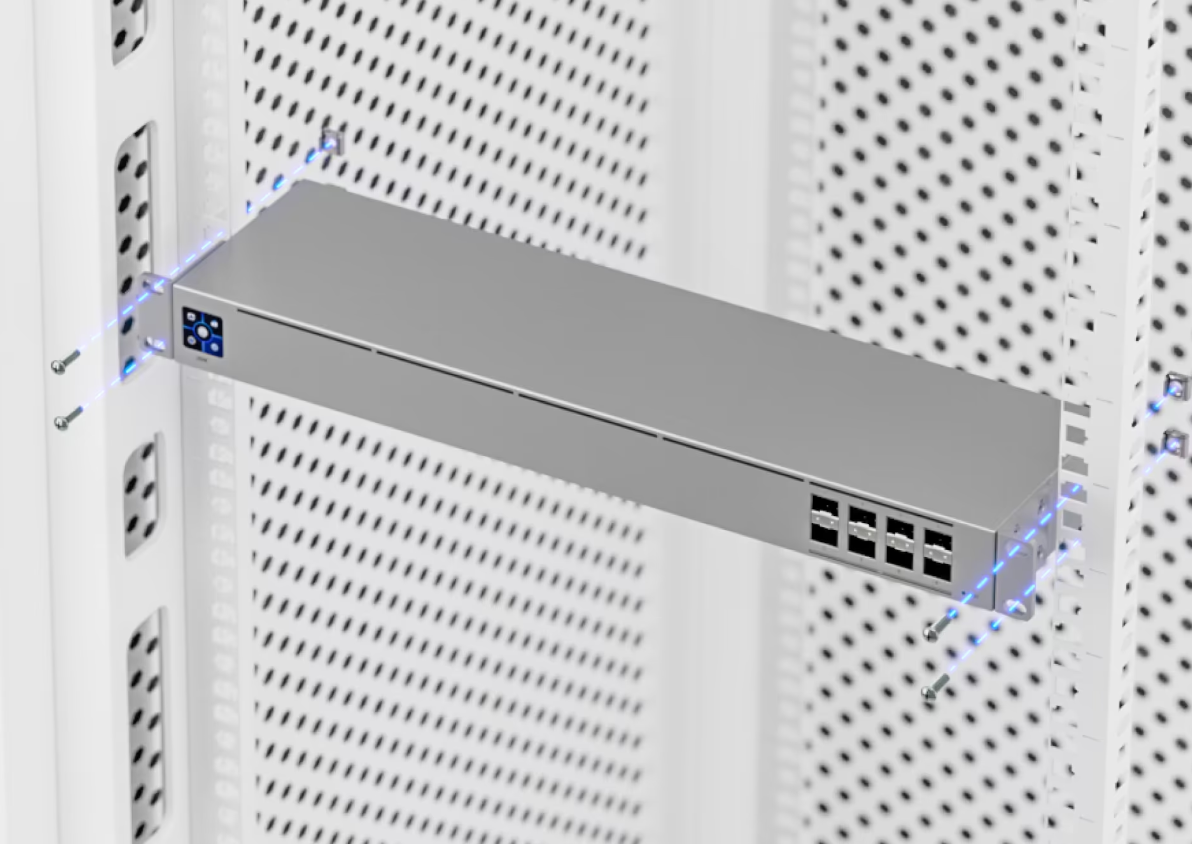

Additionally, with its 4.7″ depth, it’s easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

High-bandwidth core switching for maintaining maximum performance in large networks.



Mechanical
Dimensions 442.4 x 120 x 43.7 mm (17.4 x 4.7 x 1.7″)
Weight Without mounting brackets: 2.6 kg (5.8 lb)

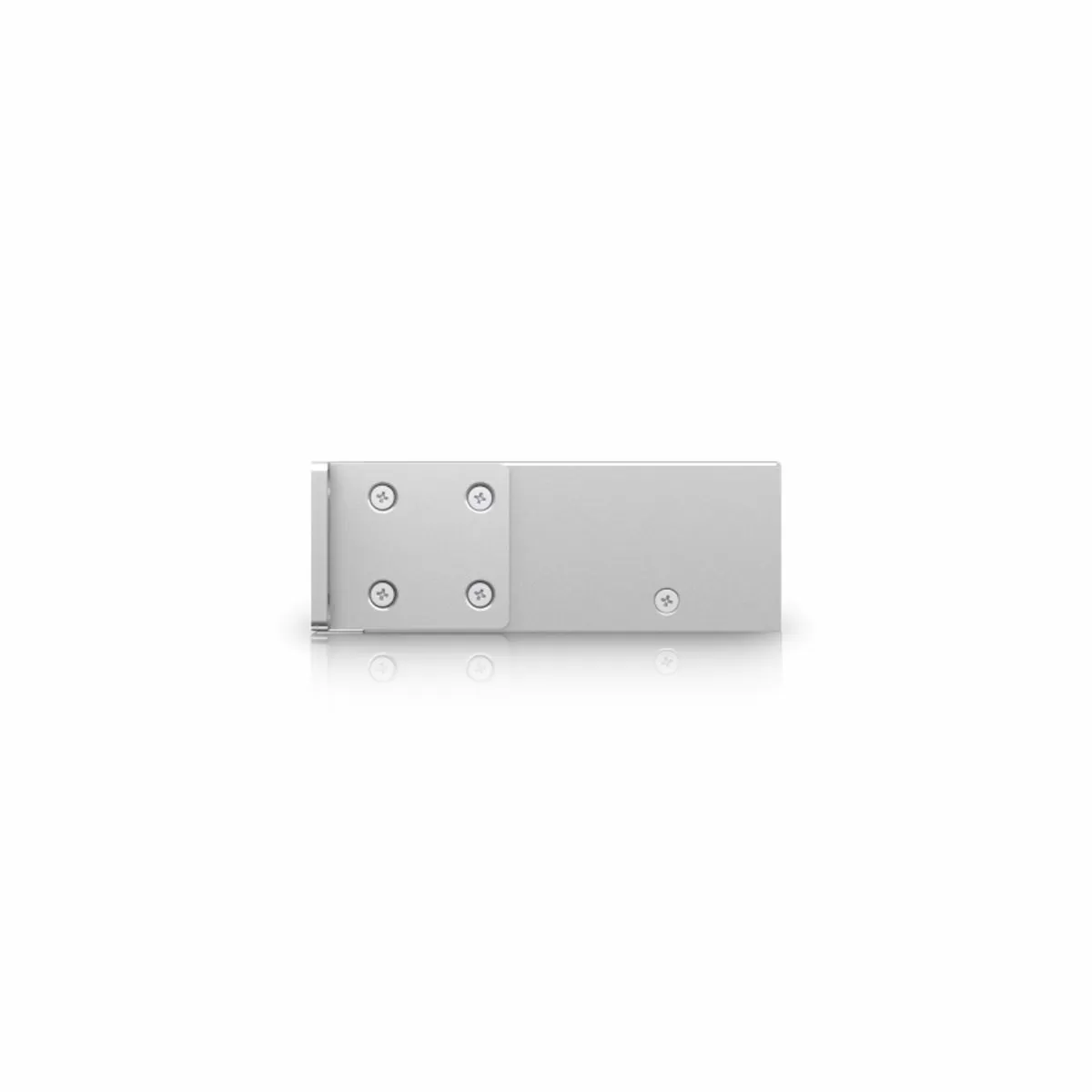

With mounting brackets: 2.7 kg (6 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (8) 10G SFP+ ports
Total non-blocking throughput 80 Gbps
Switching capacity 160 Gbps
Forwarding rate 119.04 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 36W
Supported voltage range 100—240V AC
Max. power consumption 30W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Max. number of supported SFP+ modules UACC-OM-MM-10G: 8
UACC-OM-SM-10G: 8
UACC-CM-RJ45-10G: 4
Services SMB Layer 2 GbE switch
LCM display (1) 1.3″ LCM color touchscreen
Button Factory reset
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
SFP+ Link/activity
Application Requirements
UniFi Network Version 5.14.12 and later
