HDMI framlenging, mini – DS-55203

14.670 kr.

Láttu aðra vita

Lýsing

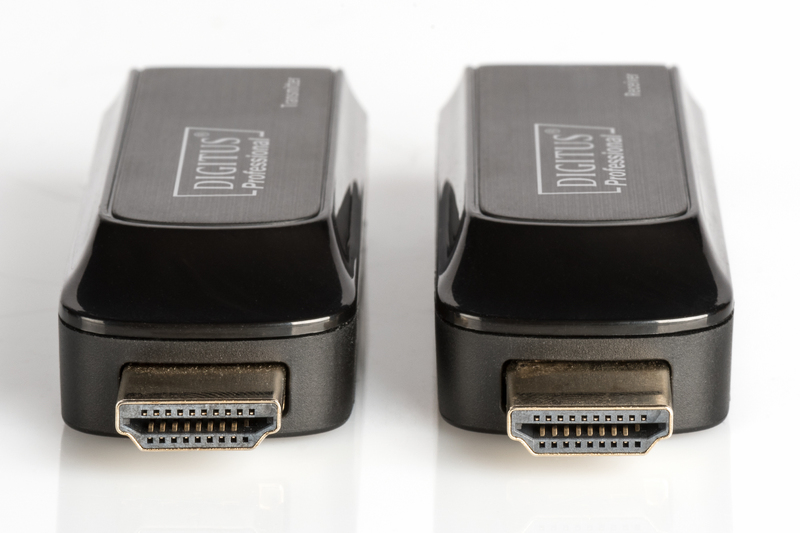

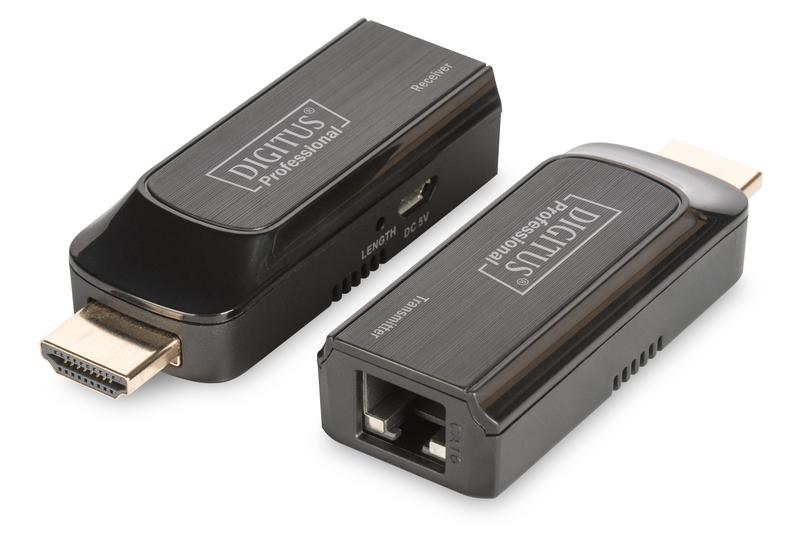

Mini HDMI Extender Set, Full HD, 1080p 50m, Cat6/6A/7, powered via Micro USB cable, bk

Extends the maximum length for HDMI cables to up to 50 m whereby only a simple network cable is used between a sender and a receiver unit

  • Extends the maximum length for HDMI cables to up to 50 m whereby only a simple network cable is used between a sender and a receiver unit
  • Extends Full HD video content to up to 50 m using a CAT 6/6A/7 cable
  • Supports resolutions to up to 1080p/60Hz
  • Ultra compact design – can be positioned easily and discreetly almost everywhere
  • Power supply via a Micro USB cable – Use the USB port of your PC/laptop, a USB charger, etc. to supply power to the extender
  • Supports PoE – Only one unit must be power supplied using the Micro USB cable
  • Offers simple and quick distribution for HDMI video signals – position your monitors wherever you wish

The Mini HDMI Extender Set from DIGITUS extends the maximum length for HDMI cables to up to 50 m whereby only a simple network cable (Cat 6/6A) is used between a transmitter and a receiver unit. Supports a maximum video resolution of 1080p/60Hz. The power supply is provided by the included Micro USB cable, whereby only one unit must be power supplied. Thanks to this feature and the ultra compact design, the Extender Set can be positioned easily and discreetly almost everywhere. Position your screen wherever you want.

Technical Details

  • Extends the maximum length for HDMI cables to up to 50 m whereby only a simple network cable is used between a sender and a receiver unit
  • Extends Full HD video content to up to 50 m using a CAT 6/6A/7 cable
  • Supports resolutions to up to 1080p/60Hz
  • Power supply via a Micro USB cable – Use the USB port of your PC/laptop, a USB charger, etc. to supply power to the extender
  • Supports PoE – Only one unit must be power supplied using the Micro USB cable
  • Ultra compact design – can be positioned easily and discreetly almost everywhere
  • Offers simple and quick distribution for HDMI video signals – position your monitors wherever you wish
  • Supports HDCP 1.2
  • Supports CAT 6, CAT 6A, CAT 7 network cables
  • Complies with the IEEE-568B standard
  • HDMI bandwidth: 10.2 Gps (max.)
  • Housing: ABS Plastic
  • Operating temperature: 0 ~ 50° C
  • Ambient temperature: -10 ~ 70° C
  • Air humidity (no condensation): 0 ~ 90%
  • Dimensions (1 unit): L 7.1 x W 2.6 x H 1.1 cm
  • Weight (1 unit): 10 g
  • Color: Black
  • KVM: no
  • PoE (Power over Ethernet): yes
  • Distance: 50 m
  • HDTV Resolution max.: 1920 x 1080 Pixel, 60Hz
  • HDTV Standard: Full HD
  • Category: CAT 6

Package content

  • 1x Mini HDMI Extender Transmitter Unit
  • 1x Mini HDMI Extender Receiver Unit
  • 2x Micro USB Cable (1.0 m)
  • User manual
