Gigabit Ethernet skiptir, 16 porta – TL-SG1016D

16.900 kr.

Vöruflokkar: , , Merki: , , Framleiðandi:
Láttu aðra vita

Lýsing

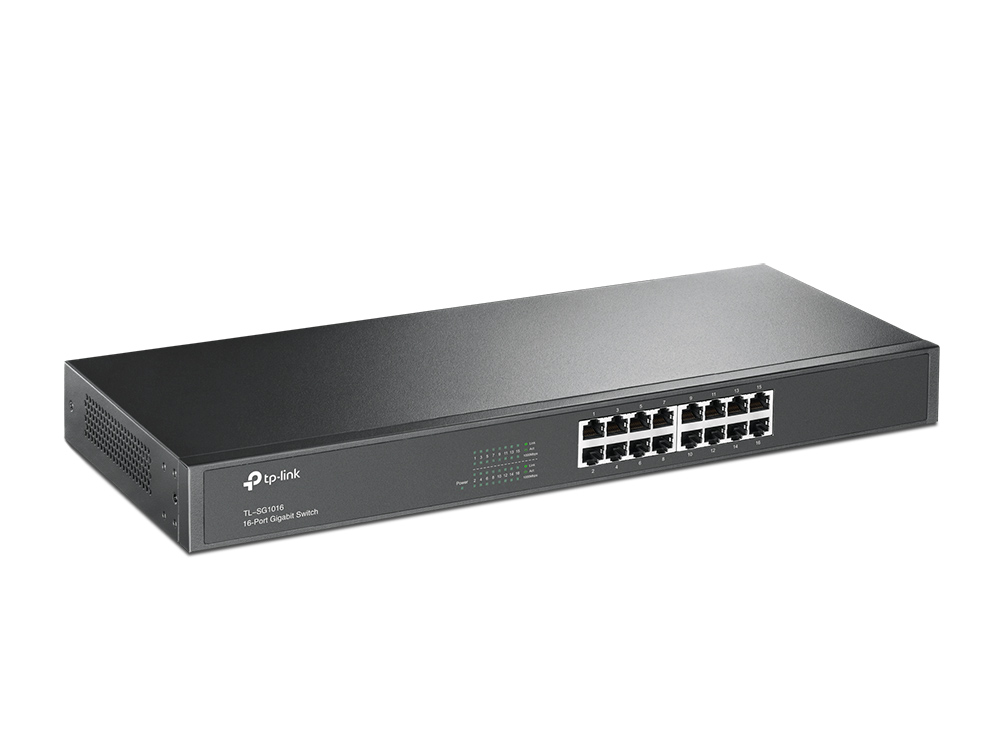

SG16 (16 PORT Gigabit Ethernet Switch 10/100/1000Mb)

SG16 is a 16-port unmanaged switch. lt is a smart high performance gigabit switch that provides an ideal solution for workgroup or department Gigabit applications. With 16 10/100/1000BASE-T

(AUTO-MDIX) Gigabit Ethernet ports, this switch can provide full bandwidth up to 2000Mbps in full duplex mode. Also it supports easy-to-view LED indicators for cable installation and normal operational diagnostics. It can be installed on desktop or in rack-mount.

Features:

– Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards.

– 16 ports 10/100/1000Mbps auto-negotiation ports.

– Supports flow control for each port.

– Supports store and forward switching scheme capability.

– Supports NWay auto-negotiation for all ports.

– Supports auto MDI/MDIX for each port.

– Supports per-port bandwidth control.

– Supports PHY register read/write access.

Specifications:

General
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3X
Interface 16*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
Power Supply 100V~240VAC,50/60HZ
Dimensions 440mm x 160mm x 44.6mm(L x W x H)
LED Power, Link/Activity
MAC Address Learning Auto-learning, auto update
MAC Address Table 8K
Network Media -10Base-T: UTP Cat 3, 4, 5 cable (100m, max.)

-EIA/TIA-568 100ΩSTP (100m max.)

-100Base-Tx: UTP Cat 5, 5e cable (100m, max.)

-EIA/TIA-568 100ΩSTP (100m max.)

-1000Base-T: UTP Cat 5, 5e cable (100m,max.)

Frame Filtering -10Mbps: 14,880pps

-100Mbps:148,800pps

-1000Mbps:1,488,000pps

Backup Bandwidth 32Gbps
Transmission Method Store-and-forward
Environment – Operating Tem perature: 0°C ~40°C (32°F~104°F)

– Storage Tem perature: -40°C~70°C (-40°F~158°F)

– Operating Humidity: 10%~90% non-condensing

– Storage Humidity: 5%~95% non-condensing
