Nú er loksins á Íslandi hægt að fá mælitæki og annað frá Rover Laboratories S.p.A. á Ítalíu. Þeir hafa framleitt rafeindabúnað síðan 1972 í þorpi sem heitir Rivoltella del Garda, í Colombare di Sirmione við Garda vatnið (frægur ferðamannastaður). Núna starfa þeir í 2500 fermetra nútíma verksmiðju 120 Km frá Mílanó. Fyrirtækið skiptist í tvær deildir, mælitækjadeild sem framleiðir loftnetsmæla, gervihnattamæla og fleira. Hinsvegar er það gervihnattadeildin sem framleiðir móttökubúnað fyrir sjónvarpsstöðvar og kapalkerfi.

Hér er mælasíða Rover

Upplýsingar um stafrænt sjónvarp

ROVER CATALOGUE 17

HD TAB 9

ROVER_HD_TAB_9_STCOI_bag_DYN796SPECIAL FUNCTIONS

  • Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode.
  • HELP function: automatically identifies all the signals with digital modulation SAT, TV and CATV.
  • Automatic Assistant: Signal Quality analysis, Channel Scan memorization.
  • Barscan TV & CATV function from 10 to 100 channels on one screen.
  • Buzzer & Noise Margin real time graph for digital signals microinterruptions.
  • Reflectometric measurements
  • PRODRIVE TEST: Single or multiple CHs measurements acquisition with GPS logging and mapping
  • REMOTE MONITORING and LOGGING: TS, measurements, spectrum, thumbnails.
  • Optical Input signals (opt)
  • SATELITE: SAT SCR, DiSEqC, SCR & DCSS, Motorized antenna, Dual LNB, SAT FINDER, SAT EXPERT
  • Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard.
  • Loggers: TV, SAT & combined with stop & go function.
  • SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite.
  • AVAILABLE OPTIONAL APPs: GPS RECEIVER, IPTV, ASI IN/OUT, REMOTE MONITORING via SNMP, SAT EXPERT

SPECIFICATIONS: MEASUREMENTS & SPECTRUM ANALYSIS

  • Frequency Range: TV, CATV & and Radio: 4-1000 MHz; SAT: 950 2150 MHz”
  • Frequency Resolution: TV & CATV 25 KHz; SAT: 5 or 1 MHZ selectable”
  • Power range Meas.: TV 28 to 130 dB_V, SAT 30 to 130 dB_V.
  • Digital Meas: Digital Power, MER (32 to 42 dB depending on modulation), BER, PER, LDPC, PC, BCH, Noise Margin, MER versus CARRIER (opt.).
  • Analog Meas.: Analog level, V/A ratio, Analog Pictures
  • Measurement Resolution: 0.1 dB
  • Level Measurement Accuracy: 1 dB typ. (2 dB max.)
  • Resolution Filter Bandwidth: TV&CATV: 100 KHz @ -3 dB; SAT: 1 MHz or 5 MHz @ -3 dB selectable”
  • Constellation: for TV and SAT signals.
  • Spectrum: Real time, Max Hold and spectrum memorization with real time compare function,
  • Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position.
  • Echoes, Pre-echoes, Micro-echoes: Representation in real Time.
  • Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL.
  • TS: TR 101 290 v1.2.1 ANALYSIS, SI, PMT, bit rate, network delay, MPEG services and tables.
  • IPTV: measurements and picture decoding (opt)

OPTICAL MEASUREMENTS

  • FC-ST-SC interchangeable input connectors
  • Automatic loss calculation
  • Wavelengths (nm): 850,1310, 1490, 1550
  • Range: -25 to 10 dBm
  • Resolution: 0.1 dB
  • Accuracy: +/- 0.5 dB
  • Optical to RF conversion

COMM. PORTS AND OUTPUTS

  • RF Input : 75 ohm (interchangeable “F” )
  • DOCSIS 3.0 and RF: F – Female
  • LAN: RJ45 10/100 base Ethernet
  • USB 2.0: Type B (PC Interface)
  • USB 2.0: Type A (USB drive)
  • Digital Pictures: MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen.
  • Audio: AAC supplied, DOLBY opt.
  • Asynchronous Serial Interface (ASI): ASI input on 75Ω BNC connector, ASI output on 75Ω BNC connector (opt)
  • Audio / Video: Composite A/V input, HDMI output
  • Common Interface: PCMCIA slot for single/multi-service CAM modules

GENERAL SPECIFICATIONS

  • 9” TFT TOUCH display: 16:9 high resolution and high brightness
  • Power Supply: Built in LiPoLI-ion battery with up to 6 hours duration & Battery Test function
  • DC voltage at RF input: 5 – 12 – 18 – 24 V, DiSEqC, SCR.
  • PC Interface: USB
  • Display: Color LCD 9” (480px x 800px)
  • Front-Panel: Alpha numeric keypad
  • Power Save: TFT backlight timer, brightness adj.
  • PC Management: SMART software
  • Weight: only 2,6 Kg with batteries, Size: 323 mm x 175 mm x 60 mm
  • Housing: Aluminium and Steel and padded bag.

ROVER HD TAB 9 bæklingur

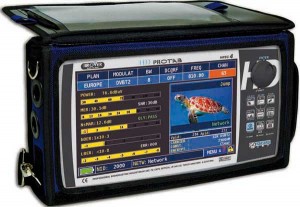

HD PROTAB 10

ROVER_HD_PROTAB_bag_DYN966SPECIAL FUNCTIONS

  • Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode.
  • HELP function: automatically identifies all the signals with digital modulation SAT, TV and CATV.
  • Automatic Assistant: Signal Quality analysis, Channel Scan memorization.
  • Barscan TV & CATV function from 10 to 100 channels on one screen.
  • Buzzer & Noise Margin real time graph for digital signals microinterruptions.
  • Reflectometric measurements
  • PRODRIVE TEST: Single or multiple CHs measurements acquisition with GPS logging and mapping
  • REMOTE MONITORING and LOGGING: TS, measurements, spectrum, thumbnails.
  • Optical Input signals (opt)
  • SATELITE: SAT SCR, DiSEqC, SCR & DCSS, Motorized antenna, Dual LNB, SAT FINDER, SAT EXPERT
  • Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard.
  • Loggers: TV, SAT & combined with stop & go function.
  • SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite.
  • AVAILABLE OPTIONAL APPs: GPS RECEIVER, IPTV, ASI IN/OUT, REMOTE MONITORING via SNMP, SAT EXPERT

SPECIFICATIONS: MEASUREMENTS & SPECTRUM ANALYSIS

  • Frequency Range: TV, CATV & and Radio: 4-1000 MHz; SAT: 950 2150 MHz”
  • Frequency Resolution: TV & CATV 25 KHz; SAT: 5 or 1 MHZ selectable”
  • Power range Meas.: TV 28 to 130 dB_V, SAT 30 to 130 dB_V.
  • Digital Meas: Digital Power, MER (32 to 42 dB depending on modulation), BER, PER, LDPC, PC, BCH, Noise Margin, MER versus CARRIER (opt.).
  • Analog Meas.: Analog level, V/A ratio, Analog Pictures
  • Measurement Resolution: 0.1 dB
  • Level Measurement Accuracy: 1 dB typ. (2 dB max.)
  • Resolution Filter Bandwidth: TV&CATV: 100 KHz @ -3 dB; SAT: 1 MHz or 5 MHz @ -3 dB selectable”
  • Constellation: for TV and SAT signals.
  • Spectrum: Real time, Max Hold and spectrum memorization with real time compare function,
  • Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position.
  • Echoes, Pre-echoes, Micro-echoes: Representation in real Time.
  • Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL.
  • TS: TR 101 290 v1.2.1 ANALYSIS, SI, PMT, bit rate, network delay, MPEG services and tables.
  • IPTV: measurements and picture decoding (opt)

OPTICAL MEASUREMENTS

  • FC-ST-SC interchangeable input connectors
  • Automatic loss calculation
  • Wavelengths (nm): 850,1310, 1490, 1550
  • Range: -25 to 10 dBm
  • Resolution: 0.1 dB
  • Accuracy: +/- 0.5 dB
  • Optical to RF conversion

COMM. PORTS AND OUTPUTS

  • RF Input : 75 ohm (interchangeable “F” )
  • DOCSIS 3.0 and RF: F – Female
  • LAN: RJ45 10/100 base Ethernet
  • USB 2.0: Type B (PC Interface)
  • USB 2.0: Type A (USB drive)
  • Digital Pictures: MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen.
  • Audio: AAC supplied, DOLBY opt.
  • Asynchronous Serial Interface (ASI): ASI input on 75Ω BNC connector, ASI output on 75Ω BNC connector (opt.)
  • Audio / Video: Composite A/V input, HDMI output
  • Common Interface: PCMCIA slot for single/multi-service CAM modules

GENERAL SPECIFICATIONS

  • 10.5” TFT TOUCH display: 16:9 high resolution and high brightness
  • Power Supply: Built in LiPoLI-ion battery with up to 6 hours duration & Battery Test function
  • DC voltage at RF input: 5 – 12 – 18 – 24 V, DiSEqC, SCR.
  • PC Interface: USB
  • Display: Color LCD 9” (480 px x 800 px)
  • Front-Panel: Alpha numeric keypad
  • Power Save: TFT backlight timer, brightness adj.
  • PC Management: SMART software
  • Weight: only 3 Kg with batteries, Size: 323 mm x 175 mm x 60 mm
  • Housing: Aluminium and Steel and padded bag.

ROVER HD PROTAB DRIVETEST bæklingur

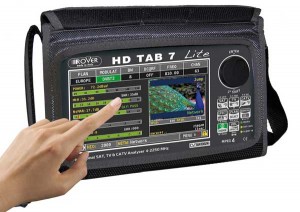

TAB 7 LITE

ROVER_HD_TAB7_LITE_bag_v4_dito_DYN958Sambyggður HD PROFESSIONAL ANALYZER, 4-2.250 MHz, fyrir SAT QPSK/8PSK – TV COFDM & CATV QAM merki, með MPEG-2/4 H264 afkóðun, FM Radio og Analog TV mælingum

DVB-S/S2 & S2M/DVB-T/H & T2 M-PLP/DVB-C (C2 opt.), FM Radio,  Analog TV measures, DOCSIS D.S.

  • TV and CATV TUNER, extended band, 4-1000 MHz;
  • SAT TUNER, extended band, 930-2.250 MHz;
  • GSM extended band, 860-1.000 MHz for telephone repeater installation;
  • Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode;
  • Spectrum in real time, fast and super fast with memory peak;
  • SAT EXPERT function;
  • Detects, measures and SHOWS pictures of MPEG 2 and 4 H264 HD High Definition programs;
  • All the measurements, program lists, A/V PIDs, NET ID, LCN, settings and pictures on one screen;
  • Automatic quality analysis: FAIL-MARG-PASS;
  • Automemory, Manual memory & Datalogger functions;
  • HELP function automatically identifies all the signals with digital modulation SAT, TV and CATV;
  • USB storage memory stick;
  • OPTICAL POWER METER with interchangeable FCST-SC connector for fiber optic testing (FTTH & FTTX) and troubleshooting (opt.);
  • MER versus CARRIER, MER measurement for DVB-T & T2 carriers (opt.)
  • Barscan TV & CATV function from 10 to 100 channels on one screen;
  • TV & IF SAT test ICT FENITEL Spain;
  • Audio AAC supplied, DOLBY (opt.);
  • 7” TFT TOUCH Display, 16:9 with High Resolution;
  • Weighs only 2 kg;
  • Dimension H 14 x L 24 x D 4 cm;
  • LI-ION-Polimer 2.6A battery;
  • 2 hour battery capacity;
  • BATTERY TEST function, to regenerate and measure the batteries and calibrate the battery indicator;
  • Supplied with transport padded bag, accessories, mains and vehicle battery chargers;
  • Free basic SW upgradeable on-line;
  • Reflectometric measurements (opt.);
  • DiSEqC, SCR and DCSS commands;
  • CVBS video input.

Samanburður á mælunum frá ROVER

Video hér:

 https://www.youtube.com/watch?v=mjNzaTDTYMc

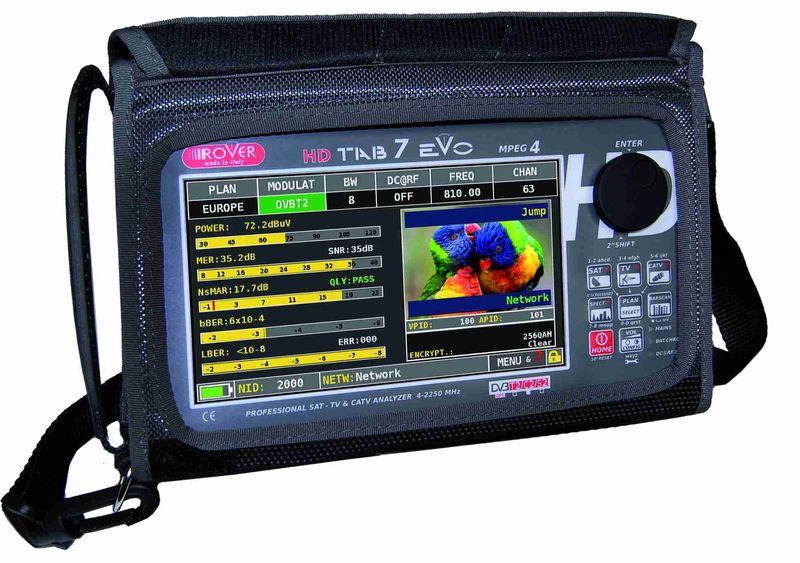

HD TAB 7 EVO

Sambyggður PROFESSIONAL ANALYZER, 4-2.250 MHz, fyrir SAT QPSK/8PSK – TV COFDM & CATV QAM merki, með MPEG-2/4 H264 decoder og Analog mynd, TV & Radio

DVB-S/S2 & S2M/DVB-T/H (& T2 M-PLP opt.)/DVB-C (C2 opt.), Analog Radio TV & DOCSIS D.S.

  • ROVER_HD_TAB_7_EVO_800xTV and CATV TUNER, extended band, 4-1000 MHz
  • SAT TUNER, extended band, 930-2.250 MHz
  • GSM extended band, 860-1.000 MHz for telephone repeater installation
  • Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode
  • Spectrum in real time, fast and super fast with memory peak
  • Detects, measures and SHOWS pictures of MPEG 2 and 4 H264 HD High Definition programs
  • All the measurements, program lists, A/V PIDs, NET ID, LCN, settings and pictures on one screen
  • Automatic quality analysis: FAIL-MARG-PASS
  • Automemory, Manual memory & Datalogger functions
  • HELP function automatically identifies all the signals with digital modulation SAT, TV and CATV
  • USB storage memory stick
  • OPTICAL POWER METER opt. with interchangeable FCST-SC connector for fiber optic testing (FTTH & FTTX) and troubleshooting
  • MER versus CARRIER, MER measurement for DVB-T & T2 carriers opt.
  • Barscan TV & CATV function from 10 to 100 channels on one screen
  • TV & IF SAT test ICT FENITEL Spain
  • Audio, AAC supplied, DOLBY opt.
  • 7” TFT TOUCH display, 16:9, high resolution
  • Weighs only 1.6 kg, dim: H 14 x L 24 x D 4 cm
  • LI-ION-POLIMER 4A battery with 4 hour battery capacity
  • Battery test function, to regenerate and measure the batteries and calibrate the battery indicator
  • Supplied with transport padded bag, accessories, mains and vehicle battery chargers
  • Free basic SW upgradeable on-line
  • Remote monitoring
  • Reflectometric measurements (opt.)

Meira hér

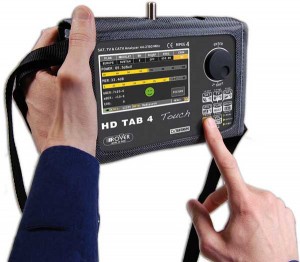

HD TAB 4 Touch
ROVER_HD_TAB_4_TOUCH_bag_dito_DYN947ULTRA-PORTABLE, ALL-IN-ONE, PROFESSIONAL ANALYZER, 4–2.250 MHz fyrir SAT QPSK/8PSK–TV COFDM & CABLE QAM merki

MEASUREMENTS & SPECTRUM ANALYSIS

  • Frequency Range: TV 44 to 880 MHz, SAT 930 to 2.150 MHz. Level accuracy: 3 dB;
  • Input Impedance: 75 ohm (interchangeable “F” connector);
  • Power range MEAS.: TV 10 to 100 dBµV, SAT 28 to 92 dBµV, 120 dBµV with ext. attenuator;
  • Fast spectrum with MAX HOLD: full spect. capabilities with memory peak, variable span and automatic reference level,
  • Meas: All digital and analog measurements, see related table below;
  • Quality: Auto quality Test;
  • TV Memory plan: World Wide countries with related channels plans pre-memorized;
  • SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite.

https://www.youtube.com/watch?v=bupCTbAUlsE

ROVER_HD_TAB_4_TOUCH_mano_dito_DYN952GENERAL SPECIFICATIONS

  • DC voltage at RF input: 5-12-18-24 V (max. 120 mA);
  • Battery: Rechargeable Li-Po battery pack, 2/3 hour duration;
  • Power supply & Battery charger: 12/18 Vdc;
  • USB PC Interface: For SW upgrade and memory plan managment;
  • Housing: Metal box and rain proof bag;
  • Size: H 12 x W 18 x D 4,5 cm (meter only);
  • Weight: 1 Kg.

Meira hér

Það hefur aldrei verið eins einfalt og nákvæmt:

vel gert verk á 3 sekúndum, allavega mælingin!

Automatically Stores all channels of your city, checks
the best antenna pointing and analyzes the result of your work
by measuring the quality and power up-to 140 channels in blocks of 8 channels.

Main Specifications

MEASUREMENTS & SPECTRUM ANALYSIS

  • Frequency Range: 44 MHz to 880 MHz.
  • Input Impedance: 75 ohm (interchangeable “F” connector).
  • Power range MEAS.: 10 to 100 dBµV; 120 dBµV with ext. attenuator.
  • Fast spectrum with MAX HOLD: Full spect. capabilities with peak memory, variable span and automatic reference level.
  • Meas: All digital and analog measurements, see table below.
  • Quality FAIL – MARGINAL – PASS: Measuring the quality and the power up-to 140 CHs in blocks of 8 Digital or Analog channels simultaneously.
  • Barscan: TV analog and digital bars scan form 10 to 100 channels.
  • Memory plan: World Wide countries with related channels plans are pre-memorized.

https://www.youtube.com/watch?v=yepi6bgraPQ&feature=youtu.be



GENERAL SPECIFICATIONS

  • DC voltage at RF input: 5Vdc.
  • Battery: Rechargeable Li-Po battery pack, 5 hour duration.
  • USB Micro: For battery charge and PC interface for SW up-grade and memory plan management.
  • Housing: Metal box and rain proof bag.
  • Size: H 95 x W 160 x D 34 mm (meter only).
  • Weight: 500 gr.
